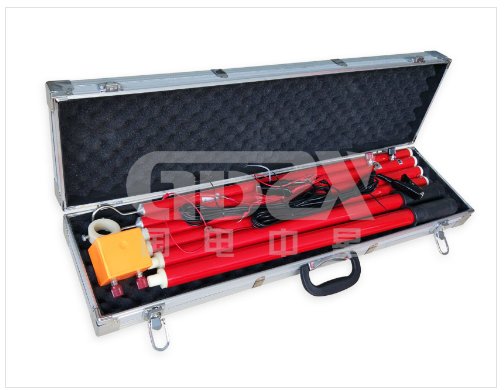

FRD High Voltage Phase Detector: Precision Tool for PowerSystemPhaseVerification

Introduction

Phase checking is a critical, high-risk, yet indispensable task in power system operations. Ensuring phase consistency across circuits directly safeguards grid stability, equipment longevity, and personnel safety. The FRD Wired High Voltage Phase Check Instrument addresses these challenges with cutting-edge technology, redefining accuracy and efficiency in phase verification.

Working Principle: Metal Film Step-Down Technology

The FRD detector leverages the step-down principle for metal film. By observing the instrument’s pointer, operators can instantly determine whether phases are identical. Beyond phase verification, the device integrates two vital functions:

1.High-voltage testing: Validates the integrity of high-voltage circuits.

2.Grounding fault detection: Identifies hidden grounding issues to prevent system failures.

Core Features

1.Intelligent Phase Verification
Regardless of phase consistency, the instrument provides language and light prompts—eliminating ambiguity and ensuring clear operational guidance.

2.Self-Check with Low Voltage
The “Wired High Voltage Phase Check Instrument” supports self-diagnostics using 220V or 380V low voltage. This feature verifies the detector’s functionality before high-voltage operations, minimizing risks.

3.Automatic Power Switching
Built-in automatic power management enables convenient operation while conserving energy—ideal for field deployments with limited power resources.

Technical Specifications

The FRD series caters to diverse voltage grades (3kV, 6kV, 10kV, 35kV, 66kV, 110kV), with technical indicators optimized for each tier:

Note: Weight and insulation withstand voltage scale with voltage grade to ensure safety and portability. For example, the 110kV model balances a 3.2kg weight with a 330kV insulation rating—critical for handling ultra-high-voltage scenarios.

Conclusion

The FRD High Voltage Phase Detector merges innovation with practicality, delivering unmatched precision in phase verification, fault detection, and operational safety. Its tailored technical specifications and user-centric features make it a cornerstone for modern power system maintenance—enabling engineers to tackle high-risk tasks with confidence and efficiency.

 GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
