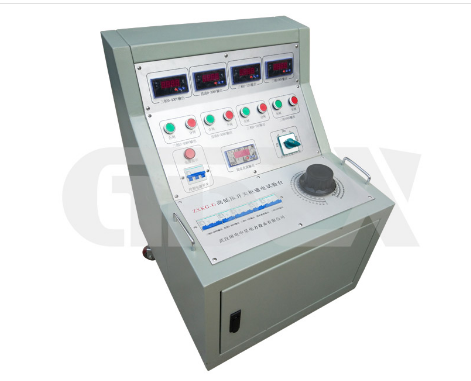

Technical Application and Analysis of ZXKG-G HV-LV Switchgear Power Test Set

1. Introduction

In the factory inspection and on-site commissioning of high-voltage (HV) and low-voltage (LV) switchgears, a reliable power test device is the core foundation for ensuring the electrical performance and operational safety of products. The ZXKG-G HV-LV Switchgear Power Test Set is specially designed for switchgear manufacturers. It can provide various types of AC and DC power outputs, efficiently complete the verification of various electrical performances before products leave the factory, and serves as a standardized testing tool in the field of power complete equipment inspection.

2. Core Functions and Application Scenarios

The ZXKG-G power test set is mainly oriented to HV and LV switchgear manufacturers for various power-on tests before product delivery. Its core values are:

Providing a full range of AC and DC power outputs to cover the conventional electrical test requirements of switchgears;

Enabling efficient and convenient equipment status detection to quickly verify the electrical functions and operational reliability of switchgear equipment;

Offering a standardized testing platform for the factory quality control of switchgears, reducing the risk of on-site failures.

This device can be widely used in factory inspection, type tests, and on-site maintenance tests of HV and LV complete switchgears and distribution devices, acting as key testing equipment in the production and operation and maintenance of power complete equipment.

3. Analysis of Key Technical Features

3.1 Intuitive Measurement and High-Precision Performance

The device adopts digital display technology, which can intuitively display key parameters such as test current, voltage, and power factor in real time, avoiding reading errors of traditional pointer meters. Meanwhile, it has high-precision measurement capability, ensuring the accuracy and traceability of test data and providing a reliable basis for the performance evaluation of switchgears.

3.2 Perfect Circuit Protection Mechanism

To ensure the safety of the testing process, the device adopts a circuit-specific air switch protection design. Each output circuit is equipped with an independent air switch as an overload and short-circuit protection unit, which can quickly cut off the faulty circuit under abnormal working conditions, avoiding damage to the tested switchgear or testing equipment and improving the safety of test operations.

3.3 Portable Structure Design

Compared with similar products, the ZXKG-G device has the advantages of miniaturization and light weight. The overall dimensions are 550 × 750 × 800 mm, and the weight is only 45 kg, which is convenient for handling and deployment between different scenarios such as production workshops and test sites, adapting to multi-station testing requirements.

4. Analysis of Core Technical Indicators

4.1 Input Power

The device adopts three-phase four-wire AC380V industrial power input, which is compatible with the mainstream industrial power distribution environment in China and ensures stable power supply.

4.2 Multi-Type Output Configuration

The device provides 8 groups of differentiated power outputs, which can cover the full-scenario requirements of switchgear testing:

Fixed three-phase AC100V output: Used for power supply testing of low-voltage control circuits and relay protection devices;

Adjustable three-phase AC 0-10A output (voltage <100V): Suitable for variable current testing of low-power loads;

AC 0-400V/≤10A output: Can simulate power distribution conditions of different voltage levels to verify the voltage adaptability of switchgears;

DC 0~260V adjustable output: Used for power-on testing of DC control circuits and energy storage mechanisms;

Fixed single-phase AC220V socket-type output: Provides a convenient power supply interface for auxiliary equipment and instruments;

Fixed three-phase AC380V terminal-type output: Simulates the main circuit high-voltage power distribution condition to verify the on-off and insulation performance of the main circuit;

Fixed DC 24V/36V/11V/220V output: Covers the testing requirements of different DC control voltage levels;

Physical parameters: Overall dimensions of 550 × 750 × 800 mm and weight of 45 kg, balancing structural strength and portability.

5. Summary of Application Value and Technical Advantages

The ZXKG-G HV-LV Switchgear Power Test Set provides an efficient, safe, and standardized testing solution for power complete equipment manufacturers through multi-type power output, high-precision measurement, complete protection, and portable design:

Improving test efficiency: One-stop coverage of various AC and DC test scenarios, reducing equipment switching time;

Ensuring test safety: The circuit-specific protection mechanism reduces the risk of fault diffusion;

Enhancing data reliability: Digital high-precision measurement improves the credibility of test results;

Optimizing deployment flexibility: Lightweight design adapts to multi-scenario testing requirements.

This device is the core equipment for the factory quality control of HV and LV switchgears, and has important technical value for improving the reliability of power complete equipment and ensuring the safe operation of power grids.
