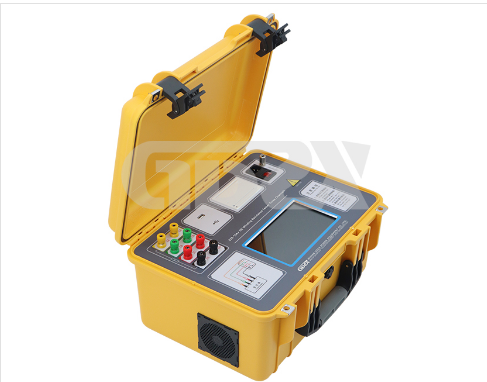

ZXR-10A+ 3-Ch DC Winding Resistance Tester: Technical Overview for PowerIndustry

1. Introduction

DC winding resistance testing is a critical diagnostic procedure for power transformers, generators, and other inductive electrical equipment. It serves to detect short-circuited turns, loose connections, poor contact points, and other winding defects that could compromise equipment reliability and safety. The ZXR-10A+ DC Winding Resistance Tester (Three Channels) is a specialized instrument designed to address the growing demand for efficient, accurate, and multi-mode testing in modern power systems. This article provides a detailed technical overview of the ZXR-10A+, focusing on its operational principles, key features, technical specifications, and practical applications in the power industry.

2. Core Functional Principle

The ZXR-10A+ operates on the principle of the four-wire (Kelvin) DC resistance measurement method, which eliminates the influence of test lead resistance and contact resistance to ensure high-precision results. Unlike single-channel testers, its three-channel architecture allows simultaneous energization and measurement of three independent circuits, significantly reducing test time for three-phase equipment.

By applying a stable DC current to the winding under test and measuring the resulting voltage drop, the instrument calculates the DC resistance using Ohm’s Law (R=V/I). The built-in microprocessor automatically processes the data, compensates for temperature variations (where applicable), and presents the final resistance values, along with calculated unbalance rates between phases or windings.

3. Key Technical Features

The ZXR-10A+ incorporates several advanced design features tailored to the needs of power system maintenance and commissioning engineers:

3.1 Advanced Power Supply Technology

The instrument utilizes a new switching power supply design, characterized by low output ripple, excellent stability, and high power density. This ensures a clean, constant DC test current, even under varying load conditions, which is essential for accurate low-resistance measurements.

3.2 Multi-Mode Measurement Capability

To accommodate different transformer winding configurations and test requirements, the ZXR-10A+ supports multiple measurement modes:

Three-loop measurement (YN configuration): Optimized for star-connected transformers with a neutral point.

Three-phase auto measurement: Fully automated sequence for three-phase windings.

Three-line auto measurement (Y, Δ configurations): Suitable for both star and delta-connected transformers.

Traditional single-phase measurement: For individual winding or component testing.

This versatility makes it a universal tool for a wide range of power transformers, including YN, Y, and Δ types.

3.3 High Signal Integrity and Anti-Interference Performance

The tester employs a low-noise signal conditioning circuit and robust anti-interference algorithms, enabling reliable measurements even in electrically noisy substation environments. This ensures that test data remains accurate and repeatable, a critical factor for condition assessment and trend analysis.

3.4 Comprehensive Protection Mechanisms

The ZXR-10A+ is equipped with perfect protection functions, including over-current, over-voltage, and reverse polarity protection. These safeguards protect both the instrument and the equipment under test from accidental damage during operation, a vital consideration in high-voltage power systems.

3.5 Portable and User-Friendly Design

Despite its high performance, the instrument features a compact, lightweight structure (11 kg, excluding test leads), making it easily transportable to field sites. The English-language interface with menu tip functions simplifies operation, reducing the learning curve for technical personnel and minimizing human error.

3.6 Flexible Current Selection

The tester offers multiple selectable test currents, providing a wide measurement range to suit different winding resistances. This flexibility ensures optimal measurement resolution and accuracy across various equipment sizes and types.

4. Technical Specifications

The following table summarizes the key technical indicators of the ZXR-10A+ DC Winding Resistance Tester:

表格

5. Application in the Power Industry

The ZXR-10A+ is ideally suited for the following key applications in power system maintenance and engineering:

Transformer Commissioning: Verifying the integrity of new transformer windings before energization.

Periodic Maintenance Testing: Monitoring changes in winding resistance over time to detect incipient faults.

Post-Fault Analysis: Identifying the location and nature of winding damage after a failure.

Quality Control in Manufacturing: Ensuring consistency and compliance of transformer windings during production.

Its three-channel capability drastically reduces the time required for three-phase transformer testing, a significant advantage in time-sensitive outage situations.

6. Conclusion

The ZXR-10A+ Three-Channel DC Winding Resistance Tester represents a significant advancement in DC winding resistance measurement technology for the power industry. By combining high precision, multi-mode functionality, robust protection, and user-friendly operation, it provides power system technicians and engineers with a reliable and efficient tool for condition assessment and predictive maintenance of critical inductive equipment. Its ability to simultaneously test three circuits makes it particularly valuable for modern power transformers, directly contributing to improved grid reliability and reduced operational downtime.
