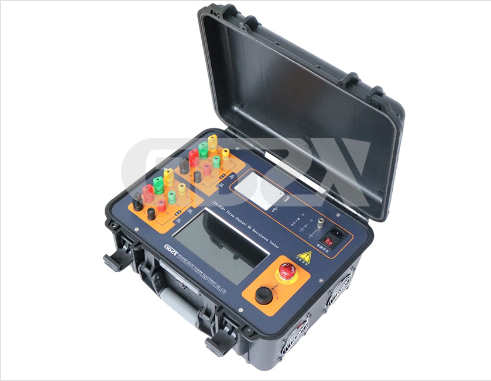

Technical Overview of ZXR-20A+ Three-Channel DC Resistance Tester

Abstract

This paper presents a comprehensive technical analysis of the ZXR-20A+ Three-Channel DC Resistance Tester, a specialized instrument optimized for high-precision winding resistance measurement of power transformers. The device enables simultaneous three-phase testing, supports multiple measurement modes for transformers with YN, Y, and Δ winding configurations, and integrates advanced power supply technology, high-stability signal acquisition, and comprehensive protection mechanisms. This article elaborates on its core technical features, critical specifications, field application scenarios, and operational advantages, serving as a technical reference for power industry engineers and technicians engaged in transformer testing, maintenance, and fault diagnosis.

Introduction

Power transformers are the core equipment in power transmission and distribution systems, and their operational reliability directly determines the safety and stability of the entire power grid. Winding DC resistance testing is a mandatory and fundamental item in transformer factory routine tests, on-site handover tests, and periodic preventive maintenance. This test can effectively identify critical defects such as winding inter-turn short circuits, loose connector contacts, broken lead wires, and abnormal contact status of on-load tap changers, which are undetectable by most conventional non-destructive testing methods.

Traditional single-channel DC resistance testers require phase-by-phase testing with repeated wiring and disassembly operations, leading to extremely low test efficiency, especially for large-capacity power transformers with long magnetic saturation time. In addition, repeated wiring operations introduce additional contact resistance errors, reducing the consistency and reliability of test data. To address these industry pain points, the ZXR-20A+ Three-Channel DC Resistance Tester adopts a three-channel synchronous measurement architecture, which greatly improves test efficiency and accuracy while retaining compatibility with conventional test modes, making it an ideal solution for modern transformer resistance testing.

Core Technical Features

The ZXR-20A+ integrates multiple advanced technologies optimized for transformer on-site testing, with core technical features as follows:

High-Performance Switching Power Supply TopologyThe instrument adopts a new generation of high-efficiency switching power supply technology, which achieves low output ripple, excellent long-term working stability, and high power density. This design ensures rapid establishment of rated test current in the inductive transformer winding load, effectively shortening the magnetic saturation time of large-capacity transformers, and significantly improving test efficiency without compromising measurement stability.

Diversified Measurement Modes for Full Compatibility of Transformer WiringUnlike conventional single-phase testers with limited test modes, the ZXR-20A+ provides a full set of measurement solutions to adapt to transformers with YN, Y, and Δ winding configurations. It supports simultaneous three-loop measurement for YN-connected transformers, three-phase automatic measurement, three-line automatic measurement for Y and Δ-connected transformers, and traditional single-phase measurement. The three-channel synchronous function enables one-time completion of three-phase resistance data acquisition without repeated wiring changes, eliminating human operation errors and greatly simplifying the test process.

High-Precision, Anti-Interference Signal Acquisition SystemThe test signal acquisition circuit adopts a high-resolution differential amplification architecture with multi-stage digital filtering and optimized electromagnetic compatibility (EMC) design. This enables the instrument to achieve extremely low background noise and strong anti-interference performance, ensuring stable, repeatable, and reliable test data even in the complex strong electromagnetic interference environment of substations and power plants, avoiding misjudgment of equipment defects caused by data drift.

Comprehensive Safety Protection MechanismsThe instrument is equipped with a full set of protection functions, including overcurrent protection, overvoltage protection, reverse polarity protection, and dedicated inductive load fast discharge protection. The discharge circuit can safely and rapidly release the energy stored in the transformer winding after the test, effectively preventing induced overvoltage from damaging the instrument and endangering the safety of on-site operators, which is critical for high-voltage transformer test scenarios.

Compact and Portable Design for Mobile Field WorkWith an optimized integrated compact structure, the instrument has a volume of only 380×180×320mm³ and a net weight of 11kg (excluding test leads). Its small size and light weight make it easy to transport and transfer between different test points in substations, power plants, and distribution networks, fully adapting to the needs of mobile on-site maintenance work.

Wide Test Range with Multiple Current OptionsThe instrument provides rich and flexible current output options to meet the test requirements of transformers with different capacity levels. It offers four gear single-phase output currents (40A, 20A, 10A, 1A) and three gear three-phase synchronous output currents (20A+20A, 10A+10A, 1A+1A), covering a wide resistance measurement range to adapt to various test scenarios.

User-Friendly English Operation InterfaceThe instrument is designed with a full English operation interface and clear menu prompt functions, featuring an intuitive human-computer interaction logic. This design greatly reduces the learning threshold for on-site technicians, effectively avoids misoperation, and enables even inexperienced operators to complete standard test procedures quickly and accurately.

Key Technical Specifications

The critical performance parameters of the ZXR-20A+ Three-Channel DC Resistance Tester comply with international and industry standards for transformer testing, with detailed indicators as follows:

Single-phase output current: 4 adjustable gears (40A, 20A, 10A, 1A)

Three-phase synchronous output current: 3 adjustable gears (20A+20A, 10A+10A, 1A+1A)

Measurement resolution: 0.1μΩ

Measurement range:

0.2mΩ-1Ω (40A single-phase output)

0.5mΩ-2Ω (20A single-phase output)

10mΩ-4Ω (10A single-phase output)

2Ω-20Ω (1A single-phase output)

0.2mΩ-1Ω (20A+20A three-phase output)

0.5mΩ-2Ω (10A+10A three-phase output)

2Ω-10Ω (1A+1A three-phase output)

Measurement accuracy: 0.2% of full scale

Operating environment: Temperature 0～40℃, relative humidity <90%RH (non-condensing)

Working power supply: AC220V±10%, (50±1)Hz

Dimensions: 380×180×320mm³

Net weight: 11kg (excluding test leads)

Primary Application Scenarios in the Power Industry

The ZXR-20A+ is widely applicable to various test scenarios in the power industry, providing reliable technical support for the full life cycle management of power transformers:

Transformer Factory Routine and Delivery Tests: For mass production of distribution and power transformers, the three-channel synchronous measurement function can greatly shorten the test cycle, improve production efficiency, and ensure the consistency of factory test data.

Grid Handover and Commissioning Tests: Before new transformers are connected to the power grid, the instrument can complete high-precision winding resistance testing quickly, verifying that the equipment meets grid access standards and eliminating potential defects before commissioning.

Periodic Preventive Maintenance: In the regular maintenance of in-service transformers in substations, power plants, and new energy stations, the instrument can efficiently complete three-phase resistance testing, timely identifying early defects such as poor contact of tap changers and loose winding joints to prevent unplanned power outages.

Transformer Fault Diagnosis and Analysis: For transformers with abnormal operating conditions, the high-resolution and high-accuracy measurement capability of the instrument can provide accurate resistance data, providing a reliable basis for fault location, root cause analysis, and maintenance scheme formulation.

Competitive Advantages Over Conventional Test Instruments

Compared with traditional single-channel DC resistance testers, the ZXR-20A+ has significant technical and operational advantages:

Dramatically Improved Test Efficiency: The three-channel synchronous measurement function eliminates the need for repeated wiring and disassembly between phase tests, reducing the total test time by more than 60% compared with conventional single-phase testers, especially for large-capacity transformers with long magnetic saturation time.

Higher Measurement Accuracy and Data Consistency: One-time wiring for full three-phase measurement avoids the introduction of variable contact resistance errors caused by repeated wiring operations, ensuring the consistency and comparability of test data under different test cycles.

Stronger On-Site Adaptability: The optimized anti-interference design, compact size, and light weight enable the instrument to adapt to various complex on-site test environments, from indoor laboratory environments to outdoor substations with harsh conditions.

Enhanced Operational Safety: The comprehensive protection mechanism, especially the dedicated inductive load discharge protection, ensures the safety of on-site operators and test equipment throughout the test process, eliminating the risk of induced overvoltage damage.

Conclusion

The ZXR-20A+ Three-Channel DC Resistance Tester is a professional, high-efficiency, and high-reliability test instrument tailored for the power industry. It integrates advanced switching power supply technology, high-precision signal acquisition, multi-mode test functions, and comprehensive safety protection mechanisms, effectively solving the core pain points of low efficiency, complex operation, and poor anti-interference performance of conventional testers in transformer winding resistance testing.

With its excellent technical performance, wide application adaptability, and user-friendly operation design, the ZXR-20A+ has become an essential tool for power industry technicians engaged in transformer testing, maintenance, and fault diagnosis. It can effectively improve test efficiency, enhance the early detection rate of potential transformer defects, and provide strong technical support for the safe, stable, and reliable operation of power transmission and distribution systems.
