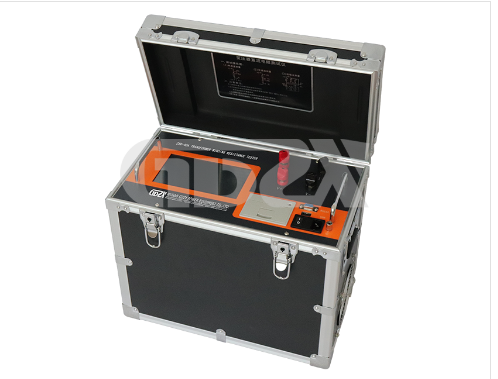

ZXR-40A: Technical Overview for Power Industry Applications ​

Abstract

This paper provides a systematic technical introduction to the ZXR-40A Transformer Winding Resistance Tester, a specialized high-precision measurement instrument developed for power system scenarios. It elaborates on the instrument’s core design architecture, key technical features, critical performance specifications, and practical application value in transformer condition assessment, serving as a technical reference for power engineers, test technicians and maintenance personnel in both laboratory and field operations.

1. Introduction

Power transformers are the core equipment in power generation, transmission and distribution networks, and their operational reliability directly determines the safety and stability of the entire power grid. DC resistance measurement of transformer windings is a mandatory and critical test item in factory inspection, handover acceptance, and preventive maintenance routines. This test can effectively identify latent defects including inter-turn short circuits, loose connection joints, poor contact of tap changers, and winding strand breakage, which are often undetectable by conventional insulation tests.

However, traditional winding resistance testers have long faced common pain points in field power applications: insufficient output current for large and medium-sized transformers, low test efficiency, vulnerability to back electromotive force (back EMF) impacts, high risk of misoperation during discharge, and poor adaptability to complex on-site electromagnetic environments. To address these technical challenges, the ZXR-40A Transformer Winding Resistance Tester, integrated with advanced power electronics and intelligent control technologies, dlivers a high-performance, safe and user-friendly solution for power industry technical personnel.

2. Core Design and Control Architecture

The ZXR-40A tester adopts a full-digital control architecture centered on a high-speed single-chip microcomputer (SCM), realizing full-process automation of measurement, data acquisition and processing, discharge control, and safety protection. This design ensures a high level of automation, minimizing manual intervention and human error in testing operations.

Unlike traditional linear power supply solutions, the instrument applies advanced high-frequency switching power supply technology, which achieves a maximum output current of up to 40A while maintaining a compact structure and light weight. This design breaks the traditional trade-off between high current output and portability, making it suitable for both fixed laboratory calibration and mobile field testing in substations and power plants.

In addition, the instrument is equipped with intelligent power management technology, which dynamically adjusts operating power according to real-time load conditions, keeping the device in the minimum power consumption state throughout the working process. This design effectively reduces internal heat generation of the instrument, extends its service life, and meets the energy-saving requirements of long-term field operations.

3. Key Technical Features for Power Industry Scenarios

3.1 High Adaptability for Transformer Testing

With a maximum output current of 40A and multi-gear current options (2.5A, 5A, 10A, 20A, 40A), the tester is fully compatible with the DC resistance measurement requirements of both small distribution transformers and large and medium-sized power transformers. Its strong anti-interference capability ensures excellent measurement repeatability even in the strong electromagnetic environment of live substations, guaranteeing the reliability of on-site test data.

3.2 Comprehensive Safety and Protection Mechanisms

The instrument has a complete protection system, with a core back EMF suppression circuit that can reliably absorb the surge voltage generated by the inductive load of transformer windings during power-off and discharge, effectively preventing permanent damage to the instrument from inductive impact. It is also equipped with an audible discharge alarm and clear visual discharge indication, providing real-time feedback on the discharge state to technicians, greatly reducing the risk of misoperation caused by incomplete discharge, a major safety hazard in winding resistance testing. The built-in automatic discharge function further enhances the safety of the entire test process.

3.3 High-Efficiency Field Operation Optimization

The tester features an ultra-fast response speed, supporting direct conversion of the load tap switch in the measurement state, with automatic data refresh capability. For multi-tap transformers, technicians do not need to interrupt the measurement, discharge and re-charge the winding when switching tap positions, which greatly shortens the test cycle and improves work efficiency, especially for transformers with a large number of tap positions. The vertical chassis structure is specially optimized for on-site use, with excellent mechanical stability and environmental adaptability for harsh substation conditions.

3.4 User-Friendly Human-Machine Interaction

The instrument is equipped with a dot-matrix liquid crystal display, full English operation menu, and built-in print output function, which supports clear data reading, convenient parameter setting, and on-site test report generation, fully meeting the standardized test record management requirements of the power industry. With a high measurement accuracy and simple operation process, it can be quickly mastered by field technicians without complex professional training.

4. Critical Technical Specifications

The core performance parameters of the ZXR-40A Transformer Winding Resistance Tester are shown below, which fully comply with the relevant test standards of the power industry:

Output Current Options: 2.5A, 5A, 10A, 20A, 40A

Measurement Range:

50μΩ～500mΩ (40A gear)

100μΩ～1Ω (20A gear)

500μΩ～2Ω (10A gear)

1mΩ～4Ω (5A gear)

2mΩ～8Ω (2.5A gear)

Measurement Accuracy: 0.2%

Resolution: 0.1μΩ

Operating Temperature Range: 0～40℃

Environmental Humidity Tolerance: ≤90%RH

Working Power Supply: AC220V±10%, 50Hz±1Hz

Net Weight: 13kg

Dimensions: 440×240×390mm

The 0.2% measurement accuracy and 0.1μΩ high resolution enable the instrument to accurately capture tiny changes in winding resistance, supporting early detection of incipient defects in transformers. The wide current and range coverage meets the test requirements of almost all mainstream power transformers and distribution transformers in the power grid.

5. Practical Application Value in Power Industry

In the daily operation and maintenance of power systems, the ZXR-40A tester plays an irreplaceable role in multiple core scenarios. For transformer manufacturers, it is applicable to factory type tests and routine tests to verify the welding quality of winding joints and the consistency of winding resistance, ensuring the delivery quality of transformers. For power grid enterprises, it is an essential tool for handover tests after transformer installation and regular preventive maintenance tests, helping technicians identify latent defects before they develop into serious faults, thus reducing unplanned outages and improving power supply reliability.

In particular, for on-load tap changers, which are the most frequently moving components of power transformers with a high failure rate, the instrument’s capability of direct tap conversion during measurement greatly improves the efficiency of contact resistance detection for each tap position. The high repeatability of measurement results also ensures the accuracy of trend analysis of winding resistance changes over the transformer’s service life, providing a reliable data basis for condition-based maintenance of power transformers.

6. Conclusion

The ZXR-40A Transformer Winding Resistance Tester integrates advanced high-speed digital control, high-frequency switching power supply, and comprehensive safety protection technologies, effectively solving the key pain points of traditional winding resistance measurement in power industry applications. With its high output current, wide measurement range, high precision, perfect protection functions, and field-friendly design, it provides a reliable, efficient and safe measurement solution for power industry technical personnel. The instrument can significantly improve the efficiency and accuracy of transformer winding resistance testing, support accurate condition assessment and fault diagnosis of power transformers, and thus contribute to the long-term safe and stable operation of power systems.
