ZX-602: Handheld Message Analyzer for Smart Substation Testing

Introduction

The global power grid is rapidly evolving toward smart substations, where digital communication standards like IEC 61850 enable seamless interoperability between protection relays, merging units, and intelligent terminals. As these systems grow more complex, field technicians require portable, high-precision tools to streamline installation, debugging, and maintenance. The ZX-602 Handheld Messages Analyzer addresses this need, delivering multi-functional, lab-grade performance in a compact, rugged form factor tailored for on-site substation testing.

Product Overview

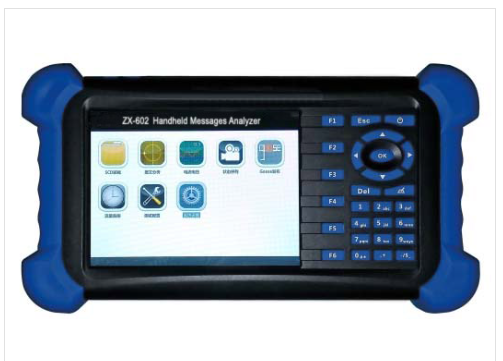

The ZX-602 is a specialized test instrument designed to verify the performance of core smart substation equipment, including protection devices, intelligent terminals, merging units, and transducers. Combining multi-protocol support, high-precision timing, and field-ready portability, it has become essential equipment for commissioning and maintaining digital power systems. Its compact design eliminates reliance on bulky lab-based tools, enabling comprehensive testing directly at the substation site.

Core Features & Technical Capabilities

The ZX-602 integrates industry-leading features to meet the rigorous demands of smart substation testing:

1. Versatile Communication Interfaces

The analyzer supports diverse substation communication needs with a full suite of optical and electrical ports:

Optical Ethernet Interfaces: 3 pairs of 100/1000 Mbps self-adaptive LC ports (multi-mode, 1310 nm) with single-mode fiber compatibility, supporting IEC 61850-9-1/2/LE, Goose, and IEEE 1588 protocols.

Optical Serial Interface: 1 pair of 2–10 Mbps LC ports (multi-mode, 850 nm) compliant with IEC 60044-7/8 FT3, Manchester code, and asynchronous serial transmission.

Synchronous Interfaces: 1 IRIG-B/PPS optical port (LC, multi-mode, 850 nm) for high-accuracy time synchronization.

Auxiliary Interfaces: 2-channel hard switching inputs, 4-channel hard switching outputs, a 100 Mbps electrical Ethernet port (RJ-45), and USB connectivity for data import/export.

2. Comprehensive Protocol Support

The device supports all major digital substation standards, ensuring compatibility with nearly all field-deployed equipment:

IEC 61850-9-1/2/LE, Goose, MMS

IEC 60044-7/8 FT3

IEEE 1588 (PTP), IRIG-B, PPS

STNP, GRMP, and SCL standards

3. High-Precision Performance

Powered by an A9+FPGA dual-core industrial PC (IPC) architecture, the ZX-602 delivers timing accuracy critical for substation operations:

Message sending dispersion: < 0.1 µs

Receiving time accuracy: < 25 ns

IEEE 1588 time-synchronization accuracy: < 80 ns

IRIG-B/PPS synchronization accuracy: < 400 ns

These specifications ensure reliable testing of time-sensitive processes like sampled value transmission and protection trip logic.

4. Field-Ready Design

Engineered for harsh substation environments, the ZX-602 prioritizes usability and durability:

5.7-inch capacitive multi-touch screen for intuitive operation and real-time graphical display of electrical parameters.

Built-in 11,000 mAh rechargeable lithium battery, providing over 6 hours of continuous operation.

Compact dimensions (250 × 140 × 44 mm) and weight < 1 kg, making it highly portable for on-site use.

USB storage support for seamless data logging and post-test analysis.

Key Applications

The ZX-602 serves as a versatile tool for critical smart substation workflows:

Commissioning & Installation: Verify interoperability between protection devices, merging units, and intelligent terminals during substation deployment.

Process-Level Testing: Validate sampled value (SV) and GOOSE message transmission between merging units and bay-level devices.

Maintenance & Troubleshooting: Diagnose communication errors, timing issues, and device performance to minimize downtime.

Intelligent Terminal Response Testing: Use hard switching inputs/outputs to validate terminal responses to protection signals.

Conclusion

As smart substations expand globally, the need for reliable, portable test equipment has never been greater. The ZX-602 Handheld Messages Analyzer meets this challenge by combining multi-protocol support, high-precision timing, and rugged portability in a single device. Its ability to test all core digital substation equipment makes it an indispensable tool for power system technicians, streamlining workflows and ensuring the reliability of modern digital power grids.

 GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
