ZX-802: A Versatile Solution for Relay Protection Testing in Power Systems
In the power industry, the reliable performance of relay protection devices is the cornerstone of grid stability and operational safety. These critical systems must respond accurately to faults to prevent equipment damage and widespread outages—making rigorous, precise testing of these relays non-negotiable. The ZX-802 Microcomputer Relay Protection Tester is engineered to meet these demands, combining robust hardware design, flexible testing capabilities, and high-precision performance to serve as a trusted tool for power system protection validation.
1. System Architecture and User-Centric Design

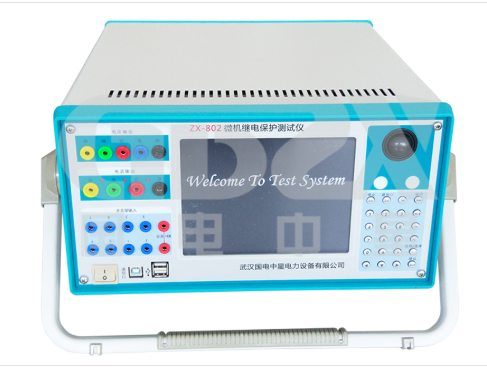

At its core, the ZX-802 leverages a high-performance Industrial Personal Computer (IPC) as its host controller, paired with the stable Windows XP operating system—a proven platform for industrial testing applications. The device features a large-format color TFT display on its front panel, providing clear, real-time visualization of test parameters, progress, and results. Complementing this intuitive interface are multiple USB ports on the front panel, enabling seamless data access, communication, and software upgrades. This design streamlines workflow and simplifies maintenance, making the tester suitable for both laboratory and field environments.
2. Core Testing Capabilities
The ZX-802 is built with flexible, user-centric testing features to accommodate diverse relay protection scenarios, ensuring comprehensive validation of device performance:
Customizable Variable Configuration: Users can define voltage or current values as test variables, allowing tailored setups to match the specific requirements of different protection relays.
Multi-Mode Operation: Three selectable testing modes—manual operation, semi-automation, and full-automation—support comprehensive testing of action values and return values, adapting to varying test complexity and operator preferences.
Comprehensive Timing and Analysis: The tester efficiently measures action time and return time for all voltage and current protection schemes, with automatic calculation of the return factor to simplify post-test analysis.
Standardized Workflow: The widely used “four-phase voltage and three-phase current” configuration serves as the primary operational framework, with other test units following a similar intuitive workflow. This consistency reduces operator learning curves and ensures reliable, repeatable test execution.
3. Key Technical Specifications
The ZX-802 delivers precise, high-power outputs to simulate real-world power system conditions, with specifications tailored for comprehensive protection testing:
表格
Parameter Category | Key Specifications |
AC Current Output | - Phase: 0~40A (effective value, 0.2° precision)- 3-phase parallel: up to 120A- Continuous rating: 10A/phase; max power: 420VA/phase, 900VA (parallel, 10s max)- Frequency: 20~1000Hz (fundamental), 1~20 harmonics |
DC Current Output | 0~±10A/phase, 0~±30A (3-phase parallel), 0.5° precision |
AC Voltage Output | - Phase: 0~120V (effective value, 0.2° precision); Line: 0~240V- Power: 80VA (phase) / 100VA (line)- Frequency: 20~1000Hz, 1~20 harmonics |
DC Voltage Output | 0~±160V/phase, 0~±320V (line), 0.5° precision; power: 70VA (phase) / 140VA (line) |
I/O & Timing | 10 digital input / 8 digital output channels; time measurement: 0.1ms~9999s (<0.1ms accuracy) |
Environmental & Physical | Operating temperature: -10℃ ~ +50℃; dimensions: 400×360×160mm³; weight: 18kg |
4. Application Value in Modern Power Systems
The ZX-802 addresses key challenges in relay protection testing, combining high precision, flexibility, and durability to support the evolving needs of power utilities, testing laboratories, and engineering teams. Its ability to simulate harmonic-rich signals, both AC/DC conditions, and multi-mode operation makes it compatible with modern power system environments, including those integrated with renewable energy sources and nonlinear loads. By streamlining test workflows and delivering reliable, accurate results, the ZX-802 helps ensure that protection relays perform as intended, reducing the risk of unplanned outages and equipment failures.
Conclusion
In an era where grid reliability is critical to global infrastructure, the ZX-802 Microcomputer Relay Protection Tester provides a robust, efficient solution for validating the performance of critical power system protection devices. Its user-friendly design, versatile testing capabilities, and precise output specifications make it a valuable tool for maintaining safer, more stable power grid operations worldwide.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
