ZX-CH: Advanced Capacitance and Inductance Tester for Power Grid Maintenance
Introduction
The maintenance and reliability of power grid components, particularly shunt capacitor banks and reactors, are critical to the stability of power systems. Traditional testing methods often require disconnecting individual units from parallel banks, leading to lengthy outages, increased safety risks, and significant maintenance workload. The ZX-CH Automatic Capacitance and Inductance Tester addresses these challenges by enabling live, non-disconnect testing of parallel capacitor banks while also providing accurate inductance measurements for various reactors. This article explores the technical capabilities, key features, and performance specifications of the ZX-CH tester, highlighting its role in enhancing power system maintenance efficiency and safety.
Core Functional Capabilities
The ZX-CH tester is engineered to streamline two critical maintenance tasks for power equipment:

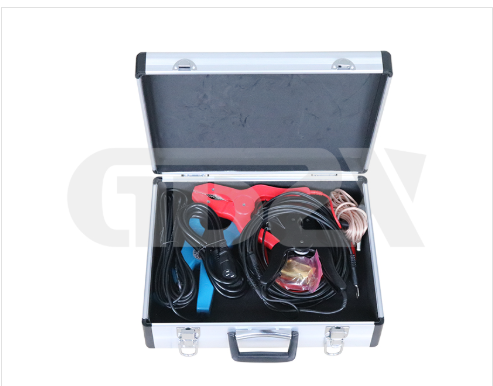

Non-Disconnect Capacitance Testing of Parallel Capacitor BanksThe instrument allows technicians to measure the capacitance of individual capacitors within a parallel-connected bank without disconnecting the wiring. This capability eliminates the time-consuming process of isolating each unit, drastically reducing test cycle times. It supports both single-phase and three-phase capacitor banks, with three-phase measurements completed in a single wiring configuration. The built-in automatic commutation function eliminates the need for manual wiring changes and short-circuit operations, minimizing human error and simplifying the testing workflow.
Inductance and Power Parameter MeasurementBeyond capacitance testing, the ZX-CH accurately measures the inductance of reactors and other inductive components. During testing, the device simultaneously captures critical power parameters including voltage, current, power, frequency, impedance, and phase angle. This multi-parameter data acquisition enables comprehensive analysis of the test sample’s quality, helping technicians identify issues such as degraded insulation, component drift, or abnormal operating conditions.
Key Design and Operational Features
The ZX-CH tester incorporates several user-centric and robust design features tailored for field use in power systems:
Intuitive Touchscreen Interface: An 8.0-inch 800 × 600 color touchscreen provides clear visibility in both day and night conditions. With Chinese menu prompts, the interface simplifies operation, reducing the learning curve for maintenance personnel.
Long Battery Life: A built-in high-capacity lithium battery supports continuous operation for no less than 8 hours, making the instrument suitable for extended field testing sessions without external power access.
Comprehensive Data Management: The tester stores up to 200 sets of measurement data in its non-volatile memory, with additional data export capability via a USB interface. This allows technicians to archive results for trend analysis and compliance reporting.
Integrated Printer and Clock: A high-speed micro thermal printer enables on-site printing of test reports and historical data. The built-in real-time clock supports date and time calibration, ensuring accurate traceability of test records.
Overcurrent Protection: The instrument’s test power supply includes short-circuit protection, preventing damage to the device in the event of accidental output shorts during field operations.
Technical Specifications
The performance of the ZX-CH tester is defined by the following key technical indicators, ensuring accuracy and reliability in power system environments:
Parameter | Specifications |
Test Voltage | AC: 25V ± 10%, 50HzAC: 1.25V ± 10%, 50Hz, 25VA |
Capacitance Measurement Range | 0.1µF ~ 6800µF, Accuracy: ±(reading 1% + 0.02µF) |
Inductance Measurement Range | 50µH ~ 20H, Accuracy: ±(reading 3% + 0.05µH) |
Current Measurement Range | 5mA ~ 20A, Accuracy: ±(reading 3% + 0.05mA) |
Resistance Measurement Range | 20mΩ ~ 20kΩ, Accuracy: ±(reading 3% + 0.1mΩ) |
Operating Temperature | -10°C ~ 40°C |
Environmental Humidity | ≤85% RH |
Working Power Supply | AC220V ± 10%, power frequency |
Dimensions | 400 × 300 × 200mm |
Benefits for Power Grid Maintenance
The adoption of the ZX-CH tester delivers tangible improvements to power equipment maintenance workflows:
Reduced Workload and Improved Efficiency: By eliminating the need to disconnect individual capacitors, the tester cuts down test preparation time significantly. Maintenance personnel can complete tests faster, reducing equipment downtime and improving overall operational efficiency.
Enhanced Safety: Non-disconnect testing reduces the risk of accidental contact with live components and minimizes the potential for wiring errors, creating a safer working environment for technicians.
Proactive Maintenance and Grid Stability: Accurate, multi-parameter measurements enable early detection of component degradation, allowing utilities to perform proactive maintenance and prevent unplanned outages. This directly contributes to the reliable and stable operation of the power grid.
Conclusion
The ZX-CH Automatic Capacitance and Inductance Tester represents a practical solution for modern power grid maintenance challenges. Its non-disconnect testing capability, multi-parameter measurement functions, and user-friendly design make it a valuable tool for technicians working with capacitor banks, reactors, and other critical power equipment. By streamlining testing workflows, improving safety, and providing accurate, actionable data, the ZX-CH tester supports utilities in maintaining the reliability and performance of their power systems.
