Advanced Diagnostics: Utilizing the ZX-CHA for Power System Analysis

Introduction

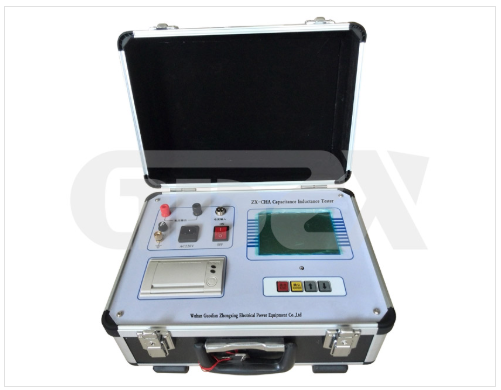

In modern power distribution and substation maintenance, the accurate measurement of reactive power components—specifically capacitance and inductance—is critical for ensuring system stability and power factor optimization. The ZX-CHA Automatic Capacitance and Inductance Tester represents a sophisticated solution for technical personnel, offering high-precision diagnostics without the need for traditional, labor-intensive procedures.

Measurement Methodology: The Bridge Circuit Principle

The ZX-CHA operates on a specialized bridge circuit architecture. Unlike standard meters, it utilizes a standard internal capacitor and the tested capacitor as two distinct arms of a bridge. When a test voltage is applied simultaneously to both, the integrated processor collects and analyzes the current signals via high-sensitivity sensors. This differential processing allows the instrument to derive precise capacitance, inductance, and resistance values even in electromagnetically noisy environments.

Key Technical Capabilities

For field technicians, the ZX-CHA offers several high-utility features designed for "live" or complex environments:

Non-Disconnection Measurement: A primary advantage of this instrument is the ability to measure individual capacitors within a parallel group without disconnecting the wiring. This significantly reduces downtime and prevents potential damage to capacitor bushings or connecting busbars.

Wide-Spectrum Analysis: The device supports a broad measurement range, accommodating capacitance from 0.1μF0.1μF to 3300μF3300μF and inductance up to 50H50H. With a current measurement capacity of up to 1000A1000A, it is suitable for both small-scale compensation banks and large reactor systems.

Automatic Sample Identification: The instrument features intelligent logic to automatically identify the type of load (Capacitive, Inductive, or Resistive), reducing the risk of manual configuration errors during high-pressure field testing.

Field Specifications and Data Management

Technical performance is backed by robust hardware specifications:

Accuracy: The instrument maintains a high accuracy rating of ±(1.0% reading+0.02μF)±(1.0% reading+0.02μF) for capacitance, ensuring reliable data for trend analysis.

Power Output: With a 500VA500VA rated output and dual voltage stages (2V/20V2V/20V), it provides sufficient excitation for various substation components.

User Interface: A 240×128240×128 backlit LCD provides real-time visibility of complex parameters including phase angle, impedance, power, and frequency.

Documentation: On-site reporting is facilitated by a built-in high-speed thermal printer and a non-volatile memory capable of storing 50 sets of measurement data for later analysis.

Operational Safety and Reliability

Designed for the rigors of field use, the ZX-CHA includes dedicated over-current and short-circuit protection circuits. The instrument's power supply is isolated to prevent damage in the event of a sample short circuit, ensuring the longevity of the device and the safety of the operator.

Conclusion

For technical teams tasked with the upkeep of power frequency equipment, the ZX-CHA serves as a versatile "three-in-one" diagnostic tool. By integrating capacitance, inductance, and current testing into a single $12kg$ portable unit, it streamlines the maintenance workflow while providing the high-resolution data necessary for sophisticated power system management.
