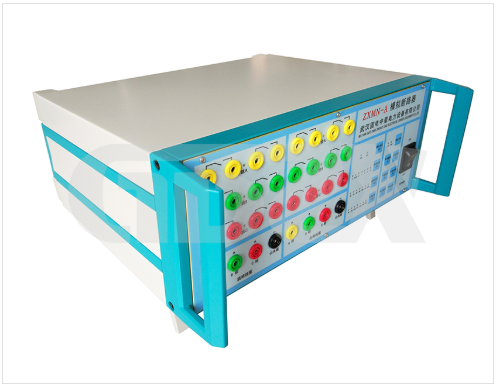

ZXMN-A: Optimizing Relay Protection Testing with a Circuit Breaker Simulator

Introduction

Relay protection testing is a cornerstone of power system reliability, requiring rigorous verification of trip/close sequences under diverse operational scenarios. Traditional testing workflows often rely on repeated switching of physical circuit breakers—a practice that accelerates equipment wear, extends debugging cycles, and introduces avoidable operational risks. The ZXMN-A Simulator Circuit Breaker Device addresses these pain points by delivering a reliable, efficient solution for simulating circuit breaker operations during full-set relay protection tests. Designed to integrate seamlessly with our company’s relay protection testers, the device enables non-stop power verification of protection systems, enhancing both testing efficiency and power supply reliability.

Core Functionality and Operational Benefits

The ZXMN-A simulator’s primary role is to replicate the tripping and closing behavior of circuit breakers throughout the entire suite of relay protection tests. By eliminating the need for repeated physical switching of actual breakers, it delivers three key operational advantages:

Extended Equipment Lifespan: Reduces the number of mechanical switching actions, minimizing wear on physical circuit breakers and lowering maintenance costs.

Streamlined Testing Cycles: Cuts debugging time and improves test efficiency by automating simulated breaker operations, eliminating delays associated with manual breaker control.

Enhanced Operational Convenience: Eliminates the logistical challenges and risks of repeated switching during comprehensive test sequences, ensuring smoother, uninterrupted test workflows.

When paired with our relay protection testers, the ZXMN-A enables continuous power verification of protection devices, ensuring that systems perform as intended under fault conditions without disrupting power supply continuity.

Key Features for Technical Reliability and Usability

The ZXMN-A is engineered with user-centric design and robust technical architecture to meet the demands of high-voltage testing environments:

Intuitive Human-Machine Interface: The panel-integrated touch keyboard and indicator light display simplify operation, allowing technicians to configure and monitor tests with minimal training.

Guided Operation with Voice Prompts: The system emits a single beep for normal operations and three beeps for improper actions, reducing human error and enhancing test safety.

Precision Control Architecture: A single-chip microcomputer serves as the control core, paired with integrated circuits, photoelectric coupling, and solid-state components in the weak-current control loop. This design ensures stable performance and precise time control for critical test sequences.

High-Voltage Isolation and Safety: The input circuit includes reliable isolation from the strong-electricity section, withstanding up to 220kV AC/DC voltage. When powered off, the instrument disconnects from external input circuits, eliminating risks of accidental burnout during prolonged idle periods.

Technical Specifications for Industrial Application

The ZXMN-A is built to meet the rigorous technical requirements of power system testing, with the following key parameters:

These specifications ensure the device delivers the precision, flexibility, and durability required for both laboratory and field testing environments, supporting accurate verification of relay protection trip/close timing, current thresholds, and sequence logic.

Conclusion

The ZXMN-A Simulator Circuit Breaker Device represents a significant advancement in relay protection testing technology, addressing longstanding challenges in equipment wear, test efficiency, and operational safety. By combining user-friendly design, robust safety features, and precise technical performance, it enables power system technicians to conduct comprehensive, reliable protection tests while extending the lifespan of critical circuit breakers. As power grids grow in complexity, tools like the ZXMN-A will remain essential for maintaining the high standards of reliability and performance demanded by modern electrical infrastructure.

 GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
