Enhancing Relay Protection Testing with the ZXMN-C Simulated Circuit Breaker
Introduction

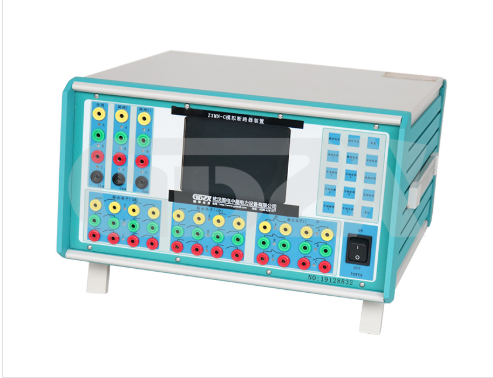

In the field of power system protection, relay protection devices require rigorous testing to ensure reliable operation under fault conditions. However, performing live tests with actual high-voltage circuit breakers presents several challenges: frequent mechanical wear, prolonged downtime, and operational inconvenience. The ZXMN-C Simulated Circuit Breaker Device addresses these issues by emulating the tripping and closing behavior of a real circuit breaker, enabling comprehensive protection relay testing without stressing the primary switching equipment.
This article provides a technical overview of the ZXMN-C, covering its key features, operating principles, and performance specifications, aimed at protection engineers and test technicians.
Purpose and Application
The ZXMN-C is primarily designed for complete set testing of relay protection devices. During the entire group of tests, the device simulates circuit breaker trip/close actions, thereby:
Reducing the number of actual switching operations, extending the service life of the circuit breaker.
Shortening debugging time and improving test efficiency.
Avoiding disruptions caused by repeated switching of the actual breaker.
When used in conjunction with relay protection testers (e.g., those produced by the same manufacturer), the ZXMN-C supports non interruptive power verification of protection devices, enhancing power supply reliability.
Core Features
1.Independent Dual Loop Trip Coil – Provides redundant tripping capability and incorporates malfunction/reset functionality.
2.Intuitive Human Machine Interface – Panel embedded touch keyboard paired with a high end LCD screen allows direct parameter selection and experiment configuration.
3.Audible User Prompts – A single beep confirms normal operation; three beeps indicate improper operation, improving user feedback.
4.Microcontroller Based Control – A single chip microcomputer serves as the control core. The low power control loop uses integrated circuits, optocouplers, and solid state components, ensuring stable performance and precise timing.
5.Robust Isolation – The MCU input circuit is reliably isolated from the high voltage section, withstanding 1.5 kV AC/DC. The instrument is completely disconnected from external input circuits when powered off, eliminating the risk of burning the device due to prolonged connection without testing.
Technical Specifications
Parameter | Details |
Input Power | AC220V ±10%, 50Hz, operating current <0.5A |
Tripping Mode | Split phase or three phase |
Trip/Close Operating Voltage | DC110V or DC220V |
Trip Current Selection | 0A, 0.25A, 0.5A, 1A, 2A, 4A, 5A |
Trip Time Options | 20, 40, 60, 80, 100, 110, 200 ms (error ≤ ±3 ms) |
Close Time Options | 50, 100, 150, 200, 300, 400, 500 ms (error ≤ ±3 ms) |
Simulated Auxiliary Contacts | Normally open / normally closed, rated AC220V/5A |
Outer Packaging Dimensions | 436 × 416 × 252 mm |
Instrument Dimensions | 400 × 380 × 205 mm |
Net Weight | 11 kg |
Application Notes
The ZXMN-C is particularly useful during periodic protection relay calibration, acceptance tests, and fault replay simulations where repeated breaker operations would otherwise cause unnecessary wear.
The adjustable trip current and timing allow emulation of different circuit breaker types (e.g., SF₆, vacuum, oil).
Because the device is fully isolated and self powered, technicians can safely conduct tests without disconnecting secondary circuits or worrying about back feeding.
Conclusion
For power system protection engineers seeking to improve testing efficiency and preserve the mechanical life of real circuit breakers, the ZXMN-C simulated circuit breaker offers a reliable, precise, and user friendly solution. Its combination of microcontroller accuracy, strong isolation, and flexible parameter selection makes it a valuable tool in any relay protection test lab or substation maintenance program.
