ZXRC-III: Optimizing Thermal Relay Calibration in Industrial Power Systems

Introduction

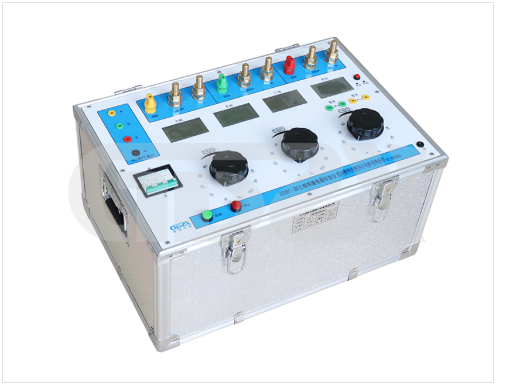

Thermal relays and motor protection devices are critical components in power distribution networks, safeguarding motors and electrical equipment from overheating caused by overloads, phase imbalances, or prolonged operation. Calibrating these devices with precision is essential to ensure they activate at the correct thresholds, preventing both equipment damage and unplanned downtime. The ZXRC-III Electronic Thermal Relay Calibrator is purpose-built to address this need, offering a robust, user-friendly solution for accurate and efficient calibration across diverse industrial environments.

Core Applications & Industry Adoption

The ZXRC-III calibrator is designed for setting and calibrating a wide range of thermal relays and motor protection devices. Its well-engineered design, intuitive operation, and high output power make it a reliable tool for electrical test sites in:

Power systems

Railway infrastructure

Petrochemical facilities

Metallurgical plants

Mining operations

These industries rely on continuous, safe operation of motors and equipment, making the calibrator’s ability to validate protection devices a cornerstone of preventive maintenance and operational reliability.

Key Features for Technical Excellence

The ZXRC-III’s features are tailored to meet the demands of rigorous calibration workflows, delivering both versatility and efficiency:

Three-Phase High-Current Output: It can simultaneously output three-phase current ranging from 0 to 500A, supporting calibration of multi-phase thermal relays and protection devices with balanced power delivery.

Synchronous Timing Testing: The calibrator enables synchronous testing of the action time for thermal relays, thermocouples, and motor protectors, ensuring consistent and accurate performance validation across all phases.

Comprehensive Contact Detection: It supports detection of both normally open (NO) and normally closed (NC) contacts, verifying the functional integrity of relay switching mechanisms during calibration.

Parallel Calibration Capability: Multiple calibrations can be connected in series simultaneously, significantly improving testing efficiency in high-volume maintenance environments.

Technical Specifications

The calibrator’s technical indicators are engineered to meet industry standards for precision and reliability:

表格

Operational & Maintenance Advantages

For technical teams, the ZXRC-III offers practical benefits beyond its core specifications:

User-Centric Design: The calibrator’s intuitive controls reduce operator training time, minimizing the risk of human error during calibration procedures.

Versatility: Its customizable current output and multi-phase support make it suitable for a wide range of thermal relay models, eliminating the need for multiple calibration tools.

Field-Ready Construction: The compact, lightweight form factor ensures ease of transport to on-site test locations, while its high output power guarantees reliable performance even in demanding industrial conditions.

Conclusion

The ZXRC-III Electronic Thermal Relay Calibrator is a specialized, high-performance tool that addresses a critical need in power system maintenance: accurate and efficient calibration of thermal protection devices. Its combination of three-phase high-current output, synchronous timing testing, and contact detection capabilities, paired with its robust design and industry-proven reliability, makes it an indispensable asset for technical teams across power, railway, petrochemical, and mining sectors. By ensuring thermal relays and motor protectors operate as intended, the ZXRC-III helps maintain the safety, efficiency, and uptime of critical industrial infrastructure.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
