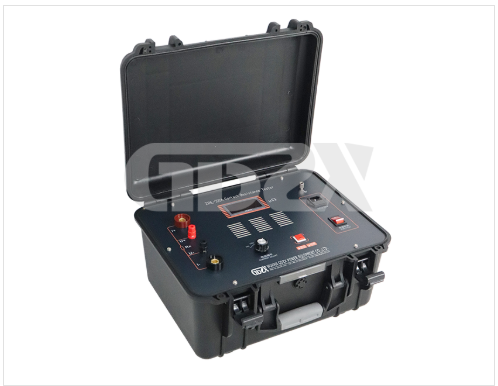

ZXHL-200A: High-Current Contact Resistance Test Overview

Introduction

In high-voltage power systems, the contact resistance of switching control equipment is a critical parameter directly impacting operational safety and reliability. Excessive contact resistance leads to localized heating, accelerated component degradation, and even catastrophic failures under load. The ZXHL-200A Contact Resistance Tester addresses this challenge with a design optimized for both factory acceptance testing and in-service maintenance of high-voltage switches.

By integrating high-frequency switching power supply and digital circuit technologies, the instrument delivers high-precision, stable measurements tailored to meet the stringent requirements of modern power system applications.

Core Design and Operational Principles

The ZXHL-200A leverages a continuous high-current output architecture, distinguishing it from traditional pulsed-power testers. Its core functionality centers on overcoming a common measurement challenge: the oxide layers that naturally form on switch contact surfaces. By delivering a steady DC test current (selectable at 50A, 100A, 150A, or 200A), the tester effectively breaks down and punctures these layers, ensuring the measured resistance reflects the true metallic contact path rather than surface contamination.

This principle is critical for obtaining accurate readings that correlate with real-world performance under load.

Key Features and Technical Advantages

The instrument’s design prioritizes performance, reliability, and usability, as evidenced by its core features:

Continuous High-Current Output Unlike pulsed-power devices that suffer from transient current limitations, the ZXHL-200A provides a stable, continuous high current. This capability is essential for penetrating contact oxide layers, eliminating measurement errors caused by surface films, and delivering precise, repeatable results.

Robust Anti-Interference Capability Field environments are often electrically noisy. The tester’s digital design ensures the last digit of measured data remains stable on its LCD display with an error of only ±1d, even under strong electromagnetic interference. This stability is crucial for dependable measurements in substation environments.

Enhanced Longevity and Durability High-precision resistors are employed to minimize temperature drift, ensuring measurement accuracy over extended use. Military-grade connectors are integrated to enhance vibration resistance, making the instrument suitable for both laboratory and field deployment.

Portable and User-Friendly Form Factor With compact dimensions (380×350×260mm) and a weight of just 10 kg (excluding accessories), the tester is designed for easy transport and on-site use. Its three-and-a-half-digit LCD display provides clear, immediate readouts for field technicians.

Technical Specifications

Application and Operational Significance

The ZXHL-200A is engineered to support two primary use cases in the power industry:

Factory Acceptance Testing (FAT): Verifying contact resistance during the manufacturing of high-voltage switches to ensure compliance with design specifications before deployment.

In-Service Maintenance: Conducting routine tests on installed equipment to detect early signs of contact degradation, wear, or improper assembly before they escalate into faults.

By providing accurate, reliable data, the tester enables maintenance teams to implement predictive maintenance strategies, reduce unplanned outages, and ensure the long-term integrity of high-voltage switching assets.

Conclusion

The ZXHL-200A Contact Resistance Tester represents a robust solution for a fundamental challenge in power system maintenance. Its continuous high-current output, anti-interference design, and durable construction make it a versatile tool for both factory and field applications. For technical professionals, the instrument’s combination of precision, stability, and portability directly supports the goal of maintaining safe, reliable, and efficient power distribution networks.
