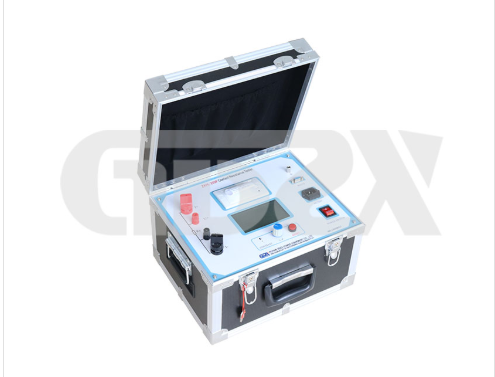

ZXHL-200P: Advancing Contact Resistance Testing in High-Voltage Systems

Introduction

In high-voltage power systems, the integrity of switching and control equipment is critical to grid reliability. A key performance indicator for these assets is contact resistance, as elevated resistance at electrical interfaces leads to excessive heat, voltage drop, and premature component failure. The ZXHL-200P Contact Resistance Tester addresses this challenge with a robust design tailored to meet the demanding requirements of both factory acceptance testing (FAT) and in-service maintenance of high-voltage switches.

Core Technology and Design Principles

The ZXHL-200P leverages high-frequency switching power supply technology and advanced digital circuit design to deliver stable, high-precision measurements. Unlike traditional pulsed power supplies that produce only transient current, the unit’s continuous high-current output is specifically engineered to break down the oxide layer commonly found on aged or factory-new switch contacts. This ensures the tester captures the true contact resistance value, not a misleading reading skewed by surface contamination.

The instrument’s measurement chain is built for accuracy: a dual-channel 16-bit Σ-Δ analog-to-digital (AD) converter samples the signal, paired with digital signal processing (DSP) to filter noise and resolve resistance down to 0.01 μΩ. This level of precision, combined with a system accuracy of ±(0.5% rd + 2d), ensures reliable data even in the electrically noisy environments typical of power substations.

Key Features for Field and Factory Use

The ZXHL-200P incorporates several features to streamline testing and improve data integrity:

Continuous High-Current Output: With fixed DC current options of 50A, 100A, 150A, and 200A, the tester delivers consistent current to overcome contact oxidation and produce repeatable results.

High Stability and Noise Immunity: Under strong electromagnetic interference (EMI), the LCD display maintains reading stability within ±1 digit, ensuring consistent measurements even in harsh conditions.

Intelligent Range Switching: A high-performance CPU automatically adjusts the measurement range based on signal strength, eliminating the need for manual configuration and preventing measurement errors.

Safety and Reliability: Built-in over-temperature protection automatically cuts off current output when operating limits are exceeded, while temperature-compensated circuits minimize ambient temperature effects. Key components use imported parts for long-term reliability.

User-Friendly Operation: The tester features an intuitive man-machine interface with rotary-mouse data entry, allowing users to set test parameters, save up to 200 records, and print results directly. Data can also be uploaded to a PC via USB or RS232 for further analysis.

Portability: With a compact form factor (380×300×260 mm) and a weight of just 10 kg (excluding accessories), the unit is suitable for both lab use and field deployment.

Technical Specifications Overview

Applications and Benefits

The ZXHL-200P is purpose-built for two primary use cases:

Factory Testing: Validating contact resistance during switchgear manufacturing to ensure compliance with design specifications.

Field Maintenance: Performing routine checks on high-voltage breakers, disconnect switches, and busbar joints to identify degradation before it leads to unplanned outages.

By combining high current output, micro-ohm resolution, and robust noise immunity, the tester helps maintenance teams:

Reduce false positives caused by contact oxidation.

Track resistance trends over time to predict component failure.

Comply with utility standards for high-voltage equipment testing.

Conclusion

The ZXHL-200P Contact Resistance Tester represents a practical, high-performance solution for the power industry’s most critical contact resistance testing needs. Its combination of advanced power electronics, precision measurement, and user-centric design makes it a valuable tool for both factory quality control and in-service reliability management. By delivering accurate, repeatable results in challenging environments, the instrument supports data-driven maintenance decisions and contributes to the overall stability of power distribution systems.

 GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
