ZXPD3000 Underground Line Locator: Tech Analysis & Applications

Abstract

Underground metal pipelines and power cables constitute the core infrastructure of urban power transmission, municipal water supply, and energy delivery systems. Blind excavation and unknown underground line distribution frequently trigger cable breakdowns, pipeline rupture, power outages, and construction safety accidents. Conventional single-function pipeline detectors are limited by weak anti-interference capacity, incomplete detection modes, and insufficient fault diagnosis capabilities, failing to meet integrated on-site demands of routing tracing, depth measurement, cable identification, and insulation fault pinpointing. This paper conducts a comprehensive technical breakdown of the ZXPD3000 underground pipeline detector, elaborating on its system composition, core functional features, full set of technical parameters, multi-scenario detection workflows, and optional accessory expansion schemes, to provide systematic technical reference for power operation and maintenance technicians, municipal construction surveyors, and underground pipeline inspection engineers.

1. System Composition & Core Working Principle of ZXPD3000

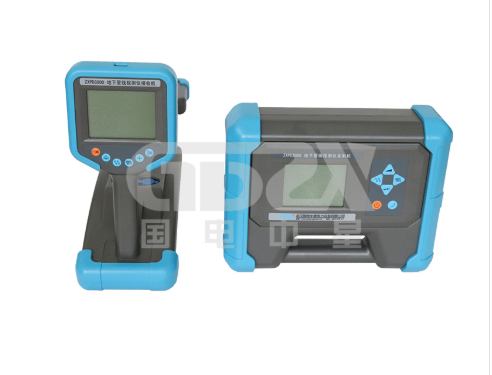

The ZXPD3000 underground pipeline detector is a high-performance active-passive integrated metal pipeline detection system, assembled by two core modules: a signal transmitter and a handheld receiver. The transmitter outputs adjustable low-frequency to high-frequency alternating signals onto target metal pipelines or live cables via three coupling modes: direct wired connection, clamp inductive coupling, and radiative induction. The receiver captures the electromagnetic field signal radiated by the underground conductor, then processes the collected signal through fully digital high-precision sampling circuits to calculate the pipeline’s horizontal position, buried depth, and loop current value. With matched optional accessories including flexible clamps, fault booster, A-frame ground fault locator, and stethoscope probes, the equipment expands its functions to cable live identification and pipeline insulation damage fault localization, realizing all-in-one underground line detection.

2. Key Technical Features & On-Site Technical Advantages

2.1 Visualized Direction Guidance & Anti-Interference Tracking Technology

The receiver integrates an electronic compass module that graphically displays the pipeline’s horizontal position and left-right offset direction on the LCD screen. Built-in tracking right/wrong prompt algorithm distinguishes target signals from interference signals of adjacent parallel pipelines, effectively suppressing crosstalk interference for partial detection frequencies. This function solves the long-standing industry pain point of line misjudgment in dense underground pipeline clusters.

2.2 Multi-Dimensional Data Measurement & Signal Trend Recording

The equipment supports real-time buried depth and conductor current measurement. Its built-in storage module records historical signal strength curves, enabling technicians to analyze signal attenuation trends along the pipeline route, judge pipeline joint corrosion, branch points, and metal joint resistance anomalies.

2.3 Ultra-Narrow Band Digital Sampling & Strong Anti-Interference Performance

Adopting full digital high-precision sampling processing architecture, the receiver features ultra-high receiving sensitivity and an extremely narrow receiving passband. It can fully filter out power frequency 50/60Hz interference and harmonic noise generated by parallel live cables, maintaining stable detection accuracy in complex industrial zones, downtown cable intensive areas, and transformer station surrounding environments.

2.4 Dual Active & Passive Detection Frequency Bands

Two detection modes are supported to adapt to diverse field conditions:

Active Detection: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz multi-frequency options, applicable to independent tracing of inactive pipelines and isolated cables.

Passive Detection: Configurable power frequency band (50Hz/60Hz, 250Hz/300Hz) and radio frequency passive bands centered at 10kHz, 33kHz, 82kHz, for non-contact tracing of live power cables without signal injection.

2.5 Three Transmitter Signal Output Modes & Intelligent Power Regulation

The transmitter digital power amplifier supports three signal output methods: direct connection output, launch clamp coupling, and radiative induction. Its 10-level adjustable 10W output power matches line impedance automatically in real time, with built-in overload and short-circuit automatic protection circuits to avoid equipment damage caused by ground short-circuit during field operation.

2.6 Expandable Fault Diagnosis & Cable Identification Accessories

Multiple optional accessories extend the equipment’s functional boundary:

Flexible receiving clamps and mini stethoscopes realize intelligent live cable identification, solving the problem of distinguishing multiple bundled cables in cable trenches.

A 1000V fault booster matches the A-frame locator to pinpoint pipeline insulation breakdown points without zero calibration; directional arrow prompts on the receiver guide technicians straight to the fault location.

2.7 Portable Hardware Design & Reliable Power Management

Both transmitter and receiver are equipped with detachable large-capacity lithium-ion battery packs. The system automatically cuts power under undervoltage status and triggers auto-shutdown after long-time standby to extend battery cycle life. The device shell adopts lightweight, rigid integrated molding, with compact dimensions for easy transport and field carrying.

3. Complete Technical Specifications of ZXPD3000

3.1 Transmitter Technical Indicators

Output Modes: Direct wired output, radiative induction, launch clamp coupling (standard), fault booster high-voltage output (optional)

Output Frequencies: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz

Output Power: 10W, 10 adjustable gears, real-time automatic impedance matching

Direct Connection Peak Voltage: 150Vpp

Protection: Overload protection, short-circuit automatic cut-off

Display: 320×240 dot matrix LCD human-machine interface

Power Supply: 4×18650 lithium batteries, nominal 7.4V, 6.8Ah capacity

Dimensions & Weight: 280×220×90mm, 2.3kg

3.2 Receiver Technical Indicators

Signal Input Methods: Built-in receiving coil, flexible receiving clamp (optional), stethoscope probe rod (optional), fault-detect A-frame (optional)

Receiving Frequency Bands:

Active tracing frequencies consistent with transmitter;

Configurable power frequency passive bands: 50/60Hz, 250/300Hz;

Radio passive detection bands: center frequency 10kHz, 33kHz, 82kHz

Pipeline Tracing Algorithms: Broad peak method, narrow peak method, sound valley method for different ground environments

Cable Identification Modes: Intelligent current measurement via flexible clamp, stethoscope auxiliary identification

Display: 320×240 dot matrix LCD screen

Power Supply: 2×18650 lithium batteries, nominal 7.4V, 3.4Ah capacity

Dimensions & Weight: 680×120×277mm, 2.0kg

3.3 Universal Environmental & Charging Parameters

Charger Input: AC 100~240V, 50/60Hz; Charger Output: DC 8.4V, 2A

Operating Environmental Conditions: Ambient temperature -10℃ ~ 40℃, relative humidity 5%~90%RH, working altitude below 4500m

4. Standard & Optional Accessory Matching Scheme

We classify supporting accessories into standard delivery parts and optional expansion components based on the ZXPD3000 configuration table, clarifying matching functions for technical selection reference:

Standard Equipped Accessories: Transmitter direct output cable, ground stakes, ground wire, power charger, red 5-pin transmitter accessory cable, red launch clamp. These accessories cover basic pipeline routing tracing and depth measurement requirements for daily power patrol work.

Optional Expansion Accessories:

Blue 6-pin receiver accessory cable, flexible receiving clamp: For multi-core live cable sorting and identification in cable wells;

Troubleshooting booster, A-frame locator: Specialized kit for buried pipeline insulation breakdown fault pinpointing;

Mini stethoscope, handheld stethoscope, stethoscope probe rod: Auxiliary identification in narrow, confined spaces where clamps cannot be installed.

5. Typical Power Industry Application Scenarios

Urban Distribution Network Routine Inspection: Passive detection mode traces underground live power cables without power cut, recording pipeline buried depth for digital pipeline archiving.

New Construction Pipeline Survey: Active frequency injection locates metal water, gas pipelines and pre-laid power cables to prevent construction excavation damage.

Cable Trench Cable Sorting: Flexible receiving clamps identify target live cables among dozens of bundled lines, reducing power outage troubleshooting duration.

Buried Pipeline Insulation Fault Repair: High-voltage booster paired with A-frame accurately locks insulation damage points of buried metal pipelines, improving maintenance efficiency.

Substation Peripheral Pipeline Mapping: Strong anti-interference performance adapts to high-electromagnetic-interference substation environments for peripheral underground line mapping.

6. Conclusion

The ZXPD3000 underground pipeline detector integrates active-passive dual-mode detection, multi-frequency switching, cable intelligent identification, and insulation fault high-precision positioning in one portable device. Its fully digital anti-interference circuit, intelligent power matching system, and rich expandable accessories overcome the functional defects of traditional single-purpose pipeline locators. For power grid operation & maintenance, municipal engineering, and underground pipeline survey technicians, this equipment delivers comprehensive, stable, and efficient underground line detection solutions, effectively lowering construction damage risks and shortening fault diagnosis time in power infrastructure operation. In future urban underground power grid digital transformation, integrated multi-function pipeline detectors represented by the ZXPD3000 will become standard inspection equipment for power industry frontline technical teams.
