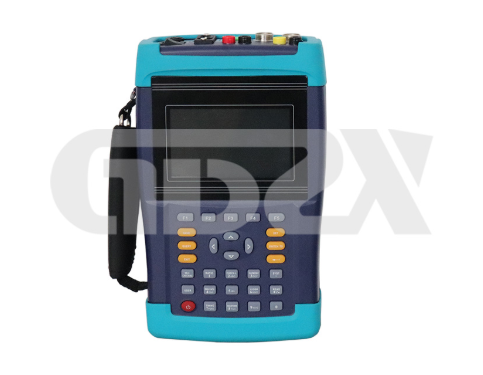

ZDXJ-1 Single-Phase Energy Meter Calibrator: Technical Overview

1. Introduction

The ZDXJ-1 Single-Phase Energy Meter Calibrator represents a class of 0.1-magnitude high-precision field calibration instrumentation designed for on-site verification of single-phase energy meters. Unlike conventional single-phase field calibration devices that rely on energy meter chips, this instrument employs a fundamentally different measurement architecture. Its most distinctive operational feature is the virtual load capability — when no physical load is present at the test site, the instrument's built-in current output serves as a virtual load source, significantly streamlining field testing workflows for single-phase energy meters.

2. Core Measurement Architecture

2.1 Digital Signal Processing Foundation

At the heart of the ZDXJ-1 is a high-speed, high-precision digital multiplier that forms the basis of all measurement computations. All correction parameters are implemented through software calibration rather than hardware potentiometer adjustments. This digital-only approach eliminates potentiometer drift and prevents measurement error degradation caused by physical transportation, vibration, or environmental mechanical stress — a critical advantage for portable field instruments that undergo frequent relocation.

2.2 True Reactive Power Measurement

The system incorporates domestically pioneered digital true reactive power measurement technology. Unlike conventional reactive power calculation methods that derive reactive values from active power and power factor, this direct measurement approach ensures accurate reactive energy quantification across distorted waveforms and non-sinusoidal conditions, which is increasingly important in modern distribution networks with growing nonlinear loads.

2.3 Harmonic Analysis Capability

The instrument measures both voltage and current harmonics from the 2nd through the 51st order, with complete harmonic data storage capability. With 0.1% harmonic accuracy in terminal mode, it provides comprehensive power quality insight alongside energy metering verification, enabling technicians to correlate meter performance with network harmonic distortion levels.

3. Key Technical Features

3.1 Dual-Mode Current Measurement

The ZDXJ-1 supports two current input methodologies, each with distinct accuracy profiles:

Terminal connection mode (direct input): 0.1% accuracy across the 0.1A–10A range, suitable for bench calibration and low-current verification

Clamp meter mode (CT-based): 0.3% accuracy for 0.1A–60A and 0.5% for 60A–1000A, enabling non-intrusive on-site testing without circuit interruption

Optional clamp sizes include 50A, 100A, 500A, and 1000A, covering comprehensive error measurement and low-voltage comprehensive error assessment scenarios.

3.2 Virtual Load Technology

The built-in simulated load source allows calibration to proceed at sites where no actual load is available. This is particularly valuable for newly commissioned installations, de-energized panels, and after-hours verification work. The 0.3-magnitude 50A clamp option further extends this capability by including opening/closing non-repeatability error, contact error, external magnetic field interference error, and angle error compensation.

3.3 Integrated Display and Data Management

A 4.4-inch (320 × 240) high-brightness, high-resolution TFT color LCD consolidates settings, error readings, electrical parameters, and voltage/current waveforms on a single screen. This unified visualization eliminates the need for technicians to navigate multiple menus during field operations.

The instrument stores a minimum of 6,000 meter measurement records, supporting post-test analysis and batch verification workflows. Data retrieval is facilitated through USB disk support and RS232 serial communication, with calibration data downloadable and software upgradeable via the same interfaces.

3.4 System Integration and Communication

PC connectivity enables seamless integration with existing databases and energy meter management systems. The instrument is compatible with PEC energy meter management software, supporting paperless office workflows and centralized calibration data management — an essential feature for modern utility metering departments.

4. Performance Specifications

4.1 Accuracy Characteristics

Accuracy is guaranteed across an operating temperature range of -20°C to +40°C, with automatic voltage shift from 30V to 265V and direct current input of 1–10A.

4.2 Source Output and Pulse

Output current: 5A ±20%

Electric pulse constants: FH = 3.6×10⁸ P/KW·H; FL = 36000 P/KW·H

4.3 Environmental and Mechanical

Operating temperature: -20°C ~ +40°C (accuracy guaranteed)

Humidity: 0 ~ 90% RH, non-condensing (accuracy guaranteed)

Power supply: AC 90 ~ 265V (wide-range operation)

Dimensions: 249 × 156 × 56 mm

Weight: 1.2 kg

The high-precision plastic mold chassis design combines lightweight construction with structural durability, optimized for field portability.

5. Field Application Advantages

The ZDXJ-1 addresses several persistent challenges in single-phase energy meter field calibration:

No-load site verification: Virtual load capability eliminates the traditional requirement for an active load during calibration

Non-intrusive testing: Clamp-on current measurement allows verification without breaking the circuit, reducing downtime and safety risks

Comprehensive error assessment: Beyond basic meter error, the instrument quantifies the contribution of CT connection errors, magnetic interference, and angular displacement

Paperless workflow: Direct PC integration and USB data export support modern quality management systems

Transport stability: Potentiometer-free design ensures calibration integrity remains intact after shipping and field handling

6. Conclusion

The ZDXJ-1 Single-Phase Energy Meter Calibrator integrates precision measurement, harmonic analysis, virtual load simulation, and digital data management into a portable 1.2 kg package. Its software-calibrated architecture and true reactive power measurement technology make it suitable for both routine field verification and advanced diagnostic testing of single-phase metering installations. For utility technicians and metering engineers, this instrument provides a comprehensive solution that bridges traditional calibration methods with modern digital power measurement requirements.
