SMG6000 Three-Phase VAF Meter: Precision Power Analysis for Field Engineers

1. Introduction

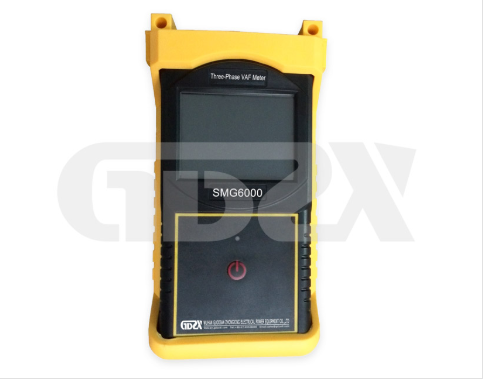

The SMG6000 High Accuracy Three-Phase VAF Meter is a portable electrical inspection instrument designed for power system field engineers, maintenance technicians, and metering personnel. Built around a high-speed ARM processor with a full-color graphical touchscreen interface, this device consolidates voltage, current, frequency, phase, and power measurements into a single handheld unit. Its primary application domains include substation commissioning, CT circuit verification, energy meter installation auditing, power quality imbalance assessment, and live-line wiring correctness checks across three-phase distribution networks.

2. Core Measurement Capabilities

2.1 Voltage and Current Acquisition

The instrument provides three independent AC voltage channels covering a 5–500 V phase voltage range with 0.01 V resolution and ±0.30% accuracy. For current measurements, it integrates four AC current channels — three phase currents plus one zero-sequence current channel — spanning 1 mA to 10 A with 1 mA resolution and ±0.30% accuracy. This four-channel current architecture enables simultaneous leakage current monitoring, allowing the unit to double as a dedicated leakage current meter in protective earth testing scenarios.

2.2 Phase and Frequency Metrology

Phase-angle measurement covers the full 0–360° range with ±1° accuracy and 0.1° resolution, supporting U-U, I-I, and U-I angular relationships. Grid frequency is measured across 45–65 Hz with 0.01 Hz resolution, suitable for both 50 Hz and 60 Hz power systems. The instrument displays these angular relationships via a hexagon vector diagram, giving technicians an immediate visual representation of system balance and phase sequence.

2.3 Power Calculation Engine

The SMG6000 computes active power (0.001–5 kW), reactive power (0.001–5 kVAR), and apparent power (0.001–5 kVA) with reading-based accuracy of 0.5% at unity and zero power factor respectively. Power factor is resolved to 0.001 steps across the full −1 to +1 range with ±0.03 accuracy. The built-in energy accumulation function extends the meter's utility beyond spot-checking to cumulative energy audits.

3. Wiring Verification & Fault Detection

One of the device's most technically significant features is its CT wiring correctness analysis and energy-meter wiring error identification capability. For two-element three-phase three-wire (3P3W) metering installations, the SMG6000 can detect 192 distinct wiring error configurations. For each detected miswiring case, the instrument outputs:

A vector diagram showing actual phasor positions

A schematic wiring diagram of the erroneous connection

The corresponding power expression under the fault condition

A textual description of the error and its impact

This diagnostic capability drastically reduces the time required to identify reversed CT polarities, swapped phase connections, and open/short CT secondaries — faults that otherwise cause systematic metering errors and revenue discrepancies.

Additionally, the meter performs three-phase voltage and current imbalance detection, quantifying negative-sequence components that indicate load unbalance or supply asymmetry, which is critical for motor protection and transformer health assessment.

4. Technical Specifications & Performance

表格

Note: Phase angle error degrades to ±3° in the 1 mA–5 mA current range due to reduced signal-to-noise ratio at low-current levels.

5. Operational Features & Field Utility

5.1 Low-Power Architecture

The SMG6000 employs a low-power design enabling up to 12 hours of continuous operation on internal battery power, supporting full-day field deployment without recharging. Auto-ranging functionality eliminates manual range selection during measurements, reducing operator error and accelerating test procedures.

5.2 Human-Machine Interface

The true-color touchscreen interface with icon-driven navigation minimizes training overhead for field technicians. All measurement parameters, vector diagrams, and wiring analysis results are rendered on a single display, enabling rapid interpretation without menu navigation.

5.3 Data Export and Post-Processing

Measured data is exportable via USB flash drive, allowing engineers to transfer raw datasets to desktop analysis tools for report generation, trend analysis, and archival documentation — a critical requirement for formal commissioning records and compliance audits.

6. Conclusion

The SMG6000 Three-Phase VAF Meter delivers laboratory-grade measurement accuracy in a field-portable form factor. Its combination of multi-parameter metrology, comprehensive wiring fault diagnostics (192 3P3W error modes), vector visualization, and long battery life makes it an indispensable tool for power utility technicians, metering engineers, and electrical commissioning specialists. By integrating verification, measurement, and imbalance analysis into one device, it reduces the instrument count required per site visit and accelerates the troubleshooting workflow for three-phase power installations.
