ZXCT-H On-Site CT Calibrator Technical Analysis

Abstract

Current and voltage transformers serve as core metering intermediate equipment in power plants, substations and user-side high-voltage measurement systems. Their measurement accuracy directly determines the fair settlement of power generation, transmission, distribution and power consumption parties. National standards SD109 and DL/T448-2000 have put forward mandatory regular on-site verification requirements for all energy metering devices. Traditional field calibration schemes for transformers suffer from heavy equipment, complicated wiring, high labor intensity and low test efficiency. This paper systematically introduces the ZXCT-H current transformer field calibrator developed with advanced high-precision testing circuit technology, elaborates its core functional advantages, complete technical indicators and ampere-turn equalization expansion test method, and provides technical reference for power metering inspection technicians to carry out on-site transformer error verification work.

1. Industry Background & Demand for Transformer On-Site Calibration

High-voltage energy measuring instruments deployed in power grid operation links are the legal basis for electricity charge settlement. Any deviation of current transformer (CT) and voltage transformer (VT) transformation ratio, angle error or excitation characteristic will lead to measurement distortion and economic disputes among multiple stakeholders.

According to the mandatory specifications SD109 Inspection Regulations for Electric Energy Measurement Devices and DL/T448-2000 Technical Management Regulations for Electricity Measurement Devices, all metering transformers need periodic on-site error verification. Conventional calibration solutions rely on matched standard CT, current booster, load box, voltage control cabinet and large-section high-current conductors. The complete set of test equipment is bulky, wiring steps are cumbersome, and long-time high-current output brings serious power-frequency electromagnetic interference, which severely restricts the efficiency of field inspection operations.

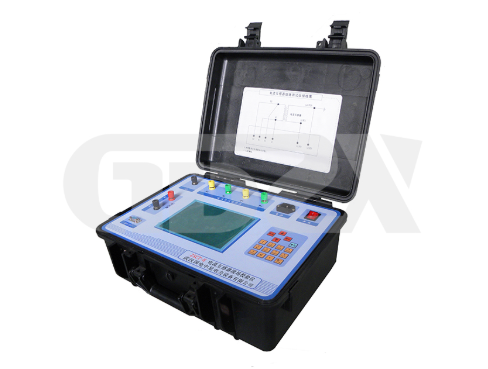

A new generation of portable integrated CT field calibrator represented by ZXCT-H adopts innovative recursive error measurement principle and built-in 0.05-level standard equivalent voltage transformer, which completely removes the dependence on external heavy auxiliary equipment and realizes lightweight, high-efficiency and anti-interference on-site transformer verification.

2. Core Functional Features of ZXCT-H Field Calibrator

The ZXCT-H calibrator integrates multi-dimensional test functions including CT error measurement, transformation ratio detection, secondary winding internal resistance and admittance test, with 14 prominent technical features optimized for field working conditions:

Recursive CT Error Measurement Algorithm: The embedded recursive measurement method simplifies the error calculation logic of tested transformers and adapts to rapid on-site verification of various metering devices.

No External Standard Equipment Required: On-site CT verification eliminates standard current transformers, current risers, load boxes and high-current wires. Ultra-simplified test wiring drastically cuts labor intensity and improves single-shift inspection efficiency.

0.05-Class Built-In Standard Equivalent VT: The internal standard voltage transformer matches the transformation ratio of the tested CT with 0.05 high precision. It accurately acquires CT transformation ratio and no-load error data, and combines secondary impedance-admittance test results to calculate composite transformer errors.

Anti-Interference Variable-Frequency Test Power Source: It adopts power supply signals slightly deviated from industrial frequency, effectively suppressing on-site power-frequency electromagnetic radiation and series coupling interference, ensuring stable measurement data under complex substation electromagnetic environments.

Ultra-Wide Test Range Coverage: Supports two mainstream secondary current specifications: 5A secondary CT ranging from 5A/5A to 25000A/5A, and 1A secondary CT ranging from 5A/1A to 6300A/1A, covering all standard primary rated current specifications of grid metering transformers.

Complete Secondary Circuit Test Functions: Integrates CT transformation ratio test and secondary winding DC internal resistance measurement modules to evaluate winding integrity and connection quality simultaneously.

High-Resolution Touch Human-Machine Interface: Equipped with an 800×600 large-size color LCD touch screen. Humanized menu logic and touch operation reduce operation learning cost for field technicians.

High-Precision Digital Operation Algorithm: Optimized floating-point software algorithm further weakens system quantization error and improves the repeatability of measurement data.

Intelligent Wiring Self-Diagnosis System: Real-time judgment of external wiring states, with automatic pop-up alarms for wiring mistakes, transformation ratio mismatches and polarity reversal faults to avoid invalid test results caused by human misoperation.

Automatic Data Processing & Tolerance Judgment: The instrument automatically rounds raw test data and judges whether errors exceed the tolerance limit; out-of-tolerance data is highlighted in orange at the bottom right of the display window for intuitive identification.

Direct On-Site Verification Conclusion Output: Automatically generates qualified / unqualified test conclusions after measurement, consistent with the standard report format required by power metering management.

Large-Capacity Local Storage: Built-in storage chip can save up to 1000 groups of complete field test data for offline secondary review and batch report generation.

Dual Data Export Interfaces: Reserved RS232 and USB communication ports to connect with industrial computers, supporting one-click printing of formal calibration certificates.

Shock-Resistant Engineering Plastic Chassis: The whole machine adopts molded engineering plastic shell with shock and pressure resistance design, protecting both field operators and internal precision circuits during transportation and substation on-site tests.

3. Complete Technical Performance Indicators

3.1 Current Transformer Error Measurement Module

Overall measurement accuracy: Reach 1/3 of the maximum allowable error limit of the tested CT, meeting the measurement uncertainty requirement of metering verification equipment specified by national metrology regulations.

Standard test range:

Secondary 5A CT: 5A/5A ~ 25000A/5A

Secondary 1A CT: 5A/1A ~ 6300A/1A

Test working point coverage of CT primary current: 1% ~ 200% rated primary current, fully covering all inspection points specified in energy metering standards.

Secondary load adaptation range: 2.5VA ~ 300VA, power factor cosφ adjustable within 0.1 ~ 1.0, adapting to different secondary loop impedance conditions on site.

Applicable CT accuracy grades: Supports verification of 1.0, 0.5, 0.5S, 0.2 and 0.2S class metering current transformers.

Impedance & admittance measurement performance: Measurement error ≤±5.0%; resistance measuring range 0.00Ω ~ 20.0Ω, admittance measuring range 0.000mS ~ 100.0mS.

3.2 Voltage Transformer Calibration Module

Basic error calculation formula:

In-phase component X=(X×2%+Y×2%+2 words)

Orthogonal component Y=(X×2%+Y×2%+5 words) Where X and Y stand for instrument display values; "words" represent instrument quantization error.

Percentage error measuring range: 0.0000% ~ 200.0%; phase angle measuring range: 0.000′ ~ 999.9′, matching Level 1 standard error table.

3.3 General Machine Parameters

Self-consumption power: 20VA, low power consumption to adapt to field portable power supply.

Instrument self-accuracy class: 0.05S high-precision standard grade.

External dimension: 460 × 375 × 183mm; total weight: 10.0kg, realizing portable single-person carrying compared with traditional split calibration equipment.

4. Ampere-Turn Equalization Expansion Test Method for Non-Standard Transformation Ratios

The instrument provides a complete list of standard primary current specifications for 5A and 1A secondary CTs. For transformer ratios not included in the table, the ampere-turn equalization test method is adopted to expand the test range without affecting data validity.

4.1 Working Principle

The magnetic field inside the CT iron core is determined by the product of primary current and primary winding turns (ampere-turns). By winding the instrument’s test wire through multiple turns around the CT primary busbar, the equivalent primary ampere-turn value is matched, and the actual primary current of the transformer is converted by turn ratio calculation.

4.2 Application Example

For a 1000A/5A CT to be tested: wind the instrument test wire through 2 turns on the CT primary conductor, input only 500A test current from the calibrator. The product of current and turns equals the rated ampere-turn of the tested transformer, and the error data obtained is completely equivalent to the full-current direct test result.

4.3 Typical Application Data Table

This expansion method breaks the upper limit of the instrument’s native test range, making the calibrator compatible with extra-large current transformers up to 31500A/1A for secondary 1A specifications.

5. Engineering Application Value & Conclusion

The ZXCT-H current transformer field calibrator solves the core pain points of traditional on-site transformer verification: heavy equipment, complicated wiring, low efficiency and poor anti-interference performance. Its built-in high-precision standard VT, recursive error measurement algorithm and ampere-turn equalization expansion technology realize integrated all-in-one testing of CT error, transformation ratio and secondary winding parameters.

For power metering technical staff, this equipment can significantly reduce field preparation time, cut the number of auxiliary tools carried, and improve the accuracy and traceability of test data under complex electromagnetic environments in substations. Meanwhile, the intelligent wiring diagnosis, automatic tolerance judgment and data storage & export functions standardize the whole process of metering inspection, which conforms to the refined management trend of modern power grid energy measurement.

In the construction of smart grids, high-precision portable transformer calibrators represented by ZXCT-H will become standard matching equipment for metering inspection teams, providing reliable technical support for ensuring fair and accurate power measurement.

Brief Title Option (Short Version for Cover)

Technical Research on ZXCT-H Portable Current Transformer Field Calibrator

On-Site Calibration Technology of Current Transformer Based on ZXCT-H Calibrator

Performance & Application Analysis of ZXCT-H CT Field Calibrator

Writing Instruction

This article targets power metering technicians, substation test engineers and metrology management personnel. It maintains rigorous technical logic, retains complete standard numbering, formula definitions and test parameter data, and focuses on practical on-site operation schemes, which meets the learning and technical reference demands of frontline power equipment practitioners.
