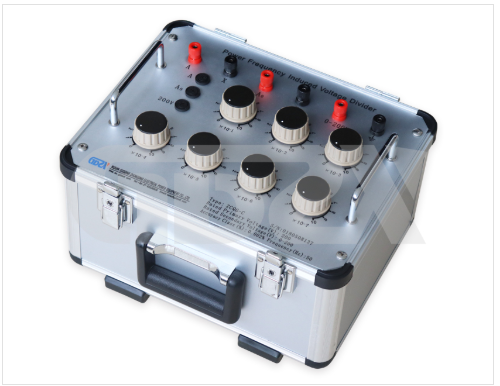

ZCQG-C Power Frequency Inductive Voltage Divider: A Technical Overview

Introduction

In the field of power frequency electrical metrology and precision measurement, inductive voltage dividers serve as core standard instruments for traceable, high-accuracy voltage ratio conversion. Compared with resistive and capacitive counterparts, inductive voltage dividers feature lower phase error, stronger long-term stability and better anti-interference performance, and are widely adopted in calibration laboratories and industrial test systems. The ZCQG-C 200V power frequency self-coupling inductive voltage divider is a high-precision ratio device designed for power frequency measurement scenarios, adopting a cascaded two-stage topology with switch-configurable voltage ratios. This article elaborates its working principle, performance merits, technical specifications and application scope for electrical engineering technicians.

Operating Principle and Structural Design

The ZCQG-C implements a self-coupling two-stage voltage proportional unit in cascade operation mode. Based on the electromagnetic induction principle of transformers, its primary and secondary windings share a common magnetic core and partial winding turns, and voltage scaling is realized strictly through the turn ratio of the windings.

Different from single-stage inductive dividers, the cascaded two-stage architecture expands the adjustable range of voltage ratio while maintaining high ratio accuracy. By switching the internal tap switches, the device can output arbitrary voltage proportion values, adapting to diversified test requirements without hardware replacement. This design effectively avoids accuracy degradation caused by excessive turn ratio in single-stage structures, ensuring consistent precision across the full ratio range.

Core Performance Advantages

1. High precision, excellent linearity and outstanding stability

The ZCQG-C reaches an accuracy class of 0.002, delivering extremely low ratio error and phase displacement to meet the demands of primary-standard-grade voltage measurement. Relying on the inductive coupling mechanism, the device maintains excellent linearity within its rated voltage range, and the output voltage keeps a strict proportional relationship with the input voltage at different voltage levels.

With high-performance magnetic core materials and stabilized winding technology, the device also exhibits remarkable long-term stability. Its voltage ratio remains highly consistent with negligible drift under specified operating conditions, and it provides universal ratio outputs compatible with mainstream power frequency measurement systems.

2. Compact size and user-friendly operation

Weighing only 11 kg, the ZCQG-C features a small form factor and lightweight design, suitable for both fixed laboratory deployment and mobile on-site testing. The switch-based ratio adjustment eliminates complex wiring or software configuration, allowing technicians to complete ratio setting quickly and improving work efficiency in routine calibration and field test tasks.

Technical Specifications and Operating Conditions

To ensure reliable and accurate performance, the ZCQG-C is defined with strict environmental, power supply and performance specifications as follows.

1. Environmental Requirements

The device achieves its nominal accuracy under the following reference environmental conditions:

Ambient temperature: 20±5℃

Relative humidity: <80%

Altitude: <1000 m

Operating environment: Free from strong electromagnetic interference sources and severe mechanical vibration, to prevent external interference from introducing extra measurement errors.

2. Power Supply Conditions

Rated power frequency: 50±0.5 Hz, matching the standard power grid frequency

Input voltage distortion coefficient: <5%, ensuring the input waveform is approximately sinusoidal to avoid harmonic components from impairing ratio accuracy.

3. Key Performance Indexes

Rated primary voltage: 200 V

Rated secondary voltage range: 0~200 V, covering full-range voltage output

Rated load: 0 VA. This specification indicates the device is designed for no-load operation; connecting a load will introduce additional load error and reduce measurement accuracy. In practical application, it must be matched with high-impedance measuring instruments.

Accuracy class: 0.002

Net weight: 11 kg

Application Scenarios

With its high accuracy, stable performance and flexible ratio adjustment capability, the ZCQG-C power frequency inductive voltage divider can be widely applied to various measurement circuits and devices in the power industry, including but not limited to:

Ratio standard for calibrating analog/digital voltmeters, voltage transformers and other voltage measuring instruments

Precision voltage scaling in laboratory electrical parameter test systems

Voltage signal conversion in power frequency withstand voltage test and partial discharge detection systems

Ratio reference for voltage measurement modules in power quality analyzers and energy meter calibration setups

Conclusion

The ZCQG-C power frequency self-coupling inductive voltage divider integrates a cascaded two-stage topology, high-precision electromagnetic design and compact structure, providing a reliable and flexible voltage ratio solution for power frequency precision measurement. Its 0.002-class accuracy, excellent linearity and long-term stability make it an essential instrument for electrical metrology institutions, power equipment manufacturers and on-site test teams, supporting accurate and traceable voltage measurement in various power industry scenarios.
