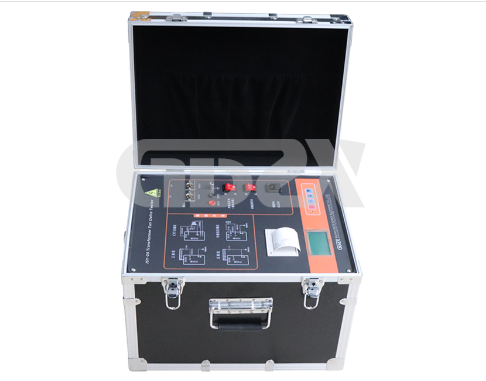

The importance of JSY-03 dielectric loss tester
Dielectric loss testing is a critical diagnostic method for evaluating insulation integrity in high-voltage electrical equipment such as transformers, capacitors, and bushings. Traditional measurement techniques, such as bridge-based systems, often face limitations in accuracy, interference resistance, and operational efficiency—especially in complex electromagnetic environments like substations. The JSY-03 Dielectric Loss Tester emerges as a transformative solution, leveraging advanced digital signal processing, automated frequency conversion, and robust safety features. This article provides a technical deep dive into the JSY-03, highlighting its innovations and comparing its performance against conventional methods.
Key Technical Innovations of the JSY-03
1.Frequency Conversion & Anti-Interference Capability
Unlike traditional bridge methods limited by fixed 50/60Hz frequencies, the JSY-03 employs a programmable dual-frequency sine wave output (45/55Hz, 55/65Hz, etc.) combined with Fourier-transform digital filtering. This enables precise suppression of 50Hz grid interference, achieving ±0.0004 accuracy in tanδ measurements even under 200% ambient noise—a marked improvement over legacy systems prone to field interference.
2.Automation & User Interface
The JSY-03 integrates a *7-inch touchscreen interface* with intuitive graphical controls, eliminating manual calculations and complex wiring. In contrast, conventional testers often require skilled operators to adjust balance points and interpret analog outputs. Automated voltage ramping (0.5–10kV) and capacitive/inductive/resistive sample recognition further reduce human error.
3.Multifunctional Testing Modes
The device supports 10kV reverse wiring tests for grounded CVT systems without disassembly and self-excited CVT analysis (C1, C2, and total capacitance measurements). Comparatively, older models lack CVT-specific algorithms, necessitating additional equipment for comprehensive assessments. The JSY-03 also performs AC withstand voltage tests (up to 400V), consolidating roles typically requiring separate instruments.
4.Data Management & Safety
Integrated storage (with timestamping), USB export, and RS232/PC connectivity enable seamless data reporting—a leap from paper-based logs used with analog testers. Safety features like grounding verification, overcurrent protection, and instantaneous high-voltage cutoff during operator contact address risks overlooked in older designs.
Comparative Analysis: JSY-03 vs. Conventional Testers
Parameter | JSY-03 | Legacy Systems |
Accuracy | ±(1% reading +1pF) for Cx; ±(1% +0.0004) for tanδ | Typically ±2–3% with drift under noise |
Interference Rejection | 200% noise immunity via frequency hopping | Limited to 50Hz filtering; unstable |
Testing Speed | ~40 seconds per test | 2–5 minutes (manual balancing) |
CVT Testing | Full C1/C2/total capacitance and tanδ | Requires external circuits/accessories |
Voltage Flexibility | 45–65Hz, 0.5–10kV programmable output | Fixed 50/60Hz, limited voltage ranges |
Safety Compliance | Active grounding checks, touch protection | Passive grounding; no real-time safety |
Application Advantages in Field Testing
1.Substation Readiness: The JSY-03’s integrated HV source and lightweight design (28kg) simplify deployment in confined spaces, outperforming bulky systems reliant on external generators.
2.Oil Testing Compatibility: When paired with standard oil cups, it achieves 0.1% precision for oil tanδ—critical for transformer maintenance.
3.Resonant Compatibility: Compatible with series resonance sources (40–300Hz), it supports large-capacity HV tests (e.g., GIS bushings), unlike fixed-frequency testers.
Technical Specifications Summary
1.Capacitance Range: 3pF–30μF (external HV mode)
2.Frequency Accuracy: ±0.01Hz for anti-interference sweeps
3.Output: 10kV/200mA (internal), 1A (external)
4.Data Ports: USB, RS232, thermal printer, PC software for fleet management
5.Safety: Dual-layer protection (voltage/current limits, grounding interlocks)
The JSY-03 Dielectric Loss Tester redefines insulation diagnostics by merging laboratory-grade precision with rugged field adaptability. Its automated workflows, interference immunity, and multifunctional testing capabilities address longstanding gaps in traditional bridge-based and analog systems. For utilities and testing teams, the JSY-03 reduces downtime, enhances safety, and delivers actionable data—positioning it as an indispensable tool for modern power asset management.
