Modernizing Grid Protection: The ZX-6000 Series Comprehensive Relay Testers for Smart Substations
The evolution towards smart substations demands equally advanced testing solutions. The ZX-6000 Optical Fiber Digital Relay Protection Tester series emerges as a critical toolset, designed explicitly to meet the stringent requirements of modern IEC 61850-based digital substations while accommodating transitional and legacy systems. This article delves into the capabilities of the ZX-6000 series, focusing on the pure-optical ZX-6000 model and contrasting it with its hybrid siblings (ZX-6001/6002).
Core Strengths of the ZX-6000 (Pure Optical):

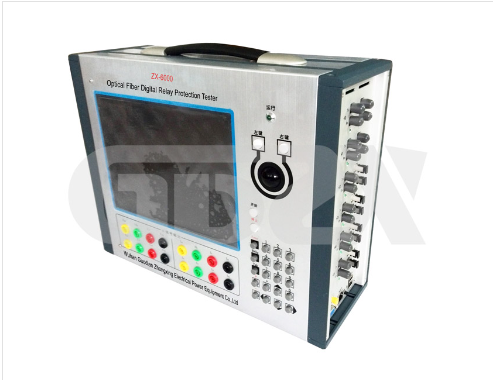

The flagship ZX-6000 is engineered as a dedicated digital relay protection tester. Its primary focus is validating the complex communication and logic of devices reliant solely on optical fiber communication within the IEC 61850 framework and related standards:
1.High-Density Optical Communication:
Ethernet (IEC 61850): Features 4/6/8 pairs of 100Mbps multimode ST ports. These simultaneously transmit/receive IEC 61850-9-1/9-2 Sampled Values (SV), GOOSE (Generic Object Oriented Substation Event), and IEEE 1588 Precision Time Protocol (PTP) messages. Impressively, it supports up to 24 SV streams + 64 GOOSE streams concurrently, essential for testing complex protection schemes and multi-bay scenarios. Performance metrics are top-tier: send dispersion <0.1µs, receive accuracy <25ns, max throughput >95Mbps, and 1588 sync accuracy <80ns.
Serial (FT3 Legacy): Includes 3/5 pairs of 2-10Mbps multimode ST ports for IEC 60044-7/8 FT3 format SV (standard, extended, proprietary). This ensures compatibility with older merging units (MUs) and protection devices still using this protocol, achieving similar timing precision (<0.1µs dispersion, <25ns sync).
2.Advanced Testing & Analysis Capabilities:
SCL Configuration: Automates test setup by parsing SCD, CID, ICD, and NPI files, auto-configuring SV and GOOSE messages.
Network Diagnostics: Comprehensive message detection, monitoring, packet capture (PCAP), and automated analysis functions are built-in for troubleshooting.
Simulation & Stress Testing: Enables replay of captured PCAP traffic (with editing), simulation of abnormal SV/GOOSE/FT3 frames, network load pressure testing, and GOOSE storm generation.
Precision Timing: Built-in GPS module with IRIG-B/PPS optical sync input/output (<400ns accuracy) and IEEE 1588 support underpins all time-critical tests, including Intelligent Terminal SOE response time measurement (<0.1ms accuracy) and synchronization verification.
3.Specialized Digital Features: 12-channel small signal analog output (0-7.07VAC/0-10VDC, 0.1% accuracy) caters to testing protection devices accepting low-level voltage inputs directly. 8 self-identifying binary inputs (10-250VDC/contact) and 8 fast binary outputs (<10µs operate time) complete the core I/O.
4.Flexible Operation: Can run standalone via its built-in IPC and 10.4" display or be controlled via PC using the same software. Features dedicated fiber ports for data transfer, mirroring, and loopback.
Contrasting the ZX-6000 Series: Pure Optical vs. Hybrid (Digital-Analog)
While the ZX-6000 excels in pure digital substation environments, the ZX-6001 and ZX-6002 models extend functionality to cover traditional analog testing needs, creating a versatile series:
Feature | ZX-6000 (Optical) | ZX-6003 (Optical) | ZX-6001 (Hybrid) | ZX-6002 (Hybrid) |
Core Focus | Pure Digital IEC 61850/FT3 | Enhanced Pure Digital | Digital + Basic Analog | Digital + High-Capacity Analog |
Optical Ethernet | 4/6 pairs | 8 pairs | 6 pairs | 6 pairs |
Optical Serial (FT3) | 4/5 pairs | 3 pairs | 5 pairs | 5 pairs |
Small Signal Analog | 12 channels | 12 channels | 12 channels | 12 channels |
Current Source | - | - | 3x (0-30A) | 6x (0-30A) |
Voltage Source | - | - | 4x (0-125V) | 6x (0-125V) |
Binary I/O | 8 in / 8 out | 8 in / 8 out | 8 in / 8 out | 8 in / 8 out |
Auxiliary DC | - | - | 1 channel | 1 channel |
1.ZX-6000: Optimal for commissioning and maintaining fully digital substations, testing MUs, protection relays (IEC 61850/FT3), IEDs, and switches. Its strength lies in protocol simulation, message analysis, and high-precision timing/synchronization tests within the digital realm.
2.ZX-6003: Similar pure-digital focus as ZX-6000, but trades some FT3 ports for the maximum number of Ethernet ports (8 pairs), ideal for large-scale digital systems needing massive GOOSE/SV simulation.
3.ZX-6001 & ZX-6002 (Hybrid): Bridge the gap. They retain robust digital capabilities (6x Eth, 5x FT3) but add traditional high-power analog outputs. The ZX-6001 offers 3 current + 4 voltage channels, suitable for testing most protection relays needing direct analog injection. The ZX-6002 provides maximum analog capacity (6 current + 6 voltage), essential for testing complex devices like transformer differential relays or multi-element schemes requiring numerous simultaneous analog injections. Both include Auxiliary DC output for powering external devices.
Technical Highlights for Practitioners:
1.Closed-Loop MU Testing: Simulates collector output, enabling true closed-loop testing of Merging Units.
2.Unmatched Timing Precision: Sub-microsecond dispersion and nanosecond-level synchronization accuracy (<25ns for Eth/FT3 Rx, <80ns for 1588, <400ns for IRIG-B) are critical for testing synchrophasor-based schemes and ensuring protection coordination.
3.Comprehensive Protocol Support: Handles the full spectrum from modern IEC 61850-9-1/9-2 SV & GOOSE to legacy FT3 formats seamlessly.
4.Abnormal Condition Simulation: Proactively test device resilience against corrupted SV, GOOSE, and FT3 frames.
5.Scalable Interface Options: Choose the model (6000, 6001, 6002, 6003) that best matches the digital/analog mix and channel density required for your specific testing scenarios (bay testing, device factory testing, system commissioning).
The ZX-6000 series represents a significant advancement in relay protection testing technology. The pure-optical ZX-6000 (and ZX-6003) is indispensable for the digital substation era, offering unparalleled capability in simulating, analyzing, and stressing IEC 61850 and FT3 based systems with extreme timing precision. For environments requiring a blend of digital communication testing and traditional high-power analog injection, the hybrid ZX-6001 and ZX-6002 models provide a powerful, integrated solution. Understanding the distinct capabilities within this series allows technicians and engineers to select the optimal tool for commissioning, maintaining, and troubleshooting the diverse range of protection and control equipment found in modern and transitioning power grids, from factory R&D to live substation deployment.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
