Powering Precision: The ZX-600 MU Test Set for Modern Substations

Title: Advanced Testing for Digital Substations: The ZX-600 MU Test Set

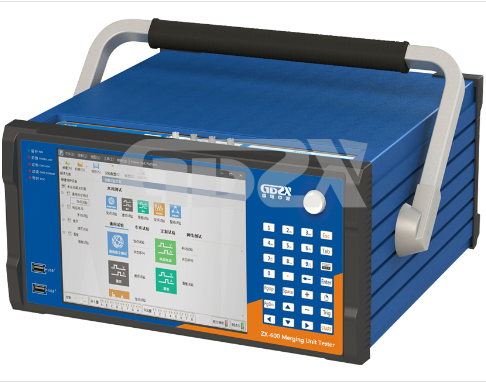

The evolution towards IEC 61850-based digital substations demands equally advanced test equipment. The ZX-600 Merging Unit (MU) Test Set emerges as a comprehensive solution designed specifically for validating the functionality and performance of critical Intelligent Electronic Devices (IEDs) like Merging Units, protection relays, control units, and smart terminals. Built to stringent specifications (DL/T 624-2010, IEC 61850) and leveraging a powerful PowerPC + X86 hybrid architecture, it sets a new benchmark compared to traditional test sets.

Beyond Conventional Limits: Core Architecture & Flexibility

Unlike many legacy test sets constrained by single-mode operation or limited interfaces, the ZX-600's modular design integrates high-performance power amplifiers within a compact, robust form factor. Its dual-processor platform provides the computational muscle necessary for complex real-time signal generation and analysis, a significant advantage over simpler devices. This foundation enables its defining capability: simultaneous analog and digital output. The ZX-600 seamlessly outputs traditional analog voltage/current, IEC 61850-9-1/9-2 Sampled Values (SV), FT3/Extended FT3, and GOOSE messages concurrently, all precisely synchronized. This eliminates the need for multiple specialized testers or cumbersome setups when testing hybrid systems or devices with both analog and digital interfaces.

Comprehensive Protocol Support: The Digital Backbone
The ZX-600 excels in the digital domain, offering extensive protocol support crucial for modern substations:

IEC 61850: 8 LC fiber ports (6x 100M, 2x 1G) configurable as SMV (9-1, 9-2) transmitters/receivers or GOOSE transmitters/receivers. GOOSE can share ports with SV 9-2. Graphical visualization of virtual wiring (SCD imports) clarifies complex signal flows.

IEC 60044 / FT3: Dedicated ST interfaces (6 Tx, 2 Rx) support FT3, Extended FT3, and DL/T 282 frames, with various baud rates and encodings (UART 2M-10M, Manchester 5M/10M/20M).

Precision Timing: Supports GPS/BD antenna, IRIG-B (fiber/electrical), PPS (fiber/electrical), and IEEE 1588 PTP for synchronization, and can act as a time source itself. This ensures test accuracy aligns with substation timing requirements.

Advanced Testing Capabilities: Efficiency & Depth
Moving beyond basic stimulus, the ZX-600 incorporates sophisticated features that streamline testing and uncover subtle issues:

Automation & Intelligence: Supports automated test sequences for protection devices ("one-click" testing) and allows users to create, save, and reuse intelligent test templates ("Test Projects"), drastically improving efficiency for periodic testing and troubleshooting compared to manual scripting on older devices.

Dynamic Signal Generation: Offers versatile manual/auto scanning modes (amplitude, phase, frequency, impedance, vectors, sequence components, power) with variable types (ramp, slip, composite).

Robust Analog & Digital I/O: High-accuracy, high-power analog outputs (120V/60VA, 30A/450VA per channel) meet demanding relay test needs. 12x analog small-signal I/O (±7V) interfaces with specialized equipment. Adaptive 8DI channels and 6DO channels (2x fast <0.1ms) provide flexible control and monitoring.

Negative Testing & Simulation: Uniquely simulates critical network and device anomalies – bad quality flags, jitter, excessive delay, packet loss, loss of sync, sequence errors, test mode, state number changes – essential for validating device resilience, a capability often limited or absent in traditional testers.

Fault Replay & Analysis: Replays COMTRADE files for realistic scenario testing and supports fault simulation. Integrated GOOSE/SV capture allows exporting to analysis tools like ZHNPA.

Enhanced Usability & Connectivity
Designed for the field engineer, the ZX-600 features:

10.4" Touchscreen: Intuitive control and visualization.

Robust Connectivity: Dual LAN ports, 3x USB, WiFi, and 4G options enable local and remote operation.

Diagnostics & Protection: Includes optical power measurement (single-fiber support), current open-circuit protection/alert, voltage overload/short protection, and thermal protection.

MMS Client: Reads/writes settings on compatible IEDs.

Technical Precision: Key Metrics

Analog Output Accuracy: Voltage (±4mV 0.2-2V, ±0.1% 2-120V), Current (±1mA 0-500mA, ±0.1% 500mA-30A)

Phase/Frequency: Phase ±0.1°, Freq <±0.001Hz (0-65Hz), <±0.01Hz (65-450Hz), <±0.02Hz (450-1000Hz)

Time Resolution: 1ms

DC Output Accuracy: ±0.2% (Voltage 0-160V, Current 0-20A)

Conclusion: The Integrated Solution
The ZX-600 MU Test Set represents a significant leap forward from conventional protection test sets. Its unique ability to generate synchronized analog, SV, GOOSE, and FT3 signals simultaneously, combined with powerful automation, sophisticated negative testing, deep protocol support, and robust I/O, makes it an indispensable tool for commissioning, maintaining, and troubleshooting modern digital substations. For engineers working with IEC 61850 systems, hybrid devices, or requiring the highest levels of test automation and fault scenario simulation, the ZX-600 delivers unparalleled capability and efficiency in a single, compact platform. It addresses the complex testing demands of the digital grid where traditional testers fall short.
