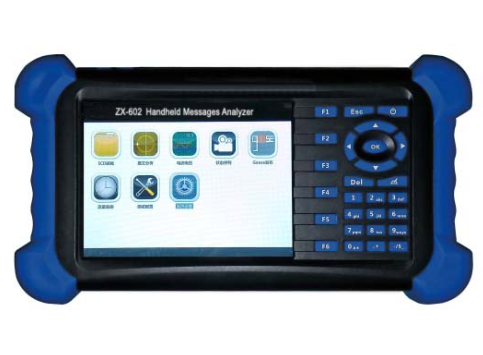

ZX-602 Handheld Message Analyzer Revolutionizes Smart Substation Testing
For technicians navigating the intricate digital layers of modern smart substations, precise, portable message analysis is non-negotiable. The ZX-602 Handheld Message Analyzer emerges as a critical tool, setting a new benchmark for field testing with its blend of high performance, comprehensive protocol support, and exceptional portability.
Beyond Basic Sniffing: A Unified Test Platform
Unlike simple protocol analyzers or bulky, single-function test sets, the ZX-602 consolidates essential testing capabilities into a single, rugged handheld unit (250x140x44mm, <1kg). It's engineered for the core components of IEC 61850-based substations: Protection Relays, Merging Units (MUs), Intelligent Electronic Devices (IEDs), and Intelligent Terminals (ITs). While traditional benchtop analyzers might offer deep protocol dissection or high channel counts, and basic handhelds might prioritize portability over power, the ZX-602 strikes a unique balance, delivering lab-grade precision in a field-deployable package.
Performance Benchmarks: Precision Meets Power
The ZX-602's core strength lies in its measurement accuracy and processing capability, driven by an industrial A9 + FPGA dual-core architecture:
Unmatched Timing Accuracy: Critical for synchrophasors, protection scheme validation, and latency testing.
Transmit Jitter: < 0.1 µs (Ethernet & Serial)
Receive Timestamp Accuracy: < 25 ns (Ethernet & Serial)
IEEE 1588 (PTP) Synchronization Accuracy: < 80 ns
IRIG-B/PPS Input Accuracy: < 400 ns
High-Speed Interfaces:
3 Pairs of 100/1000Base-FX Multi-mode Fiber Ports (LC, 1310nm): Support IEC 61850-9-1/2/LE, GOOSE, IEEE 1588, with built-in optical power measurement – a vital feature often missing in competitors.
1 Pair of Fiber Serial Ports (LC, 850nm, 2-10Mbps): Dedicated for IEC 60044-7/8 FT3 frames (Manchester/Async).
Smart Terminal Testing: 2 optically isolated Hard Inputs (10-250VDC/dry contact) and 2 Fast Output Relays (<10µs operate time, 0.5A @ 250V AC/DC) enable precise response time measurement of ITs – a task typically requiring additional, specialized equipment.
Operational Endurance: A substantial 11000mAh battery powers the vivid 5.7" capacitive touchscreen for over 6 hours, far exceeding many handheld instruments reliant on smaller batteries or frequent AC power.
Comprehensive Protocol Support: One Tool, Multiple Layers
The ZX-602 eliminates the need for multiple analyzers by supporting the entire smart substation communication stack:
Process Layer: IEC 61850-9-1/2/LE (Sampled Values), GOOSE, IEEE 1588v2 (PTP), IEC 60044-7/8 FT3.
Station/SCADA Layer: MMS (IEC 61850-8-1), SNTP.
Time Synchronization: IRIG-B (DC, AM modulated), PPS, IEEE 1588.
Configuration: SCL (System Configuration Language) import/export capability.
Engineer-Centric Usability
Moving beyond raw hex dumps, the ZX-602 presents results intuitively:
Visual Parameter Display: Electrical quantities (V, I, P, Q, f, etc.) derived from SV/FT3 streams are displayed graphically, freeing engineers from low-level protocol decoding.
Efficient Data Handling: USB port allows easy test configuration import, result export, and firmware updates.
Rugged Portability: Its compact form factor and weight make it ideal for testing in switchyards, control panels, or confined spaces where benchtop equipment is impractical.
Key Differentiators vs. Typical Handhelds or Benchtop Units
Feature | ZX-602 Strength | Typical Limitation (Competitors) |
Port Density | 3x GbE Fiber + 1x Serial Fiber | Often 1-2 GbE ports, Serial rarely included |
Timing Acc. | Rx TS <25ns, 1588 <80ns | Often >100ns Rx TS, 1588 >100ns-1µs |
Sync Inputs | Dedicated IRIG-B/PPS Fiber | Often absent or electrical-only |
IT Testing | Integrated Fast I/O (<10µs) | Requires external test set/relay unit |
Optical Pwr | Built-in Measurement (GbE ports) | Rarely available in handhelds |
Battery Life | >6 Hours (11000mAh) | Often 3-4 hours |
Protocols | Unified SV(9-1/2/LE)/GOOSE/FT3/MMS/SCL | Often specialized (e.g., SV-only, GOOSE-only) |
Conclusion: The Indispensable Field Companion
The ZX-602 Handheld Message Analyzer transcends the limitations of conventional test equipment. It delivers the timing precision and protocol depth required for commissioning, troubleshooting, and maintenance of digital substations, packaged in a truly portable, battery-operated device. By integrating capabilities often found only in larger, less mobile units or requiring multiple instruments, the ZX-602 empowers protection, commissioning, and maintenance engineers to work faster, smarter, and more confidently in the field. Its combination of performance, versatility, and rugged portability makes it an essential tool for ensuring the reliability and performance of modern smart grids.
