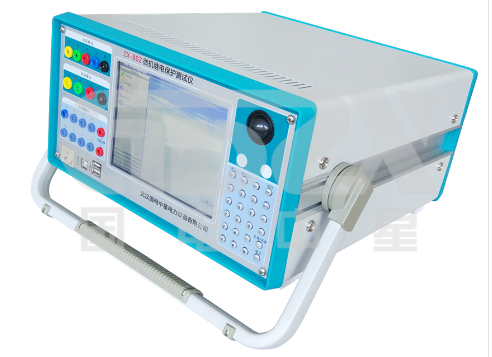

How the ZX-802 Microcomputer Relay Protection Tester Elevates Field Testing

Time:2025-06-06 Number:1

In the critical world of power system protection, accurate and efficient relay testing is non-negotiable. While numerous testers populate the market, the ZX-802 Microcomputer Relay Protection Tester distinguishes itself through a blend of robust performance, advanced features, and user-centric design, setting a higher benchmark for field engineers.


Core Platform Advantage:
Unlike many testers relying on embedded systems or proprietary OS, the ZX-802 leverages a high-performance Industrial PC (IPC) running Windows XP. This powerful foundation, coupled with a large color TFT display and multiple front-panel USB ports, provides a familiar, flexible environment for complex test configuration, seamless data handling, communication, and software updates – a significant step up from devices with limited interfaces or processing power.

Precision Outputs: Exceeding Standard Ranges
The ZX-802's output capabilities consistently surpass those found in many mid-range testers, providing the headroom needed for demanding applications:

AC Current:

Phase Output: 0-40A (Precision: 0.2%) vs. typical 0-30A/0.5% testers.

3-Phase Parallel Output: 0-120A (Max Power: 900VA for 10s) – crucial for testing high-current elements like generator differentials or feeder breakers, where many competitors max out around 60-90A.

Continuous Phase Current: 10A – exceeding the sustained output capability of many comparable units.

AC Voltage:

Phase Output: 0-120V (Precision: 0.2%), Line Output: 0-240V – offering ample voltage for testing distance elements or schemes requiring high polarizing voltages.

DC Current/Voltage: Provides substantial outputs (±10A/phase DC current, ±160V/phase DC voltage) with good precision (0.5%), essential for testing specific relay types or applying bias.

Testing Flexibility & Efficiency:
The ZX-802 shines in its testing methodology:

Variable Stepping & Automated Modes: The ability to define variables (voltage/current), set step sizes, and choose from Manual, Semi-Automatic, or Fully Automatic modes streamlines the testing of critical parameters like action/return values, times, and automatic return factor calculation. This level of automation is often more limited or cumbersome in simpler testers.

Focused Workflow: Recognizing the prevalence of "four-phase voltage and three-phase current" testing, the interface and workflow are optimized for this common scenario, enhancing speed and reducing setup errors compared to less intuitive designs.

Critical Measurement Precision:

Timing Accuracy: <0.1ms resolution across a vast range (0.1ms to 9999s) is essential for verifying high-speed protection schemes (e.g., busbar, line differential). This high precision matches or exceeds top-tier testers and is significantly better than many basic units.

Output Accuracy: 0.2% precision on fundamental AC outputs ensures reliable calibration and performance verification of sensitive protection relays.

Versatile Signal Generation:

Wide Frequency Range: 20-1000Hz (fundamental) allows testing frequency relays and simulating off-nominal conditions.

Harmonic Injection: Capability for 1-20 harmonic injection is vital for testing relays susceptible to harmonic distortion or specialized functions, a feature often absent or limited in simpler models.

Robust I/O & Practical Design:

Digital I/O: 10 inputs and 8 outputs provide sufficient capacity for testing complex logic schemes involving contact inputs and trip/close outputs.

Portability: At 18kg (400x360x160mm), it remains reasonably portable for a device with its output capabilities, fitting well within field deployment requirements.

Operating Range: -10°C to +50°C ensures reliable operation in diverse substation environments.
The ZX-802 Microcomputer Relay Protection Tester is more than just a standard relay tester. Its combination of a powerful IPC platform, superior output ranges (particularly the 120A parallel current and 240V AC line voltage), high precision (0.2% AC, <0.1ms timing), flexible automated testing modes, and harmonic capability positions it distinctly above many conventional field testers. For technicians and engineers demanding robust performance, efficiency in complex testing scenarios, and the ability to handle modern protection relays with confidence, the ZX-802 represents a compelling advanced solution that delivers significant advantages in accuracy, capability, and workflow efficiency. It effectively bridges the gap between basic functionality and high-end laboratory-grade equipment, making it an excellent investment for rigorous field testing.
