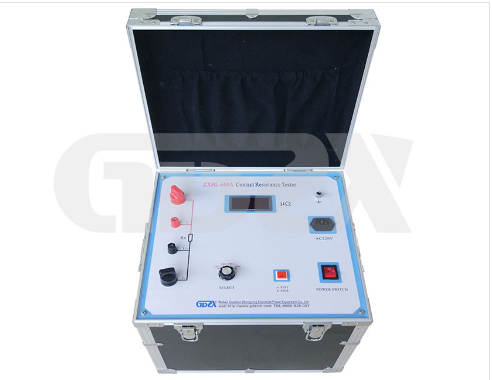

High-Current Precision: The ZXHL-600A Contact Resistance Tester for Demanding HV Switching Applications

Accurate measurement of contact resistance is paramount in ensuring the reliability and safety of high-voltage (HV) switching equipment like circuit breakers and disconnect switches. Elevated contact resistance, often caused by surface contamination, oxidation, or mechanical wear, leads to excessive heat generation under load, accelerating failure and posing significant operational risks. While traditional testers have served a purpose, the ZXHL-600A Contact Resistance Tester addresses critical limitations, offering a robust solution for maintenance teams and manufacturers.

Beyond Impulse: The Power of Sustained High Current

A key differentiator of the ZXHL-600A is its use of high-frequency switching power supply technology combined with advanced digital circuitry to deliver a sustainable DC test current. Unlike older impulse-type testers that apply a brief, high-current pulse, the ZXHL-600A provides a stable, continuous current output (user-selectable: 100A, 200A, 400A, or 600A). This sustained current is crucial for:

1.Effectively Breaking Through Oxide Films: The constant high energy effectively breaks down resistive oxide layers and surface films that form on contacts over time. Impulse testers often fail to penetrate these layers fully, leading to misleadingly low resistance readings that don't reflect the contact's true condition under operational load.

2.Achieving True Accuracy: By overcoming surface barriers, the ZXHL-600A provides measurements (range: 1-1999.9μΩ, resolution: 1μΩ) that genuinely represent the bulk contact resistance, enabling more accurate assessment of contact health. Its high accuracy of 0.50% ensures reliable data for critical decision-making.

Engineering for Stability and Reliability in the Field

HV substations and test labs are electrically noisy environments. The ZXHL-600A is engineered for stability under these demanding conditions:

1.Superior Noise Immunity: Advanced digital signal processing ensures readings remain remarkably stable (±1 digit fluctuation) even under strong electromagnetic interference, a common challenge when testing energized equipment or within active substations. Reproducibility is excellent.

2.Temperature Resilience: Precision resistors with low temperature coefficients minimize measurement drift caused by ambient temperature variations (-10°C to 40°C operating range), guaranteeing consistent results regardless of the testing environment.

3.Rugged Duty Cycle: Designed for practical use, it offers defined maximum test durations (e.g., 600s at 100A, 60s at 200A, 10s at 400A/600A), sufficient for thorough testing while protecting the instrument.

Contrasting Approaches: ZXHL-600A vs. Traditional Impulse Testers

Practical Design for Technicians

Recognizing the needs of technicians working in switchyards and on shop floors, the ZXHL-600A emphasizes usability:

1.Compact and Portable: Relatively small dimensions (350x350x510 mm) and weight (30kg) make it significantly easier to transport and position compared to bulkier alternatives.

2.Clear Readout: The bright 3.5-digit LED display provides unambiguous readings.

3.Reporting Flexibility: The option for a built-in printer (or operation without one) allows immediate hardcopy results for reports and records directly at the test site.

4.Standard Power: Operates from common AC 220V ±10%, 50Hz power sources.

Conclusion: The Standard for Critical Measurements

The ZXHL-600A Contact Resistance Tester represents a significant advancement over older impulse methods. Its core strengths – the ability to deliver sustained high current for reliable oxide penetration, combined with exceptional stability and high accuracy achieved through modern digital and power supply technology – make it an indispensable tool for:

1.Preventive Maintenance Programs: Accurately identify deteriorating contacts in circuit breakers, GIS, and disconnect switches before they cause failures.

2.HV Switchgear Commissioning: Verify contact integrity and assembly quality in new or refurbished equipment.

3.Manufacturing Quality Control: Ensure switches meet stringent resistance specifications during production.

For technicians and engineers responsible for the health of critical HV infrastructure, the ZXHL-600A provides the confidence that contact resistance measurements are not just taken, but are truly accurate and reliable, forming a solid foundation for system safety and reliability.
