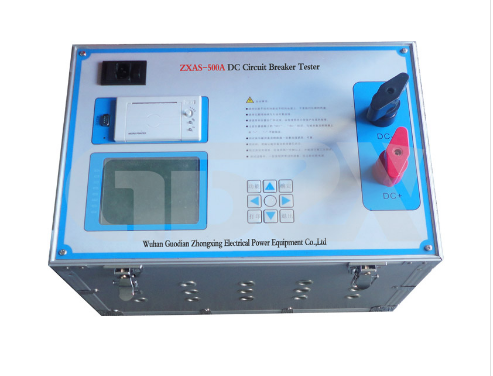

ZXAS-500A: Advanced DC Circuit Breaker Testing for Modern Power Systems
Accurate verification of DC circuit breaker performance is critical for safety and reliability in applications ranging from renewable energy integration and battery storage systems to traction power and industrial DC distribution. The ZXAS-500A DC Circuit Breaker Tester represents a significant leap forward from traditional testing methodologies, offering engineers a powerful, precise, and user-centric solution for currents spanning 1A to 500A.
Moving Beyond Traditional Limitations
Historically, DC breaker testing often relied on cumbersome setups involving resistor banks, basic power supplies, and manual data recording. These approaches frequently suffered from limitations:
Limited Range & Precision: Difficulty achieving high currents consistently with low ripple and stability.
Manual Processes: Time-consuming setup, operation, and data capture prone to human error.
Insufficient Data Handling: Lack of integrated storage, analysis, and reporting capabilities.
Safety Concerns: Rudimentary or absent protection features during high-current testing.
Scalability Issues: Challenges in automating tests or integrating with broader systems.
The ZXA-500A directly addresses these shortcomings through its integrated design and advanced features.
Key Technical Capabilities of the ZXAS-500A
High-Precision Current Generation: Utilizing advanced power electronics control, the tester delivers currents from 0-500A with exceptional characteristics:
Stability: ≤ 0.5% output current stability.
Ripple: < 5% testing current ripple coefficient.
Resolution & Control: Continuous adjustability and fine control essential for characterizing breaker trip curves accurately.
Sophisticated Measurement System:
Multi-Range Sensing: Automatically switched high-precision current sensors ensure accuracy across the entire 0-500A range.
High-Resolution Acquisition: A 14-bit AD conversion chip captures test data with significant resolution and capacity.
Comprehensive Testing Modes: Supports both critical DC breaker characterization tests:
Ampere-Second (I²t) Characteristic Test: Verifies the energy let-through characteristic.
Through Current Characteristic Test: Determines the breaker's response time at specific current levels.
Enhanced Data Management & Usability:
Standalone Operation: Features a 320x240 LCD, thermal printer, and intuitive keyboard for field use.
PC Connectivity: Enables remote control, detailed data import/export, advanced analysis, report generation, and graphing via software.
Robust Storage: Automatically saves up to 200 test results, preserved even during power failure.
Built-in Protection & Reliability:
Safety: Integrated protection against overheat, over-current, and over-voltage conditions.
Robustness: Designed with strong electromagnetic compatibility (EMC) and anti-interference capabilities for reliable operation in electrically noisy environments.
Practical Specifications:
Timing: 0-9999s range with 0.001s resolution.
Power: AC 220V ±10%, 50Hz ±0.5Hz.
Environment: Operates from -20°C to 50°C.
Form Factor: 470 x 320 x 460mm (LxWxH), 25kg – portable yet substantial.
ZXAS-500A vs. Conventional Methods: A Clear Advantage
Feature | Traditional Methods | ZXAS-500A Tester | Advantage |
Current Quality | Often high ripple, unstable | <5% ripple, ≤0.5% stability | Higher accuracy, reliable trip point detection |
Precision | Limited by basic instruments | 14-bit AD, Auto-ranging Sensors | Finer measurement resolution across full range |
Automation | Manual control & recording | PC Control, Auto Storage (200 tests) | Faster testing, eliminates errors, easy data access & archiving |
Testing Modes | Limited or cumbersome setup | Integrated I²t & Through Current Modes | Streamlined setup for standard compliance tests |
Data Handling | Paper records, manual graphs | Onboard Reports, PC Graphing/Export | Professional reporting, trend analysis, digital records |
Safety | Often minimal or external | Integrated Overheat/Overcurrent/Overvoltage | Enhanced operator and equipment protection during testing |
EMC/Reliability | Susceptible to noise | Designed for Good EMC | Consistent performance in harsh electrical environments (e.g., substations) |
The ZXAS-500A DC Circuit Breaker Tester is engineered for the demands of modern DC power systems. By combining high-precision power electronics, sophisticated measurement technology, robust data management, and integrated safety features, it provides electrical engineers and testing technicians with a tool that significantly outperforms traditional approaches. Its ability to perform both Ampere-Second and Through Current characteristic tests accurately and efficiently, coupled with seamless PC integration for analysis and reporting, makes it an indispensable asset for ensuring the reliability and safety of DC protection systems operating at currents up to 500A. This instrument represents not just an improvement, but a necessary evolution for effective DC breaker validation in increasingly critical applications.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
