ZX5050 Three-Phase Programmable Test Source: A Technical Overview

Introduction
      In the fields of power metering and electrical testing, the demand for versatile, accurate, and portable test equipment is paramount. The ZX5050 Three-Phase Programmable Test Power Supply represents a significant step forward, integrating a precision power source and measurement functions into a single, compact unit. This article provides a technical examination of the ZX5050, highlighting its key features and performance in comparison to conventional test setups.

Integrated Source-and-Measure Capability

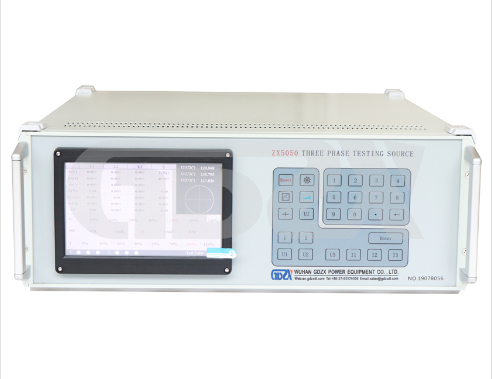

A defining characteristic of the ZX5050 is its "source-and-measure" architecture. Unlike traditional configurations that might require separate signal generators, power amplifiers, and precision meters, the ZX5050 combines these functions. It features an embedded energy meter that directly displays key parameters—including voltage, current, frequency, phase, active/reactive/apparent power, and power factor—on a large TFT color touchscreen. This integration simplifies test procedures, reduces setup time, and minimizes potential connection errors, offering a clear advantage in efficiency for laboratory and field service applications.

Performance and Accuracy
The ZX5050 delivers output specifications suitable for a wide range of calibration and testing tasks. It provides three-phase voltage from 10V to 450V and current from 1mA to 20A (with options up to 100A), both with a stability of 0.02% over two minutes. The output and display accuracy for basic electrical parameters is 0.50%, with frequency accuracy at 0.02Hz. When compared to basic test sources, these accuracy figures, combined with low distortion (<0.5%) and high resolution (e.g., 0.01° for phase, 0.001Hz for frequency), ensure reliable and repeatable test results, which are critical for calibrating modern electronic energy meters.

Operational Flexibility and User Interface
The device offers exceptional flexibility. Its "Intelligent Range" function allows users to define custom nominal voltage and current ranges. All test points and adjustment step sizes are then referenced to these user-defined values, making the interface highly intuitive. It features pre-programmed test points for voltage (e.g., 80%-120%), current (1%-120%), and phase/power factor (0.5L to 0.5C), facilitating rapid execution of standard tests. Fine adjustments are possible with multiple step sizes (10%, 1%, 0.1%, 0.01% for amplitude; 10°, 1°, 0.1°, 0.01° for phase). The combination of touchscreen control and physical membrane buttons provides an efficient user experience, a notable improvement over systems reliant solely on rotary encoders or complex menu structures.

Protection and Reliability
Robust protection mechanisms are crucial for safeguarding both the unit under test and the test equipment itself. The ZX5050 incorporates comprehensive protection features, including current limiting, amplifier protection, voltage short-circuit protection, current open-circuit protection, and thermal protection. This level of integrated safety is often an area where simpler power sources may be lacking, enhancing the overall reliability and longevity of the system.

Conclusion
The ZX5050 Three-Phase Programmable Test Power Supply stands out as a sophisticated and practical solution for technicians and engineers in power metering and electrical laboratories. Its integrated design, high accuracy, operational flexibility, and robust protection make it a compelling alternative to more complex and less portable traditional test systems. For technical personnel seeking a versatile instrument for both lab-based and on-site testing applications, the ZX5050 offers a powerful and user-friendly platform.
