Precision and Flexibility in ACPower Source Calibration: An Analysisof theZX5080

Introduction

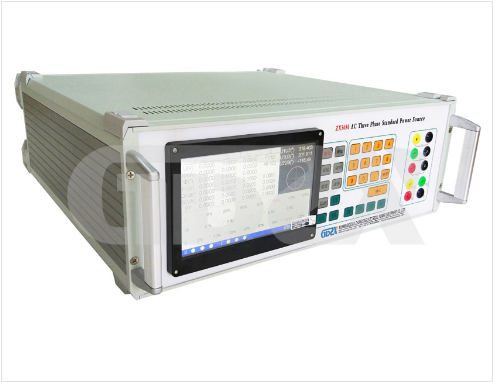

For engineers and technicians working in power meter calibration, energy meter testing, and power quality simulation, a high-precision, programmable AC power source is an indispensable tool. The ZX5080 AC Three Phase Standard Power Source represents a significant step forward in this category. This article provides a technical analysis of the ZX5080, contrasting its capabilities with more basic power sources to highlight its suitability for demanding calibration and test applications.

Key Features and Technical Differentiation

While a standard programmable power supply might focus solely on voltage and current output, the ZX5080 is engineered as a complete standard source with integrated metrology. Its defining characteristics can be compared against less sophisticated equipment.

1. Integrated Precision Metrology vs. External Measurement
A fundamental differentiator is the ZX5080's built-in standard energy meter. Unlike setups requiring external precision meters for feedback, the ZX5080 provides direct digital closed-loop feedback for parameters like Voltage (U), Current (I), Phase Angle (Φ), Power (W, VAR, VA), and Power Factor (PF). This integrated approach simplifies system architecture, reduces potential connection errors, and enhances overall accuracy and stability.

• Comparison: Traditional systems use a separate source and meter, requiring calibration of the entire system. The ZX5080's integrated design minimizes interconnections, potentially offering better long-term stability (specified at ± 60 PPM/year).

2. Independent Phase Control vs. Linked Outputs
The ZX5080 offers independent control of each phase's voltage and current circuits. This allows technicians to simulate unbalanced grid conditions, test polyphase meters under stress, and create specific phase angle shifts with high resolution (0.001°) and accuracy (0.05°).

• Comparison: Many standard three-phase sources link the phases or have limited independent control. The ZX5080's fully independent control provides the flexibility needed for advanced, real-world scenario testing that basic sources cannot achieve.

3. High Resolution and Auto-Ranging vs. Manual Ranging
With a resolution of 6 effective digits across voltage, current, and power parameters, and 0.01% RG adjustment fineness, the ZX5080 allows for extremely precise setting of test points. The auto-shift range functionality automatically selects the optimal range (e.g., 100V, 220V, 380V for voltage), preventing user error and streamlining the testing process.

• Comparison: Lower-end sources often feature lower resolution (4 or 5 digits) and require manual range switching, which is slower and prone to misapplication, potentially damaging the device under test or the source itself.

4. Comprehensive Output and Protection
The device is designed for robustness in a lab environment. Key specifications include:

• Output Power: 25 VA/phase for voltage, 20 VA/phase for current, sufficient for driving a wide range of meters and relays.

• Low Distortion: <0.2% for voltage and <0.5% for current under non-capacitive load, ensuring a clean, high-fidelity power signal crucial for accurate calibration.

• Protection: A suite of protections (over-current, over-voltage, short-circuit, over-heat, etc.) safeguards both the ZX5080 and the expensive equipment connected to it—a critical feature often less comprehensive in basic models.

Advanced Capabilities for Complex Testing

The ZX5080 extends beyond fundamental power generation:

• Harmonic Output: The ability to inject 2nd to 31st harmonics allows engineers to test devices under power quality disturbances, such as evaluating a meter's accuracy in the presence of harmonic distortion.

• Wide Frequency Range: A frequency range of 40 Hz to 70 Hz with 0.001 Hz resolution and 0.005 Hz accuracy is ideal for testing frequency-dependent relays and meters used in various power systems (e.g., 50Hz vs. 60Hz grids).

• Communication Interface: The RS232 interface enables PC control and software upgrades, facilitating automated test sequences and future-proofing the instrument.

Accuracy Levels: 0.05% vs. 0.01%

The availability of two accuracy grades is a key decision point. The 0.01% version is targeted at national metrology institutes and primary calibration labs where the highest possible standard is required. The 0.05% version offers excellent performance for most secondary calibration and R&D applications, often at a more accessible price point. This choice allows labs to select the appropriate tool for their specific accuracy budget.

Conclusion

The ZX5080 AC Three Phase Standard Power Source is not merely a power supply; it is a sophisticated calibration instrument. Its combination of integrated metrology, independent phase control, high resolution, and advanced features like harmonic generation places it in a high-performance category. When contrasted with simpler power sources, the ZX5080's value becomes clear: it delivers the precision, flexibility, and reliability necessary for modern power measurement calibration and complex power system simulation tasks. For technicians and engineers, understanding these capabilities ensures the correct application of the instrument to achieve valid, high-accuracy test results.
