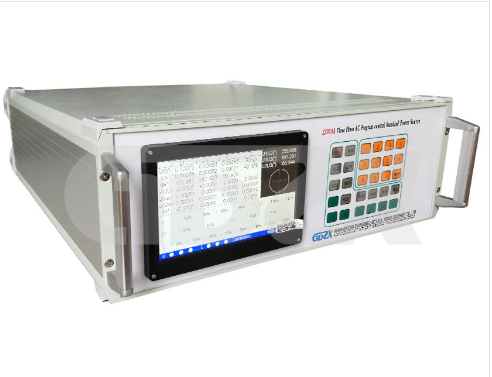

Precision Power: The ZX3030A as a Modern Standard Source

In the fields of electric energy metering and power system testing, the demand for highly accurate, stable, and versatile AC power sources is paramount. The ZX3030A Three-Phase AC Programmable Standard Power Source represents a significant leap forward, embodying a modern "meter-power combination" architecture that sets a new benchmark for performance and usability. This article examines its key technical advantages, particularly when compared to traditional solutions.

Beyond Conventional Designs: The Integrated Approach

Traditional calibration setups often involve a separate, high-precision power source and a reference standard meter, connected via external wiring. This approach, while functional, introduces potential points of error, complexity, and bulk.

The ZX3030A integrates a built-in standard energy meter directly into the power source, creating a full digital closed-loop feedback system. This integration is a fundamental differentiator. It means the source continuously monitors its own output (U, I, Φ, F, W, VAR, VA, PF) and makes real-time adjustments to ensure exceptional stability and accuracy. For a technician, this translates to higher confidence in test results and a simpler, more streamlined workflow.

Technical Superiority in Key Parameters

The specifications of the ZX3030A speak to its high-end design, leveraging advanced components like CPLD chips and high-resolution A/D converters.

1.Voltage and Current Output: With an accuracy of better than 0.05% of Reading (RG) and a resolution of 6 effective digits for both voltage and current, the ZX3030A outperforms many general-purpose sources. Its stability of <0.01% RG/min for voltage and <0.02% RG/min for current ensures that readings remain consistent over time, a critical factor for prolonged calibration tests. The automatic ranging (e.g., 57.7V to 380V for voltage) simplifies operation and prevents range-setting errors.

2.Power and Power Factor Accuracy: The power output accuracy of better than 0.05% RG is a direct benefit of the integrated meter-source design. A key metric for energy meter testing is power factor, and here the ZX3030A excels with an impressive accuracy of 0.0005 across the full range from -1 to +1. This level of precision is essential for accurately calibrating modern smart meters at both unity and low power factors.

3.Fine Control and Flexibility: The device offers exceptional control granularity. Phase angle can be adjusted with a resolution of 0.001° (accuracy 0.02°), and frequency can be set with a resolution of 0.001 Hz (accuracy 0.002 Hz). This fine control, combined with the ability to output harmonics from the 2nd to the 51st order, makes the unit suitable for testing a wide array of devices under various grid conditions, including harmonic pollution.

Contrasting with Legacy and Entry-Level Equipment

1.vs. Older Standard Sources: Compared to older generation standard sources that may use analog potentiometers for adjustment and lack digital closed-loop control, the ZX3030A offers vastly superior stability, lower distortion (<0.1%), and automated features. The large TFT color LCD and touch/mask button interface provide a clear operational advantage over rudimentary displays and complex menu structures.

2.vs. Basic Programmable Sources: While entry-level programmable sources might offer similar output ranges, they typically lack the integrated reference-grade metrology. Their accuracy might be specified at 0.1% of Full Scale (FS) or worse, which can lead to significant errors, especially when testing at lower percentages of the range. The ZX3030A's 0.05% of Reading specification is inherently more accurate across its entire output span.

Practical Applications and Features for Technicians

For technicians in calibration labs and meter manufacturing, the ZX3030A provides practical benefits:

1.Simplified Workflow: The ability to test single-phase and three-phase, active and reactive energy meters with one integrated instrument saves time and reduces setup complexity.

2.Robust Protection: Comprehensive protection (over-current, over-voltage, short-circuit, over-heat) safeguards both the unit under test and the expensive standard source itself.

3.Future-Proofing: The RS-232 interface allows for PC control and, importantly, software upgrades, ensuring the instrument can adapt to new testing requirements.

Conclusion：

The ZX3030A Three-Phase AC Programmable Standard Power Source is not merely an incremental improvement but a holistic rethinking of what a standard source should be. By integrating metering and power generation into a single, digitally-controlled platform, it delivers a level of accuracy, stability, and user convenience that surpasses traditional multi-box solutions. For technicians focused on precision power measurement and energy meter calibration, it represents an optimal combination of advanced performance and operational efficiency.
