Advanced Power Testing: ZX3030D Redefining Precision and Versatility

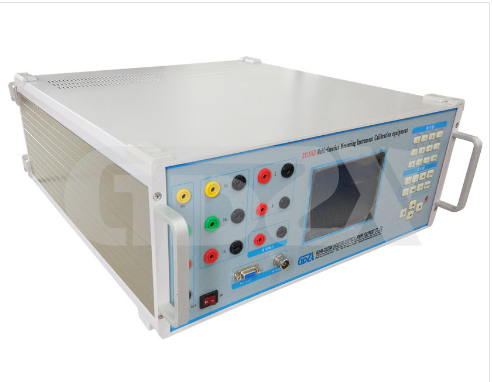

In the field of electrical testing and calibration, precision, reliability, and versatility are paramount. The ZX3030D Multifunctional Electrical Meter Verification Device stands out as a state-of-the-art solution, integrating advanced digital signal processing and high-precision conversion technologies to meet the rigorous demands of modern calibration tasks. This article provides a technical overview of the ZX3030D, highlighting its key features, performance metrics, and comparative advantages over conventional systems.

Key Features and Technological Advancements
The ZX3030D leverages a robust DSP-based digital signal synthesis and data acquisition system, ensuring stable and accurate output. Unlike traditional setups that often require separate standard meters, this device combines source and meter functionalities, supporting manual or automated calibration of indicators, energy meters, and transducers. Its comprehensive error rating of 0.05% (0.1% for energy measurement) surpasses many legacy systems, which typically achieve 0.1% or higher errors.

A significant advantage is its wide range of voltage and current outputs—covering AC/DC from 15V to 600V and 20µA to 25A, with automatic ranging and a fine adjustment resolution of 0.002% of the nominal value. This flexibility eliminates the need for multiple dedicated sources, streamlining workflows. In contrast, older devices often feature limited ranges and manual switching, increasing setup time and potential errors.

Enhanced Usability and Capabilities
Equipped with a large LCD and intuitive Chinese menu navigation, the ZX3030D simplifies operation while displaying primary and secondary values, errors, and real-time results. It supports harmonic testing up to the 31st order (odd-order beyond 11th), a feature rarely available in standard calibrators. Moreover, its ability to drive capacitive loads up to 1µF at 100V and multiple protection mechanisms (e.g., current limiting, auto-shutdown) ensure reliability in diverse conditions.

Performance Comparison
When compared to typical verification devices, the ZX3030D excels in accuracy and stability. For instance, its frequency precision (±0.01Hz), phase accuracy (±0.2°), and three-phase power accuracy (0.05%) outperform many mid-range calibrators, which often exhibit higher deviations. The device’s 0.02% measurement precision for current and voltage further enhances its suitability for high-accuracy applications, such as calibrating smart meters or precision transducers.

Portability and Durability
Housed in a compact German-standard case (432×428×175mm, 18kg), the ZX3030D is designed for portability without compromising robustness. It undergoes rigorous testing, including overload, shock, and aging tests, ensuring exceptional reliability—a critical factor for field technicians compared to bulkier, less resilient alternatives.

Conclusion
The ZX3030D sets a new benchmark in electrical calibration, offering unmatched precision, multifunctionality, and user-centric design. For technical professionals, it represents a efficient, all-in-one solution that reduces equipment dependency and enhances testing accuracy, making it an ideal choice for modern power system maintenance and compliance verification.
