Advanced Portable Three-Phase Testing: The ZX3030C Analyzed

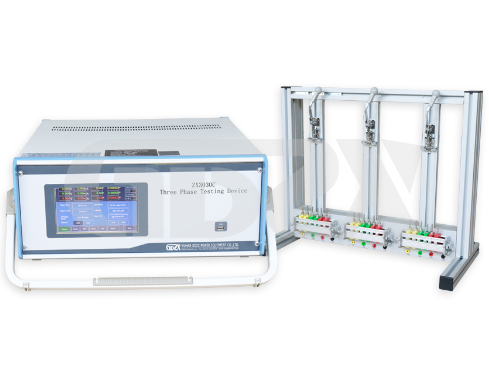

For technicians and engineers in the field of energy metering and power quality, the precision and versatility of testing equipment are paramount. Traditional testing often involves bulky, separate units for power generation and measurement, leading to complex setups and potential points of failure. The ZX3030C Portable Three-Phase Testing Device represents a significant evolution, integrating a high-precision standard meter and a stable power source into a single, ruggedized portable unit. This article examines its key features and technical advantages against conventional setups.

Key Differentiators: Integrated Design and High-Fidelity Output

The most striking advancement of the ZX3030C is its Integrated Structure of Meter and Power Source. Unlike traditional systems requiring separate calibrators and standard meters, the ZX3030C unifies these functions. This integration simplifies connections, reduces cabling errors, and enhances overall system reliability. Technicians can directly read electrical parameters via its software, streamlining the calibration process for Class 1.0 and below three-phase energy meters.

At the heart of its performance is the use of Direct Digital Synthesis (DDS) technology, combined with a CPLD and a 32-bit embedded system. This architecture ensures exceptionally stable signal output with minimal distortion (≤0.5%). Compared to older analog signal generators, the ZX3030C offers superior frequency and phase resolution (0.1Hz and 0.1° fineness), crucial for testing meters under varying grid conditions (45-65Hz) and performing vector analysis.

Further enhancing its efficiency is a digital power amplifier with over 90% efficiency. Contrasted with traditional linear amplifiers, this design generates less heat, allows for a more compact form factor, and provides a cleaner output signal due to its high 300kHz carrier frequency.

Technical Specifications: A Closer Look for the Technician

A deep dive into the specifications reveals its capability for demanding applications:

• Unmatched Accuracy: The device itself boasts an instrument accuracy level of 0.05% or 0.1%. Its built-in standard meter maintains an active power accuracy of 0.05% (for PF≥0.5), making it a trustworthy reference for calibrating field meters.

• Wide Dynamic Range: The output flexibility is impressive. Voltage can be adjusted from 0-120% of ranges like 3x100V and 3x380V. The current output spans from a very low 25mA up to 100A, with a minimum output of 1mA, allowing for testing under light-load conditions where many meters are prone to error.

• Advanced Testing Capabilities: Beyond basic calibration, the ZX3030C supports sophisticated power quality tests. It can generate 2nd to 21st-order harmonics and simulate voltage interruptions and dips. This is a critical advantage over basic test sets, enabling technicians to verify meter performance under non-ideal, real-world grid conditions.

• Enhanced Functionality: Features like the built-in OCXO (Oven-Controlled Crystal Oscillator) for high-precision clock error calibration and the ability to store data for 1,000 meters on-device underscore its focus on comprehensive, field-ready utility work. The optional 485 communication interface allows for protocol testing of smart meters.

Contrast with Conventional Equipment

Compared to a typical setup of a separate three-phase source and a standard meter, the ZX3030C offers:

• Portability & Robustness: Its aluminum alloy case and detachable frame are designed for field use, unlike often rack-mounted or benchtop traditional equipment.

• Operational Simplicity: The integrated system eliminates the need for inter-device calibration and complex wiring.

• Comprehensive Data Analysis: The large color LCD directly displays vector diagrams and waveform charts, providing immediate diagnostic information without a PC.

Conclusion：

The ZX3030C Portable Three-Phase Testing Device is not merely an instrument but a consolidated test platform. It effectively bridges the gap between the high accuracy of lab equipment and the rugged portability required for field service. For technicians seeking to improve efficiency, accuracy, and the scope of their meter testing and validation workflows, the ZX3030C presents a superior, modern alternative to conventional disaggregated systems. Its combination of integration, precision, and advanced features makes it an invaluable tool for ensuring the accuracy and reliability of the modern energy grid.
