Insulation Resistance Testing: ZX2671 vs. Traditional Megohmmeters
For electrical technicians and engineers, accurately assessing insulation integrity is a critical safety and maintenance task. The insulation resistance (IR) test is a fundamental procedure for this purpose. While traditional megohmmeters have been the industry standard for decades, modern digital test sets like the ZX2671 offer significant advancements in functionality, safety, and ease of use. This article provides a technical overview of the ZX2671 and contrasts its capabilities with older analog instruments.
The Evolution of IR Testing: From Analog to Digital
Traditional hand-cranked megohmmeters, while robust, rely on manual operation and analog needle displays. This can introduce human error in reading the scale and requires the user to maintain a steady cranking speed to generate the correct test voltage. Furthermore, they typically lack advanced safety features and data-holding capabilities.

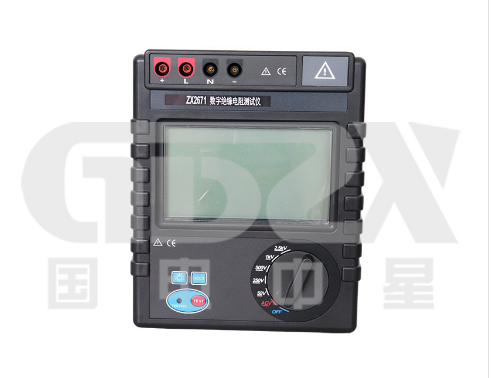

The ZX2671 Insulation Resistance Test Set represents the evolution of this essential tool. It is a fully digital, microprocessor-controlled instrument designed for precision, safety, and efficiency in demanding electrical environments.
Key Technical Capabilities of the ZX2671
The ZX2671 is a high-performance instrument with a broad set of features that streamline the testing process:
Wide Testing Range: It offers multiple rated test voltages (50V, 250V, 500V, 1000V, 2500V) and can measure insulation resistance from 0.1 MΩ up to an impressive 200 GΩ (extendable to 400 GΩ), making it suitable for a vast range of equipment from low-voltage cables to high-voltage transformers and motors.
Enhanced Safety: A primary differentiator from older models is its integrated safety. The instrument features a voltage monitoring function that prohibits testing if the live circuit voltage exceeds 36V, protecting both the operator and the equipment under test.
Automatic Functions: The ZX2671 automates several critical steps:
Automatic Discharge: Safely discharges capacitive test objects upon completion, with a clear visual indicator.
Automatic Shutdown: Powers down after 15 minutes of inactivity to conserve battery life.
Test Timer: Allows for standardized timed tests (e.g., the 1-minute spot test) and can automatically stop the test.
Multi-Function Display: The large, backlit LCD simultaneously displays insulation resistance value, test voltage, and elapsed time, eliminating the need to interpret multiple scales.
Additional Voltage Measurement: Beyond IR testing, it can measure both AC and DC voltages up to 750V, consolidating tools for preliminary checks.
Comparative Analysis: ZX2671 vs. Traditional Megohmmeters
Feature | Traditional Analog Megohmmeter | ZX2671 Digital Test Set |
Operation | Manual cranking | Battery-powered, push-button |
Display | Analog needle scale | Digital LCD with backlight |
Safety | Basic; relies on user procedure | Active safety lock (>36V inhibit), automatic discharge |
Data Readability | Prone to parallax error | Clear, direct numerical readout; Data Hold function |
Output Stability | Dependent on user cranking speed | Electronically regulated and stable |
Functionality | IR test only | IR test + AC/DC Voltage measurement |
Test Process | Fully manual | Automated timing and shutdown |
Output Current | Typically low (µA range) | High short-circuit current (≥2mA), better for capacitive loads |
Why the ZX2671 is a Superior Choice for Technicians
Improved Accuracy and Resolution: The digital display provides unambiguous readings, removing the guesswork associated with analog scales. This leads to more reliable and repeatable results.
Enhanced Operator Safety: The automatic discharge and live-circuit voltage lockout are critical features that significantly reduce the risk of electric shock or damaging equipment that has not been properly isolated.
Efficiency in the Field: The ability to perform timed tests automatically and measure voltage with the same unit saves time. The robust, dust and moisture-resistant design ensures reliability in harsh field conditions, from telecom sites to industrial plants.
Handling Capacitive Loads: With a maximum capacitive load capability of 1µF and a strong 2mA short-circuit current, the ZX2671 can quickly charge and test long runs of cable or large motors, yielding faster, more stable readings compared to low-power analog meters.
Conclusion
For today's technician, the ZX2671 Insulation Resistance Test Set is more than just a megohmmeter; it is a comprehensive diagnostic tool. Its digital core, combined with advanced safety protocols and multi-functional capabilities, represents a significant leap forward from traditional instruments. By providing precise, safe, and efficient testing, the ZX2671 enables maintenance teams to better ensure the reliability and safety of electrical assets, from simple wiring to complex industrial machinery. Adopting such modern test equipment is no longer a luxury but a best practice for any serious electrical professional.
