ZX2571: A Technical Analysis for Ground Resistance Testing

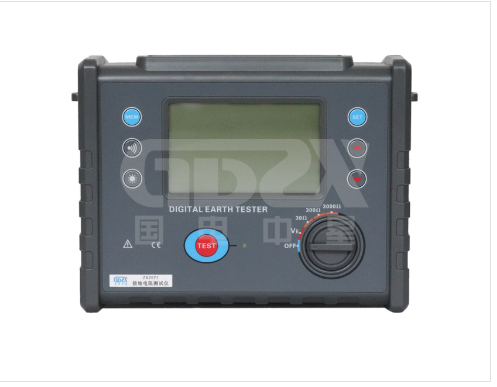

For technicians in telecommunications, power utilities, and industrial maintenance, ensuring a reliable grounding system is non-negotiable. The ZX2571 Earth Resistance Test Set stands as a modern, microprocessor-based solution designed to streamline and enhance the accuracy of these critical measurements. This article provides a technical overview of the ZX2571, contrasting its capabilities with foundational testing principles.

Core Capabilities and Measurement Principles

At its heart, the ZX2571 is engineered to perform precise earth ground resistance measurements using the rated current change-pole method with a 128Hz test current (>20mA). This fall-of-potential method is the industry standard for accuracy. The instrument covers a wide resistance range from 0.01Ω to 3000Ω with an accuracy of ±1.5%rdg±5dgt, making it suitable for everything from low-resistance grounding grids to more challenging soil conditions.

A key feature for field technicians is its operational flexibility. It supports both precise 3-pole (3-wire) and simple 2-pole (2-wire) measurement modes. The 3-wire method is used for definitive, high-accuracy assessments using auxiliary earth spikes, while the 2-wire method offers a quick check, useful for initial surveys or where driving auxiliary rods is impractical.

Contrast with Traditional Practices and Enhanced Features

Compared to older analog testers or basic digital models, the ZX2571 incorporates several advancements that directly address common field challenges:

Automated Diagnostics vs. Manual Interpretation: The microprocessor automatically checks interface connections, measures interfering ground voltage (up to 600V AC), and even tests the resistance of the auxiliary grounding spikes. This eliminates guesswork and potential errors that technicians might make when manually diagnosing test setup issues with simpler tools.

Data Handling and Usability: With the ability to store 500 sets of data, technicians can log an entire site survey without manual transcription. This is a significant step up from devices with no memory or limited data hold functions. The large, backlit LCD display ensures readability in dimly lit environments like substations or basements.

Accuracy and Error Mitigation: A notable feature is the Wire Resistance Verification. This function combats a common source of error: poor contact in test leads or the use of user-lengthened cables. By verifying the test leads themselves, the ZX2571 provides a more reliable and accurate reading than testers that assume ideal lead conditions.

Safety and Robustness: Compliant with safety standards like IEC61010-1 and featuring a CAT III 300V rating, it is built for the electrical environment of distribution panels and industrial equipment. The overload protection (AC 280V/3 seconds between E-P and E-C terminals) and IP54 enclosure rating make it a durable and safe choice for demanding field use.

Technical Specifications at a Glance

Conclusion

The ZX2571 Earth Resistance Test Set represents a significant evolution from basic testing equipment. By integrating automated checks, comprehensive data management, and robust safety features, it empowers technicians to perform grounding tests with greater confidence, efficiency, and accuracy. Its dual-mode operation makes it versatile for both quick checks and detailed, compliant measurements, establishing it as a competent and reliable tool for maintaining the integrity of critical grounding systems across various industries.
