ZXCZ-30A: A Technical Overview of Grounding Line Group Resistance Testing

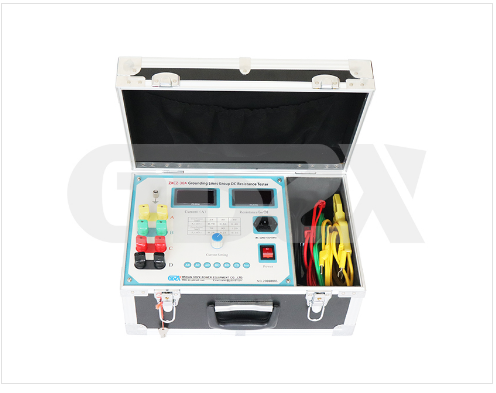

In the realm of electrical power systems, the integrity of grounding lines is non-negotiable for personnel and equipment safety. The ZXCZ-30A Grounding Lines Group DC Resistance Tester is a specialized instrument designed to verify this integrity directly at the point of use. Developed in strict accordance with preventive test procedures for electric power safety tools, its primary function is to assess the quality of contact between the ground wire nose, the combiner clamp, and the multi-stranded copper flexible conductor. This article provides a technical examination of the ZXCZ-30A, its operational principles, and its key features.

Design and Operating Principle

The ZXCZ-30A operates on the fundamental principle of the four-terminal (Kelvin) resistance measurement method, which eliminates the influence of test lead and contact resistance. The instrument is composed of two core systems:

1.A Low-Voltage, High-Current Constant Current Source: This source generates a stable, high-amplitude DC current. It utilizes modern switching power supply technology, which gives it distinct advantages including strong anti-interference capabilities and excellent output stability. This ensures accurate measurements even in electrically noisy substation environments.

2.A Precision Measurement System: This system accurately measures the voltage drop across the test object. The results are displayed on a high-brightness digital meter, showing both the resistance value and the test current simultaneously. This allows the operator to confirm that the test was performed at the correct current, validating the measurement.

By forcing a known, stable DC current (up to 30A) through the grounding line group and measuring the resulting voltage drop, the instrument calculates the DC resistance with high accuracy. A higher-than-expected resistance indicates poor contact, corrosion, or damage at the connection points—critical faults that could lead to a failure to properly ground a circuit during a fault event.

Key Technical Features and Advantages

1.Six-Way Loop Selection (AB, AC, AD, BC, BD, CD): This is a standout feature for testing multi-branch grounding groups. Technicians can easily test the resistance between any two circuits within a group without the need to physically disconnect and reconnect test clips. This streamlines the testing process significantly, saving time and reducing operator error.

2.Dedicated, Fixed Test Clips: The tester is equipped with specialized clips that are designed for easy attachment and secure holding. More importantly, once attached, there is no need to change or move them throughout the entire testing sequence for a grounding group. This minimizes contact resistance variability and improves repeatability.

3.High-Brightness Dual Display: The digital meter clearly displays both the measured resistance (0-200 mΩ) and the actual test current. This provides immediate verification of test conditions and results.

4.Stable Switching Power Supply: The use of advanced switching technology in the constant current source ensures reliable performance and resistance to external electromagnetic interference, a common challenge in high-voltage environments.

5.Intermittent Duty Cycle: The instrument is designed for intermittent operation, which is perfectly suited for its application of performing quick, successive tests on multiple grounding points.

Technical Specifications

Application and Use Case

The primary application of the ZXCZ-30A is the routine preventive maintenance of portable grounding equipment used by utility crews. Before a crew uses a set of grounding lines to work on de-energized high-voltage lines, the equipment itself must be verified as safe. Using the ZXCZ-30A, a technician can quickly and conclusively test a multi-branch grounding group, ensuring that every connection point—from the clamp to the conductor—has a low-resistance, reliable path. This proactive test is a vital defense against electrocution and equipment damage.

Conclusion

The ZXCZ-30A Grounding Lines Group DC Resistance Tester is a purpose-built instrument that fills a critical role in electrical safety programs. Its design, centered around a stable 30A constant current source and an intuitive, flexible measurement system, allows for efficient and reliable assessment of grounding line integrity. For technicians responsible for maintaining the safety of field crews, understanding and utilizing the ZXCZ-30A is essential for ensuring that the last line of defense—the grounding line—will function as intended when it matters most.
