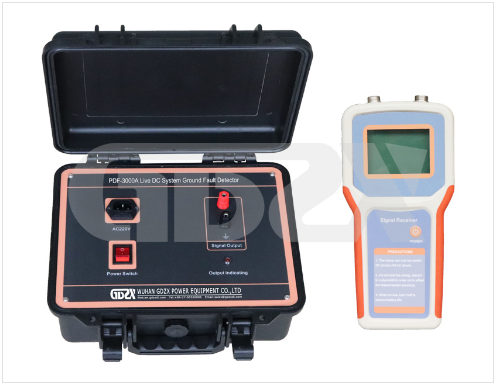

PDF-3000A: Advanced DC System Ground Fault Location

For technical professionals working with DC power systems in substations, power plants, and industrial facilities, the rapid and accurate location of ground faults is a critical task. The PDF-3000A DC System Ground Fault Detector is engineered to meet this need, offering a sophisticated, non-intrusive solution for pinpointing fault locations without interrupting system operation.

Operating Principle and Core Technology

The instrument operates by injecting a unique, low-frequency tracing signal (2.5Hz) into the DC system via the Signal Generator. This signal is specifically chosen for its ability to be distinguished from inherent system noise and to overcome the effects of system distributed capacitance, a common challenge in traditional detection methods.

The heart of the system is the high-sensitivity, high-precision Signal Receiver with its detection clamp meter. The clamp senses the specific 2.5Hz current signal on DC feeder branches. Through advanced digital signal processing and intelligent algorithms—incorporating fuzzy logic control theory—the receiver not only detects the minuscule signal currents (as low as 0.5mA) but also interprets the data to provide clear directional and location information. The receiver's display presents a numerical value (0-19), guiding the technician accurately along the fault path until the exact branch and point of failure are identified.

Key Technical Features and Advantages

1.Non-Intrusive Operation: A primary advantage is the ability to perform live-line testing. The PDF-3000A requires no shutdown of float chargers or other DC system power sources, ensuring continuous system availability during troubleshooting.

2.Broad Voltage Compatibility: The device is versatile and can be safely applied to common DC system voltages, including 24V, 48V, 110V, and 220V.

3.High Precision & Anti-Interference: With a maximum detection resistance of 300kΩ and high signal sensitivity, the instrument reliably locates both low and high-impedance faults. Its 2.5Hz signal and robust processing algorithms are specifically designed to reject interference from system harmonics and capacitance.

4.Efficiency and Portability: The receiver is self-powered with an internal battery, featuring intelligent charge management. This allows technicians to carry it freely throughout the facility. The process is streamlined—often requiring only to power on the device and follow the numerical guidance.

Robust Signal Generator: The generator is built to withstand harsh electrical environments, featuring an output port rated for a 400V DC surge.

Technical Specifications Summary

Signal Generator:

Output Frequency: 2.5Hz

No-load Voltage: ±20V±5%

Short-circuit Current: ≤80mA

Power Supply: AC 220V±10%, 50Hz

Surge Withstand: 400V DC

Signal Receiver:

Detection Sensitivity: 0.5mA

Display: Digital (0-19)

Power: Internal Battery

Clamp Sizes: Φ50mm and Φ7mm x 9mm

System Performance:

Max. Detectable Ground Resistance: 300kΩ

Accuracy:

0 - 4.5kΩ: Error ≤ 0.5kΩ

4.5kΩ - 300kΩ: Error ≤ 10%

Conclusion

The PDF-3000A represents a significant step forward in DC system maintenance. By combining a specialized low-frequency signal injection method with a smart, sensitive receiver, it transforms the complex task of ground fault location into a straightforward, efficient, and highly accurate process. Its design prioritizes operational safety, system integrity, and technician usability, making it an essential tool for ensuring the reliability and safety of critical DC power systems.
