TAG-9000 l: Technical Overview for Power System Live Operations

Abstract

This paper presents a systematic technical review of the TAG-9000 GPS Wireless High-Voltage Phasing Tool, a purpose-built instrument for live-line operations in power transmission and distribution systems. Leveraging high-precision GPS time synchronization and wireless transmission technologies, the device resolves critical limitations of conventional phasing equipment, enabling ultra-long-distance phasing, short-range on-site verification, and phase identification for Ring Main Unit (RMU) induction points. Integrated with multi-functional capabilities including high-voltage detection, phase sequence verification, and frequency measurement, the tool is compatible with electrical systems ranging from 5V to 500kV. This paper elaborates on the instrument’s system architecture, core technical specifications, operational advantages, and field application scenarios, providing a standardized technical reference for power industry practitioners engaged in live-line maintenance, grid interconnection, and new line commissioning.

1. Introduction

Phase verification is a mandatory, safety-critical procedure in power system operations. It ensures the safety of live-line work, prevents catastrophic phase-to-phase short circuits, and guarantees accurate synchronization during grid interconnection, new transmission line commissioning, and substation retrofit maintenance. Conventional high-voltage phasing instruments are typically constrained by limited operating distances, inability to perform cross-regional phasing tasks, and single-function design, which fail to meet the evolving demands of modern large-scale interconnected power grids.

The TAG-9000 GPS Wireless High-Voltage Phasing Tool is developed to overcome these industry pain points. It integrates advanced satellite positioning, low-power wireless communication, and high-performance high-voltage insulation technologies to deliver reliable, high-precision phasing measurements across diverse operational scenarios. This article provides a technical deep dive into the instrument’s design, performance, and practical utility, tailored for power system technical and maintenance personnel.

2. System Architecture and Hardware Composition

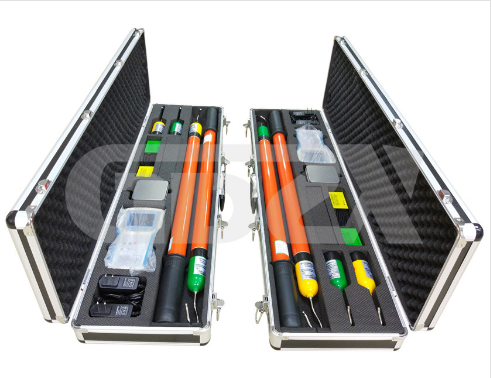

The TAG-9000 phasing system comprises two independent sets of phasing testers, each housed in a dedicated portable carrying case. A single tester set can independently complete short-range phasing tasks, while the two sets operate in coordination via GPS synchronization to enable ultra-long-distance cross-regional phasing operations.

Each tester set consists of three core hardware modules:

2.1 Receiver Unit

The receiver serves as the central processing and human-machine interface unit of the system, responsible for signal acquisition, data processing, GPS time synchronization, and measurement result display. It is equipped with a 2200mAh rechargeable lithium battery, supporting long-duration field operations with a power dissipation of less than 0.3W. The receiver can store up to 800 groups of test results, with built-in functions for result review and deletion, enabling full traceability of on-site test data.

2.2 X and Y Transmitters

The paired X and Y transmitters are responsible for high-sensitivity acquisition of the voltage phase signal from the tested line. They feature ultra-low power consumption (less than 0.1W) and a built-in 350mAh rechargeable lithium battery, ensuring stable signal acquisition across the full voltage range of the tested system.

2.3 Telescopic Insulation Probes

The system is fitted with telescopic insulation probes, the core high-voltage insulating components of the instrument. These probes are engineered with excellent moisture resistance, high temperature resistance, and anti-bending performance, ensuring electrical safety during live-line operations. The standard insulation rod has a length of 3 meters, suitable for electrical systems with a rated voltage of up to 220kV, with a leakage current of less than 10μA under rated operating conditions, fully complying with international safety standards for high-voltage live operations.

3. Core Technical Features and Performance Specifications

This section details the key technical characteristics and quantified performance indicators of the TAG-9000, which define its operational capability and reliability in power system applications.

3.1 High-Precision GPS Time Synchronization and Wireless Transmission

The core competitive advantage of the TAG-9000 lies in its high-precision GPS time synchronization mechanism, which enables global time synchronization acquisition, supporting simultaneous phase difference measurement of two lines at any geographical location.

Wireless line-of-sight transmission distance: >100m for short-range on-site operations;

Ultra-long transmission distance in GPS timing mode: ≥500km between the two receiver units, enabling cross-regional phasing tasks across large interconnected power grids;

Offline operation capability: The instrument maintains continuous operation for 30 minutes even in the absence of GPS signals, ensuring measurement continuity in complex field environments with poor satellite coverage (e.g., mountainous areas, urban canyons).

3.2 High-Accuracy Measurement and Standardized Result Definition

The instrument delivers high-precision phase and frequency measurement performance, meeting the stringent requirements of power system operation specifications:

Phase measurement accuracy: ≤3° for short-range phasing verification and long-range phasing in precision mode; ≤6° for long-range phasing in timing mode;

Frequency measurement accuracy: ±0.1Hz, adapting to the frequency fluctuation range of mainstream 50/60Hz power grids;

Standardized result definition: In accordance with A-grade industry standards, the instrument defines a phase angle ≥30° as opposite phase, and a phase angle <30° as in-phase, providing clear, unambiguous judgment criteria for on-site operators to eliminate misjudgment risks.

3.3 Wide Voltage Adaptation and Multi-Functional Integration

The TAG-9000 is designed for full-scene adaptation in power systems, with a rated operating voltage range of 5V to 500kV, covering low-voltage distribution systems to extra-high-voltage (EHV) transmission lines. Beyond core phasing functions, the instrument integrates multiple practical functions required for on-site live operations, including:

High-voltage live line detection;

Three-phase system phase sequence verification;

Phase checking for switchgear live monitoring;

Phase identification for RMU induction points.

This all-in-one design eliminates the need for operators to carry multiple separate instruments, significantly improving the efficiency of on-site operations and reducing equipment management costs.

3.4 Environmental Adaptability and Portability

The instrument is optimized for harsh field operating environments in the power industry, with a wide operating and storage temperature range, and strong humidity resistance:

Operating environment: -35℃ to +45℃, relative humidity ≤95%RH;

Storage environment: -40℃ to +55℃, relative humidity ≤95%RH.

The complete equipment has a weight of 5kg per set (two sets total), with a case size of 71×26×11cm per unit, featuring a compact, lightweight design for easy transport and operation in outdoor field scenarios.

4. Field Application Scenarios for Power System Operations

The TAG-9000 is tailored to the core operational requirements of power transmission and distribution systems, with typical application scenarios including:

4.1 Short-Range On-Site Phasing Verification

For on-site operations in substations, distribution networks, and industrial power systems, a single tester set can complete short-range phasing verification, phase sequence check, and live line detection, supporting daily maintenance, equipment replacement, and fault handling tasks.

4.2 Ultra-Long-Distance Cross-Regional Phasing

For grid interconnection projects, cross-regional ring network verification, and long-distance transmission line commissioning, the two tester sets perform synchronous phasing measurement via GPS time synchronization, with an operating distance of up to 500km or more, solving the long-standing industry challenge of cross-regional phasing that conventional equipment cannot address.

4.3 RMU and Switchgear Phase Identification

The instrument supports phase identification for RMU induction points and phase checking for live monitoring of medium-voltage switchgear, adapting to the dense distribution network equipment in urban power systems, and ensuring the correct phase sequence of ring network power supply systems.

4.4 New Line Commissioning and Live-Line Maintenance

Before the commissioning of new transmission and distribution lines, the TAG-9000 completes phase verification, phase sequence check, and frequency measurement in a single operation, ensuring accurate synchronization of the new line with the existing grid. For live-line maintenance operations, the instrument provides reliable high-voltage detection and phase confirmation, guaranteeing the personal safety of operators and the stable operation of the power grid.

5. Operational and Safety Advantages for Technical Personnel

For power system technical and maintenance personnel, the TAG-9000 delivers significant advantages in operational efficiency, safety, and ease of use:

A.Simplified operation: The instrument features a compact, portable design with an intuitive operation process, minimizing the learning curve for on-site personnel and reducing human error risks;

B.Enhanced electrical safety: The high-performance insulation components and ultra-low leakage current design fully comply with international safety standards for high-voltage live operations, minimizing electric shock hazards;

C.Reliable data traceability: The 800-group data storage function supports post-operation data review and archiving, meeting the strict management requirements of power system operation records;

D.Extreme environment adaptability: The wide temperature and humidity adaptation range enables stable operation in harsh field environments, including high-altitude areas, cold regions, and high-temperature high-humidity zones.

6. Conclusion

The TAG-9000 GPS Wireless High-Voltage Phasing Tool provides an advanced, all-in-one solution for modern power system live-line operations. It addresses the core limitations of conventional phasing equipment through integrated high-precision GPS time synchronization, low-power wireless transmission, and high-reliability high-voltage insulation technologies. With its wide voltage adaptation range, industry-leading measurement accuracy, ultra-long-distance operation capability, and multi-functional integration, the instrument meets the diverse operational requirements of power transmission and distribution systems, from daily on-site maintenance to cross-regional grid interconnection projects.
