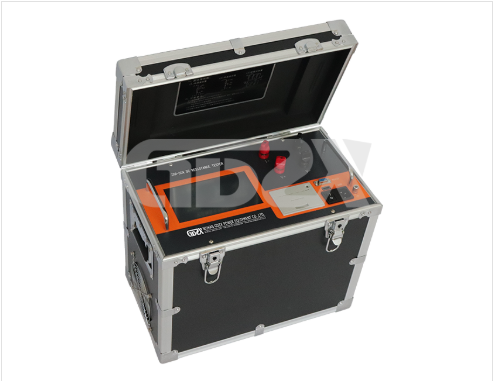

ZXR-50A DC Resistance Tester: Keeping the Lights On

If you’ve ever been stuck in a sudden blackout mid-work call, or lost a fridge full of groceries to an unexpected grid failure, you know how critical steady, reliable power is to daily life. What most people don’t realize is that many of these outages are entirely preventable—with a single, routine check of the transformers that power our world. That’s where the ZXR-50A DC Resistance Tester comes in: a compact, powerful tool that’s become a staple for electrical teams across the power industry.

To help break down what this tool does, why it matters, and how it stands out, we’re answering the most common questions we get from both industry newcomers and curious everyday readers.

Q: Let’s start with the basics: what even is DC resistance testing, and why should I care?

A: Think of a power transformer as the heart of the electrical grid. It takes ultra-high-voltage electricity from power plants and converts it to the lower-voltage power that runs your lights, laptop, fridge, and everything else in your home or office.

Just like a human heart needs regular check-ups to catch small issues before they turn into emergencies, transformers need routine testing too. DC resistance testing is like a blood pressure check for your transformer: it measures the resistance of the copper windings (the coiled wires inside the transformer) to spot tiny red flags—like loose connections, corrosion, or damaged wiring—long before they cause a catastrophic failure, a fire, or a multi-hour blackout. Even the smallest change in resistance can signal a problem, so having an accurate, reliable tester is non-negotiable for keeping the grid up and running.

Q: Okay, so why the ZXR-50A? There are plenty of testers on the market. What makes this one the go-to for power industry teams?

A: Great question. The ZXR-50A was built from the ground up to solve the biggest pain points electrical teams face in the field, starting with its cutting-edge power technology.

Unlike basic testers that only work for a narrow range of transformers, the ZXR-50A offers a wide span of output current options—from less than 5mA all the way up to 50A, with 6 total adjustable ranges. That means it can handle everything from small neighborhood distribution transformers to large, medium-sized power transformers used in major substations. It’s like having a single tool that can take the vital signs of both a small house pet and a full-grown elephant, with perfect accuracy every time.

It’s also built for speed and efficiency. One of the most time-consuming parts of transformer testing is adjusting the on-load tap-changer—the part of the transformer that tweaks voltage levels to keep power steady during peak demand, like a summer heat wave when every home is running air conditioning. With most testers, you have to stop the test, adjust the tap-changer, and restart the whole process. The ZXR-50A eliminates that hassle: it has ultra-fast response times, so you can adjust the tap-changer mid-measurement, and the device automatically refreshes the data in real time. No restarts, no extra steps, no wasted hours in the field.

On top of that, it’s built with intelligent power management, which keeps the device running at the lowest possible power level during use. That means less energy waste, less overheating, and a longer lifespan for the device—critical for teams working long hours in remote substation locations.

Q: This sounds like specialized gear. Is it only usable by veteran electrical engineers, or can someone new to the industry learn to use it quickly?

A: This is one of the ZXR-50A’s biggest strengths: it’s designed to be easy to use, no matter your experience level.

The entire device is controlled by a high-speed single-chip microcomputer, which handles almost all the complex work automatically. You don’t have to manually calculate ranges, set complicated parameters, or worry about missing a critical step. It’s as close to “plug and play” as high-voltage testing gear gets.

It also features a bright, 320×240 dot matrix 65K true-color LCD screen, which displays readings and instructions clearly, even in bright sunlight outdoors. No squinting at dim, hard-to-read displays in the field.

Most importantly, it takes the guesswork out of safety, which is the number one concern for new users. The ZXR-50A has built-in automatic discharge functionality, paired with an audible discharge alarm. That means it clearly alerts you when the device is discharging stored voltage, and when it’s safe to handle. No more guessing if the equipment is still live, and far less risk of human error that can lead to injury or equipment damage.

Q: Working around high-voltage transformers sounds dangerous. How does the ZXR-50A keep both the user and the equipment safe?

A: Safety is non-negotiable in the power industry, and the ZXR-50A is built with multiple layers of protection to eliminate risk.

The biggest hazard in transformer testing is back-EMF, or back electromotive force: a massive, dangerous voltage spike that can happen when you disconnect a tester from an energized transformer. It’s like a static shock from a doorknob, but thousands of times more powerful—enough to destroy testing equipment, or cause serious harm to the user. The ZXR-50A has a field-proven, comprehensive protection function that reliably blocks this back-EMF, keeping both the user and the transformer safe during every test.

Beyond that, the automatic discharge and audible alarm system we mentioned earlier adds another critical layer of safety. After every test, the device automatically discharges any stored voltage, and alerts you with a clear, consistent sound throughout the process. This eliminates the number one cause of field accidents: users touching equipment that still holds a dangerous stored charge.

Q: What about test data? I can’t imagine writing down hundreds of resistance readings by hand in the field. Does the ZXR-50A help with that?

A: Absolutely—this device was built to eliminate the hassle of manual data tracking, a huge pain point for field teams everywhere.

First, the ZXR-50A has a built-in calendar clock and power-down storage system, which can save up to 1000 sets of test data. Even if the device loses power unexpectedly, all your readings are saved and ready to access whenever you need them. That means no more lost data from a dead battery, and no more scribbling numbers on a notepad that can get wet, lost, or smudged in the field.

It also comes equipped with both RS232 and USB ports, so you can easily connect it to a computer to transfer data, or save readings directly to a USB flash drive. This makes it simple to generate formal reports, compare current test results to past readings to spot gradual changes over time, and keep detailed, compliant records for regulatory purposes.

For those curious about the hard numbers, the ZXR-50A delivers industry-leading precision: it has a resolution of 0.1μΩ, and an accuracy rating of ±(0.2%+2d). That means it can detect even the tiniest changes in resistance, so you never miss a potential issue. It’s built to work in tough field conditions too, with an operating temperature range of 0 to 40°C, and humidity tolerance up to 90%RH. And at just 325×240×275mm, it’s compact and lightweight, easy to carry to remote substation sites or hard-to-reach transformer locations.

At the end of the day, the power grid only works when every single component is functioning as it should. A single faulty transformer can disrupt power for thousands of people, cost businesses millions in lost revenue, and even put lives at risk.

The ZXR-50A DC Resistance Tester isn’t just a piece of testing equipment—it’s a critical line of defense against preventable outages, a tool that makes transformer testing faster, safer, and more accurate for everyone from seasoned engineers to new industry hires. It’s the unsung hero that keeps the lights on, for all of us.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
