ZX-BCS Transformer Turns Ratio Tester: High-Precision Testing Solution

Abstract

Transformer turns ratio (TTR) testing is a critical non-destructive diagnostic procedure in power system maintenance, designed to verify winding integrity, detect turn-to-turn faults, validate tap changer operation, and confirm correct transformer connection groups. The ZX-BCS Automatic Transformer Turns Ratio Tester is an advanced, portable testing instrument engineered to meet the rigorous demands of field and laboratory testing for power technicians. This article provides a comprehensive technical analysis of the ZX-BCS tester, covering its core design principles, key functional features, technical specifications, and practical applications in power transformer maintenance.

1. Introduction

Power transformers are the backbone of electrical transmission and distribution networks, and their reliable operation directly determines the safety and stability of the entire power system. Turns ratio testing is a fundamental acceptance and routine maintenance test for transformers, as it can identify manufacturing defects, winding damage, tap changer malfunctions, and incorrect wiring during installation. Traditional manual TTR testing methods are time-consuming, labor-intensive, and prone to human error, especially for three-phase transformers with complex connection groups.

The ZX-BCS Automatic Transformer Turns Ratio Tester addresses these limitations by integrating digital signal processing, automatic measurement, and intelligent data management. It enables fast, accurate, and fully automated TTR testing for single-phase and three-phase transformers, making it an essential tool for power technicians in substation maintenance, factory acceptance testing (FAT), and on-site commissioning.

2. Core Design and User Interface

2.1 Hardware and Display System

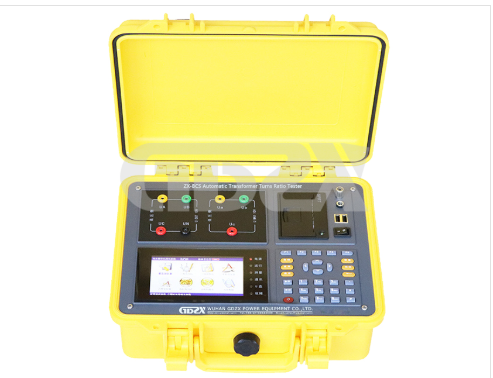

The ZX-BCS tester is built with a user-centric hardware design optimized for field use:

Display and Operation: Equipped with a 5.6-inch large-screen true-color LCD, the instrument features a full Chinese graphical interface with English prompt support, creating an intuitive human-machine dialogue (HMI) system. A full-touch conductive silicone keyboard ensures reliable operation even in harsh field environments, with a smooth operating feel and easy learning curve for technicians.

Housing and Portability: The tester adopts an independently designed engineering plastic shell, delivering a durable, lightweight (3kg) and compact (320mm×240mm×130mm) form factor for easy transportation to remote substation sites.

Power Supply System: The instrument supports single-phase AC input and integrates a high-capacity rechargeable lithium battery, enabling over 500 continuous measurements on a full charge without on-site power supply, a critical advantage for field testing.

2.2 Data Management and Storage

To streamline maintenance workflows, the ZX-BCS tester includes robust data management capabilities:

A built-in large-capacity non-volatile memory system prevents data loss during power outages, with the ability to store and expand up to 1,000 groups of on-site verification results.

Back-end microcomputer management software is provided, allowing technicians to upload test results to a computer for centralized, computerized management, report generation, and long-term data archiving.

3. Key Functional Features

The ZX-BCS tester integrates a suite of intelligent functions tailored to transformer testing requirements:

3.1 High-Precision Test Source and Phase Angle Measurement

The instrument generates an internal digital combined standard sine wave test source from a single power input, eliminating the need for external signal generators and ensuring test accuracy.

It supports phase angle measurement between the high-voltage (HV) and low-voltage (LV) sides of transformers, including the ability to measure turns ratio and phase angle for "non-integer tap" transformers, a critical feature for modern power transformers with fine-tuning taps.

3.2 Automatic Three-Phase Testing and Connection Group Identification

The tester supports both single-phase measurement and fully automatic three-phase winding testing, completing a full three-phase TTR test in under 40 seconds. It can simultaneously measure three-phase turns ratio, phase angle, error, tap position, and tap value in a single test run.

It automatically identifies transformer connection group numbers, eliminating manual calculation errors and reducing test time for complex three-phase transformers.

3.3 Blind Test and Automatic Wiring Adaptation

A unique blind test function removes the need for manual selection of connection methods and groups. When testing Y/Δ or Δ/Y connected transformers, no external short-circuiting is required, and the instrument automatically switches connection methods based on selected test content, simplifying operation and reducing wiring errors.

3.4 Tap Changer Testing Function

The dedicated tap test function enables rapid measurement of TTR and TTR error at all tap switch positions. Technicians only need to input the rated TTR once, and the instrument automatically calculates TTR errors for all tap positions, eliminating repeated manual input and streamlining tap changer verification.

3.5 Visualized Result Display

Test results are presented in both digital format and hexagonal vector diagrams, making transformer connection groups visually obvious for technicians, enabling quick verification of correct winding polarity and connection.

3.6 Dual Measurement Modes

The instrument supports both turns ratio measurement and voltage TTR measurement, providing flexibility for different test requirements and transformer types.

4. Technical Specifications and Performance Indicators

The ZX-BCS tester meets international power testing standards with the following key technical indicators:

表格

These specifications ensure the tester delivers reliable, traceable results for all common power transformer types, from distribution transformers to large transmission transformers.

5. Practical Applications in Power Systems

The ZX-BCS Automatic Transformer Turns Ratio Tester is widely used in multiple power industry scenarios:

Factory Acceptance Testing (FAT): Verifies transformer winding integrity and correct connection groups during manufacturing, ensuring compliance with design specifications before delivery.

On-Site Commissioning: Validates correct transformer installation, wiring, and tap changer operation during substation construction, preventing post-commissioning faults.

Routine Maintenance Testing: Conducts periodic TTR testing to detect early winding degradation, turn-to-turn faults, and tap changer wear, enabling predictive maintenance and reducing unplanned outages.

Fault Diagnosis: Used to troubleshoot transformer performance issues, identify winding damage, and confirm root causes of abnormal operation.

6. Conclusion

The ZX-BCS Automatic Transformer Turns Ratio Tester represents a significant advancement in transformer testing technology, combining high precision, automation, portability, and intelligent data management. Its comprehensive functional design addresses the core pain points of traditional TTR testing, enabling power techn    icians to complete complex transformer tests faster, more accurately, and with fewer errors.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
