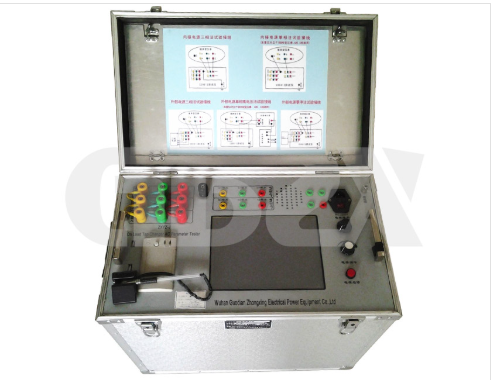

Technical Overview of ZXYZ-J On-Load Tap Changer AC Parameter Tester

Introduction

On-load tap changers (OLTCs) are mission-critical components of power transformers, responsible for dynamic voltage regulation to maintain power quality and grid stability in transmission and distribution networks. The reliability of OLTCs directly impacts the safe operation of transformers and the entire power system, making accurate, on-site condition testing a core requirement for power maintenance technicians. The ZXYZ-J On Load Tap Changer AC Parameter Tester is a specialized, high-performance diagnostic tool engineered to address the technical challenges of OLTC testing, delivering precise, actionable data for power system professionals.

Core Technical Features

1. Advanced AC Testing Methodology

Distinct from conventional DC-based OLTC testers, the ZXYZ-J employs an AC testing approach to capture true, unfiltered transition waveforms of OLTC operation. This method enables accurate on-site measurement of key performance parameters, including:

Transition waveform

Transition time

Transient resistance

Three-phase synchronization

A key advantage of the AC method is simplified condition assessment: a continuous total transition waveform directly indicates healthy OLTC operation, eliminating the complexity of interpreting DC-derived data that may be distorted by filtering or contact resistance effects.

2. Wide Compatibility and Flexible Power Supply

The tester is designed for universal application across transformer fleets, supporting OLTC testing for units rated from 10kV to 500kV, regardless of winding configuration (e.g., Yy, Yd, Dy). It offers dual power supply options to meet diverse testing needs:

Built-in power supply: Delivers three-phase test power with simplified field wiring, ideal for routine maintenance testing.

External power supply: Enables advanced testing scenarios, including high-voltage testing and zero-sequence testing for in-depth fault diagnosis.

3. High-Speed Sampling and Large-Capacity Storage

To capture the fast, dynamic characteristics of OLTC switching (which occurs in milliseconds), the device features a high-speed sampling system with a rate of 200k/s per channel—20 times faster than the typical 10k/s rate of legacy DC testers. Combined with an 8M-byte FIFO cache, it ensures complete, lossless recording of transient switching events, even during complex multi-tap transition sequences.

4. Integrated Intelligent Hardware and Software

The ZXYZ-J integrates an embedded industrial computer with dedicated OLTC testing software, paired with a 10.4-inch color LCD touch screen, on-board thermal printer, and native support for USB flash drives, keyboards, and mice. This all-in-one design enables fully standalone operation in harsh field environments, eliminating the need for external computing or printing equipment.

5. Smart Grid-Ready Data Management

Aligned with the requirements of modern intelligent power grid operation and management systems, the tester supports wireless data transmission to tablet PCs via the internet, enabling real-time remote monitoring and cross-team data sharing. All test results can also be exported to office PCs for offline analysis, editing, and long-term archiving, streamlining maintenance workflows and compliance reporting.

6. Versatile and Portable Design

Beyond core OLTC testing, the device functions as a high-precision digital multimeter for auxiliary electrical measurements (e.g., voltage, current, resistance) in field work. Its integrated, compact structure ensures portability (30kg weight, excluding accessories) and simple on-site wiring, reducing setup time and operational burden for field technicians.

Key Technical Specifications

For engineering design and field application reference, the core technical indicators of the ZXYZ-J tester are as follows:

1. Operating Conditions

Ambient temperature: -10°C ~ 40°C

Relative humidity: ≤80%

Altitude: ≤2000m

2. Input Power Supply

Single-phase input voltage: 220(1±10%) V

Frequency: 50Hz±1Hz

Input waveform: Sine wave with total harmonic distortion ≤2%

3. Internal Test Power Output

AC output frequency: 50Hz±0.2Hz (adjustable)

AC output voltage range: Three-phase four-wire 0~500V (continuously adjustable)

Rated output capacity: 1000VA

Output waveform distortion factor: ≤3%

Phase angle difference between phases: 120°±1°

4. Measurement Accuracy

Synchronous sampling channels: 6

Sampling data resolution: 16 bits

Sampling speed: 200 k/s/channel

Cache depth: 8 M-byte FIFO

Voltage measurement range: 0V~500V

Current measurement range: 0mA~100mA, 0A~10A

Voltage/current measurement accuracy: Class 0.5

5. Insulation Performance

Insulation resistance (power input terminal to chassis): >20MΩ

Withstand voltage: 1500V AC (RMS)

6. Physical Parameters

Weight: 30kg (excluding accessories)

Dimensions: 530×320×600 mm

Field Application Value

For power system technicians, the ZXYZ-J OLTC AC Parameter Tester delivers significant operational and technical benefits:

Reliable Fault Detection: Unfiltered AC transition waveforms enable early identification of OLTC defects such as contact wear, arcing, synchronization errors, and mechanical jamming, preventing catastrophic transformer failures.

Universal Compatibility: Its support for 10kV~500kV transformers and all winding configurations makes it a single-tool solution for substation maintenance teams, reducing equipment inventory.

Improved Maintenance Efficiency: Simplified wiring, portable design, and integrated data management cut test time and post-processing effort, while remote data transmission streamlines team collaboration.

Smart Grid Integration: Compatibility with intelligent grid management systems enables predictive maintenance, reducing unplanned outages and optimizing grid asset management.

Conclusion

The ZXYZ-J On Load Tap Changer AC Parameter Tester is a technically advanced, field-proven solution for OLTC condition monitoring. By combining high-precision AC testing, industry-leading high-speed sampling, intelligent connectivity, and portable design, it addresses the core needs of power technicians for reliable, efficient OLTC testing. As a critical tool for ensuring transformer reliability and grid stability, it is an indispensable asset for modern power system maintenance teams.
