ZXYZ-JZ On-Load Tap Changer AC Parameter Tester: A Practical Guide for Power Pro

Introduction

In the power industry, on-load tap changers (OLTCs) are critical components of power transformers, ensuring stable voltage output for power grids under load conditions. Regular, accurate testing of OLTC performance is essential to prevent transformer failures, grid outages, and costly maintenance. The ZXYZ-JZ On-Load Tap Changer AC Parameter Tester is a portable, intelligent testing solution designed to simplify and enhance OLTC field testing, making advanced diagnostics accessible to both technical experts and on-site operators.

Key Features: Designed for Real-World Power Testing

This tester combines cutting-edge sampling technology with user-friendly design, addressing the core needs of power system maintenance:

1. True Waveform Testing with AC/DC Dual Methods

Unlike traditional DC-only testers, the ZXYZ-JZ supports both AC and DC testing to capture unfiltered, real transition waveforms during tap changes. This allows technicians to accurately measure critical parameters:

Transition time (the duration of the tap switching process)

Transient resistance (to detect contact wear or mechanical faults)

Three-phase synchronization (to ensure balanced switching across all phases)The AC test method also provides a simple pass/fail check: a continuous total transition waveform indicates healthy OLTC operation, reducing on-site diagnostic complexity.

2. Broad Compatibility with Power Grids

The tester works seamlessly with transformers of all voltage classes, from 10kV to 500kV, regardless of winding configuration. This versatility makes it suitable for distribution substations, transmission stations, and industrial power systems alike.

3. Flexible Power Supply Options

Built-in power supply: Delivers three-phase power with simple wiring, ideal for routine on-site testing without external equipment.

External power supply: Supports high-voltage testing and zero-sequence testing for advanced diagnostic scenarios.

4. High-Speed Sampling & Large Storage

With a sampling speed of over 200k/s per channel (20x faster than conventional DC testers) and an 8M-byte FIFO cache, the device captures even the fastest tap-switching events with precision. This ensures no critical data is missed during testing.

5. User-Friendly, Intelligent Operation

Equipped with a 10.4" color touchscreen, embedded computer, and built-in printer for on-site report generation.

Supports USB drives, keyboards, and mice for easy data transfer and operation.

Integrates with smart grid systems: On-site operators can connect the tester to tablets and transmit data via the internet for remote monitoring.

Data can be exported to office PCs for offline analysis, editing, and long-term record-keeping.

Also functions as a digital universal meter for additional on-site measurement needs.

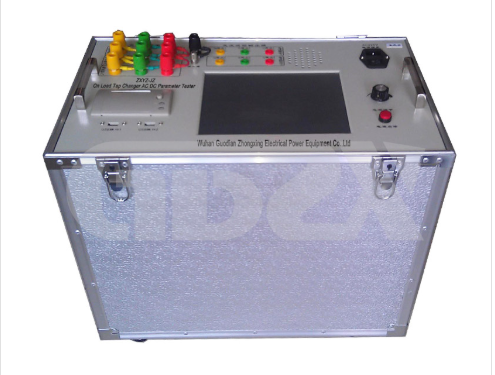

6. Portable, Integrated Design

The tester features a compact, all-in-one structure (530×320×600 mm, 30kg excluding accessories) with simplified wiring, making it easy to transport and operate in field environments.

Technical Specifications: Reliability Meets Precision

To ensure consistent, accurate performance in harsh field conditions, the ZXYZ-JZ meets strict industrial standards:

1. Operating Environment

Temperature: -10°C to 40°C

Humidity: ≤80%

Altitude: ≤2000m

2. Power Supply

Input: 220V (±10%) single-phase, 50Hz (±1Hz) sine wave (distortion ≤2%)

3. Internal Test Output

AC frequency: 50Hz±0.2Hz (adjustable)

AC voltage range: 0~500V (three-phase four-wire, adjustable)

AC capacity: 1000VA rated

DC current options: 0.5A / 1A (customizable)

4. Accuracy & Sampling

6 synchronous sampling channels, 16-bit data accuracy

Sampling speed: 200k/s per channel

Voltage range: 0V~500V; Current range: 0mA~100mA / 0A~10A

Voltage/current accuracy: 0.2%

Resistance range: 0-20Ω (0.5A) / 0-10Ω (1A, customizable)

DC resistance accuracy: ±(5%+0.1Ω)

5. Insulation & Safety

Insulation resistance (power input to case): >20MΩ

Withstands 1500V AC (RMS) for enhanced safety in high-voltage environments

Why This Tester Matters for the Power Industry

For power utilities, maintenance teams, and transformer manufacturers, the ZXYZ-JZ tester solves key pain points in OLTC testing:

Reduced downtime: Fast, accurate testing minimizes transformer outages for maintenance.

Proactive fault detection: Early identification of contact wear, mechanical issues, or synchronization problems prevents catastrophic failures.

Simplified operation: Intuitive design and clear pass/fail indicators reduce the need for highly specialized training, making reliable testing accessible to more on-site teams.

Smart grid integration: Seamless data transmission aligns with modern power system digitalization and remote management needs.

Conclusion

The ZXYZ-JZ On-Load Tap Changer AC Parameter Tester is a versatile, reliable tool that bridges advanced testing technology with practical on-site requirements. Whether for routine maintenance, commissioning, or troubleshooting, it delivers the precision, ease of use, and flexibility needed to keep power transformers and grids operating safely and efficiently.

 Notes for Non-Experts

If you’re new to power equipment:

On-Load Tap Changers (OLTCs) are like "voltage adjusters" for transformers, ensuring your home and business get a steady 220V/110V supply even when grid load changes.

Regular OLTC testing is like getting a regular check-up for your car: it catches small problems before they become big, expensive breakdowns.

This tester makes that "check-up" faster, easier, and more accurate, even for teams without advanced lab equipment.
