ZX-BRY01 Transformer Winding Deformation Tester: A Key Tool for Power GridSafety

Introduction

Power transformers are the backbone of modern power grids, ensuring the safe and reliable transmission of electricity across voltage levels. However, during operation and transportation, transformers face constant risks: short-circuit fault currents generate powerful electrodynamic forces, while physical collisions can also damage internal structures. These threats often cause permanent winding deformations—such as local distortion, swelling, or displacement—that are invisible to the naked eye but can lead to catastrophic equipment failure, power outages, and safety hazards if left undetected.

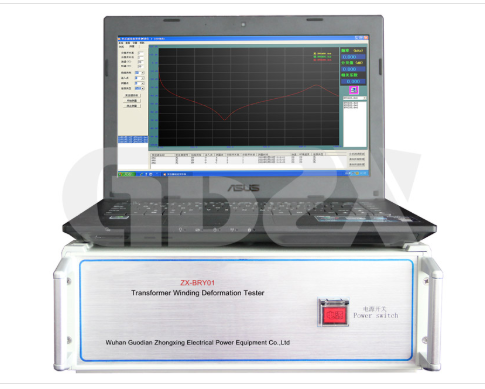

The ZX-BRY01 Transformer Winding Deformation Tester is a professional, user-friendly diagnostic tool designed to solve this critical problem. It leverages the industry-standard Frequency Response Analysis (FRA) method, aligned with China’s electric power industry national standard DL/T911-2004, to accurately detect winding deformations, helping power technicians prevent transformer failures before they occur.

How It Works: Simple, Reliable, and Standardized

At its core, the ZX-BRY01 uses Frequency Response Analysis (FRA), a proven technology trusted by power utilities worldwide. Here’s how it works in plain terms:

Test Principle: Every healthy transformer winding has a unique "electrical fingerprint"—a specific amplitude-frequency response curve, determined by its winding structure, capacitance, and inductance. If the winding deforms, this fingerprint changes.

Detection Process: The tester injects a sweep frequency signal into the transformer winding, measures the output response, and records the amplitude-frequency curve.

Diagnosis: Technicians compare the measured curve with historical baseline data (vertical comparison) or data from identical transformers (horizontal comparison). Any significant deviation indicates potential winding deformation.

Compliance: The entire process strictly follows the national standard DL/T911-2004, ensuring test results are accurate, consistent, and recognized by the power industry.

This method is non-destructive, meaning it does not damage the transformer during testing, making it ideal for routine maintenance and post-fault inspections.

Key Features: Designed for Real-World Power Field Use

The ZX-BRY01 is built to meet the practical needs of power technicians, with features that balance accuracy, efficiency, and ease of use:

Minimal On-Site Preparation: Only the transformer connection bus needs to be removed for testing, reducing on-site work time and complexity.

High-Frequency Sweep Capability: Supports a sweep frequency up to 10MHz, with adjustable scanning intervals (0.25kHz, 0.5kHz, 1kHz) for multi-dimensional analysis of winding conditions.

Intelligent Automation: Features auto range adjustment and auto sampling frequency adjustment, eliminating manual setup errors and simplifying operation.

Broad System Compatibility: Runs on the Windows platform, supporting Win98 / 2000 / XP / Win7 / Win8 / Win10, ensuring compatibility with most field office and test equipment.

Powerful Curve Analysis: Supports historical curve comparison (up to 6 curves for simultaneous observation) and an auto analysis & diagnosis system, helping technicians quickly identify abnormalities.

Convenient Data Management: Automatically saves environment parameters and test results, with color printing functionality for easy report generation and archiving.

User-Friendly Software: Humanized interface design makes the tool easy to learn and operate, even for technicians with limited FRA experience.

Flexible Test Control: Automatically completes testing after wiring, with the option to check historical curves or pause testing at any time during the process.

Ultra-Fast Testing: Each phase takes less than 60 seconds to test, and the entire transformer winding test is completed in under 10 minutes, drastically improving on-site work efficiency.

Core Technical Indicators: Precision You Can Trust

The ZX-BRY01 delivers industry-leading accuracy and performance, with technical specifications tailored for power transformer testing:

These indicators ensure that the tester can detect even minor winding deformations, with consistent, repeatable results that meet the strict requirements of power grid maintenance.

Why This Tester Matters for Power Safety

Transformer winding deformation is a "silent killer" of power equipment. Without regular, accurate testing, small deformations can escalate into major failures, causing:

Unplanned power outages that disrupt industrial production and residential electricity supply

High costs for emergency repairs and transformer replacement

Safety risks to on-site maintenance personnel

The ZX-BRY01 Transformer Winding Deformation Tester solves this problem by providing a fast, accurate, and easy-to-use solution for routine transformer health checks. It is suitable for power transformers of 6kV and above, as well as special-purpose transformers, making it an essential tool for power utilities, substations, and transformer manufacturers.

Conclusion

The ZX-BRY01 Transformer Winding Deformation Tester is more than just a test instrument—it is a critical safeguard for power grid reliability. By combining industry-standard FRA technology, intelligent automation, and user-friendly design, it empowers power technicians to detect winding deformations early, prevent equipment failures, and ensure the safe, stable operation of power systems. For anyone working in the power industry, this tool is a must-have for transformer maintenance and asset management.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
