ZX-BZK: Precision Transformer Short-Circuit Impedance Testing for Grid Safety

Power transformers are the backbone of modern power grids, and their structural integrity is critical to uninterrupted power supply. Winding deformation—an ever-present risk caused by short-circuit current surges or mechanical collisions during transportation and installation—can severely compromise transformer performance and safety. The low-voltage short-circuit impedance test is widely recognized as the most direct and effective method to detect such deformations, delivering essential data to determine whether a transformer can be safely commissioned or requires disassembly for further inspection.

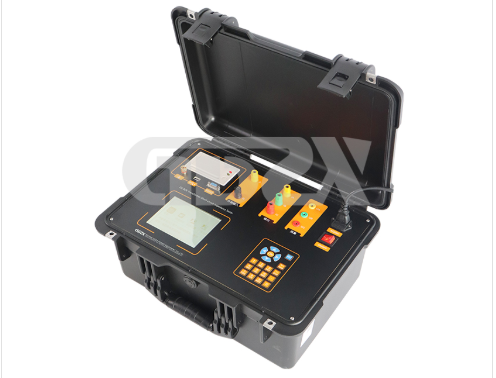

Engineered to meet the demanding needs of this critical test, the ZX-BZK Transformer Short-Circuit Impedance Tester offers reliable, high-precision measurements tailored for on-site applications, particularly for 110kV and above main transformers. Its adjustable power output ensures consistent performance in field environments where stable power and accurate testing are non-negotiable.

Core Technical Features

The ZX-BZK tester integrates user-centric design and advanced technology to streamline transformer testing workflows:

Efficient Wiring & Universal Compatibility: Equipped with a switching power supply, the device completes measurements for all windings with just one-time wiring connection, supporting both single-phase and three-phase transformers to reduce on-site setup time.

Single-Phase Measurement Mode: For three-phase transformers, the tester automatically calculates each phase’s short-circuit impedance, reactance, and inductance after three boost operations, eliminating manual calculation errors.

High-Accuracy Synchronization: Adopting phase-locking technology, the tester synchronizes sampling of AC signals to ensure measurement precision, even under fluctuating field conditions.

Multi-Parameter Simultaneous Testing: It measures current, voltage, power, and frequency in a single test, providing comprehensive data for transformer performance analysis.

Flexible Range Expansion: Support for external connection with current transformers (CT) and potential transformers (PT) allows users to extend the measuring range to suit diverse test scenarios.

Data Management & Portability: Built-in memory stores test data, and an integrated printer enables on-site report generation. The sunlight-readable LCD display with an intuitive operation menu ensures clear data viewing even in bright outdoor environments.

Key Technical Specifications

The ZX-BZK tester’s robust technical indicators underscore its reliability and suitability for industrial applications:

Industry Impact & Application Value

In the power sector, timely and accurate transformer health assessments are vital to preventing unplanned outages and equipment failures. The ZX-BZK tester addresses key pain points in on-site testing: its compact, lightweight design simplifies transportation to remote substations, while its adjustable power output and multi-parameter testing capabilities make it suitable for high-voltage main transformers. By delivering reliable short-circuit impedance data, the device empowers grid operators to make informed decisions about transformer maintenance, reducing operational risks and extending equipment lifespan.

Conclusion

The ZX-BZK Transformer Short-Circuit Impedance Tester combines precision, portability, and user-friendly design to meet the evolving needs of power grid maintenance. As a specialized tool for winding deformation detection, it plays a crucial role in enhancing transformer safety and grid reliability, making it an essential asset for power utilities and maintenance teams worldwide.
