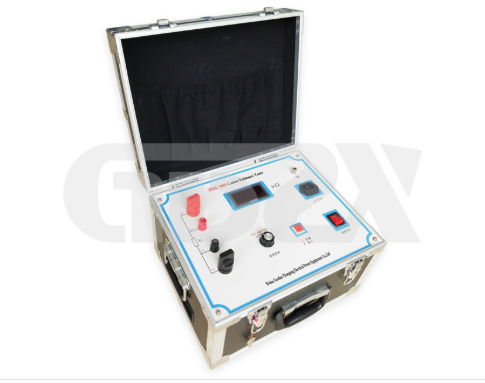

ZXHL-300A: Precision Contact Resistance Tester for HV Switchgear

Introduction

In power system operations, the reliable performance of high-voltage switching control equipment is critical to maintaining grid stability and safety. Contact resistance, a key parameter reflecting the electrical integrity of switch contacts, directly impacts the equipment’s ability to carry rated current and withstand fault conditions. High contact resistance, often caused by oxide films, mechanical wear, or improper assembly, can lead to excessive heat generation, voltage drops, and even catastrophic failures such as switch burnout. The ZXHL-300A Contact Resistance Tester addresses these challenges with advanced technology tailored to meet the stringent requirements of both factory acceptance testing and on-site maintenance.

Core Design and Operational Principle

The ZXHL-300A leverages two foundational technologies to deliver reliable results: high-frequency switching power supply technology and digital circuit technology. This combination eliminates the limitations of traditional impulse-type testers, which rely on short-duration current pulses that often fail to break through insulating oxide films on contact surfaces.

Instead, the tester uses a sustainable constant current source to output a stable DC test current (customizable to 100A, 200A, or 300A). This continuous current effectively penetrates oxide layers, ensuring accurate measurement of the true contact resistance. The digital circuit architecture further enhances performance by providing high-precision signal processing, resulting in a measurement resolution of 1μΩ and an overall accuracy of 0.50%.

Key Features and Advantages

The ZXHL-300A is engineered with features that prioritize accuracy, stability, and usability for power system technicians:

Large Continuous Current Capability: The constant current output eliminates the inaccuracies of impulse-type testers, ensuring reliable readings even on contacts with significant oxidation. This is critical for both factory testing and on-site maintenance, where contact conditions can vary widely.

High Stability Under Interference: In high-voltage environments with strong electromagnetic interference, the tester maintains stable readings with a display fluctuation of ±1 digit. This high reproducibility ensures consistent results across multiple tests, reducing the risk of false diagnoses.

Long-Term Reliability: Precision resistors are integrated into the design to minimize the impact of ambient temperature variations, ensuring consistent performance across the service temperature range of -10°C to 40°C.

Compact and Portable Design: With dimensions of 380×350×260mm and a weight of just 12kg (excluding accessories), the tester is lightweight and easy to transport, making it ideal for field maintenance tasks.

Flexible Configuration: Users can opt for an optional built-in printer to generate hard copies of test reports, streamlining documentation and compliance with power system maintenance standards.

Technical Specifications

Application in Power System Maintenance

The ZXHL-300A is designed to support two critical use cases in power systems:

Factory Acceptance Testing: During switchgear manufacturing, the tester verifies that contact resistance meets design specifications before equipment is deployed, ensuring quality control at the production stage.

On-Site Maintenance: Periodic testing of installed high-voltage switches allows technicians to identify rising contact resistance early, preventing unexpected outages and extending equipment service life.

By delivering accurate, stable, and repeatable results, the ZXHL-300A helps power utilities maintain the reliability of their high-voltage infrastructure, reducing maintenance costs and minimizing downtime.

Conclusion

The ZXHL-300A Contact Resistance Tester represents a robust solution for contact resistance measurement in high-voltage switching equipment. Its combination of continuous current technology, high precision, and user-friendly design addresses the key challenges faced by power system technicians, ensuring that switchgear operates safely and efficiently throughout its lifecycle. For both factory testing and field maintenance, the ZXHL-300A is a reliable tool that meets the rigorous demands of modern power systems.
