Application Analysis of 600A Contact Resistance Tester for High-Voltage Switchgear Maintenance and Factory Inspection

Abstract

Contact resistance is a core performance index to evaluate the contact status of high-voltage switching control equipment. Excessive contact resistance will cause abnormal temperature rise, local overheating, and even trigger power grid safety accidents during the operation of power systems. The ZXHL-600A contact resistance tester, adopting high-frequency switching power supply and digital circuit technologies, provides reliable high-precision resistance measurement solutions for both factory delivery inspection and on-site maintenance of high-voltage switches. This paper systematically introduces its working principles, core functional advantages and complete technical parameters, to provide practical technical reference for power testing engineers.

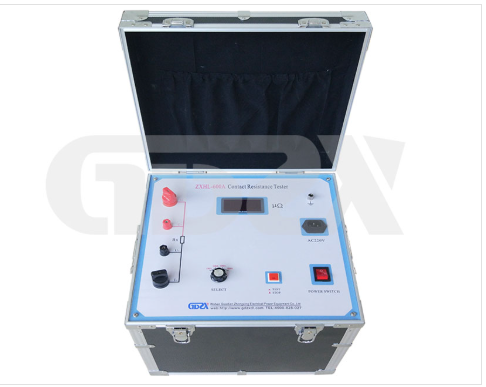

1. Working Principle & Design Orientation of ZXHL-600A Tester

The ZXHL series contact resistance tester is specially developed for contact resistance detection of all types of switching control equipment in power systems. Its core hardware architecture combines mature high-frequency switching power supply technology and digital signal processing circuits.

Different from impulse power test equipment that only outputs instantaneous current, this tester uses a constant current source to continuously output DC test current. The sustained large DC current can thoroughly break the oxide film formed on the surface of switch contacts, which is the key to eliminating measurement errors caused by contact oxidation and obtaining true and accurate contact resistance values.

The product design covers two major application scenarios of the power industry: factory offline measurement of finished high-voltage switches and routine on-site maintenance testing of operating high-voltage switches, fully matching the detection standards and testing demands of most power grids.

2. Core Technical Features

2.1 Continuous Large Constant Current Output

DC test current options include 100A, 200A, 400A and 600A for customized selection. The stable sustained current effectively strips contact oxide layers, fundamentally solving the measurement deviation problem of pulse-type testing instruments.

2.2 Excellent Anti-Interference Performance & Stable Reading

The digital circuit design delivers outstanding measurement stability under strong electromagnetic interference from power sites. The last digit of the LCD display fluctuates within ±1, featuring stable readings and superior test reproducibility, which guarantees consistent test data during repeated sampling of the same switch contact.

2.3 Long Service Life with Temperature Compensation

High-precision temperature-resistant resistors are integrated inside the equipment to offset the resistance drift caused by ambient temperature changes. The built-in temperature compensation structure minimizes the impact of environmental temperature fluctuations on test accuracy, extending the instrument’s service life while maintaining long-term measurement precision.

2.4 Portable Structure & Flexible Configuration

The overall machine features compact volume and light weight relative to same-class high-current resistance testers, reducing handling burdens for field maintenance crews. Users can select models with or without built-in thermal printers as required, realizing on-site real-time data printing and record filing without additional peripheral devices.

3. Complete Technical Specifications

This section sorts out all critical technical indicators of the ZXHL-600A model for engineers’ quick parameter checking:

Measurement Range: 1 ~ 1999.9μΩ

Minimum Resolution: 1μΩ

Optional Test DC Current: 100A, 200A, 400A, 600A

Basic Measurement Accuracy: 0.50%

Rated Continuous Working Duration by Current Gear:

100A gear: 600 seconds

200A gear: 60 seconds

400A gear: 10 seconds

600A gear: 10 seconds

Display Module: 3½ digit LED screen

Input Power Supply: AC220V±10%, 50Hz

Service Environmental Conditions:

Ambient temperature: -10℃ ~ 40℃

Relative Humidity: ≤80%RH (non-condensing)

Overall Dimension: 350×350×510 mm

Net Weight: 30kg (accessories excluded)

4. Engineering Application Value in Power Industry

In power equipment manufacturing plants, the ZXHL-600A tester serves as mandatory inspection equipment for finished high-voltage switches. Manufacturers can use the maximum 600A DC constant current to simulate actual operating current conditions of switch contacts, screening out unqualified products with defective contact assembly or poor conductive surfaces before factory delivery.

For power grid operation and maintenance teams, the instrument is applicable to regular maintenance of circuit breakers, isolating switches and load switches in transformer substations. By measuring contact resistance, maintenance staff can quickly judge contact ablation, loose wiring and contact aging hidden dangers, formulate targeted maintenance plans, and effectively avoid power outages and equipment damage induced by overheated switch contacts.

In addition, its strong anti-interference performance adapts to complex electromagnetic environments of high-voltage switch yards, and the optional built-in printing function helps maintenance personnel automatically generate standardized test reports, simplifying the whole process of on-site testing, data recording and archiving.

5. Conclusion

Contact resistance measurement is an indispensable link in the full life cycle quality control of high-voltage switching equipment. Benefiting from constant large current output, high measurement stability, temperature compensation design and flexible configuration, the ZXHL-600A contact resistance tester meets dual demands of factory inspection and substation on-site maintenance. Its complete set of technical indicators and reliable field performance make it a mainstream testing instrument for power industry technical personnel to evaluate the conductive state of high-voltage switch contacts, possessing high popularization and application value in power manufacturing and power grid maintenance fields.
