ZXAS-1000A DC Breaker Test Instrument Application Analysis

Abstract

DC circuit breakers serve as core protective components in DC power distribution, new energy storage and traction power supply systems. Their overload, short-circuit tripping performance directly determines the safety and stability of the whole power grid. Traditional breaker detection equipment exists defects including poor current adjustment accuracy, limited data recording and inconvenient data post-processing. This paper introduces the ZXAS-1000A DC Circuit Breaker Tester, elaborates its structural features, core working principles and technical parameters, analyzes its engineering application advantages in DC breaker routine inspection and type test, to provide practical reference for field power test technicians.

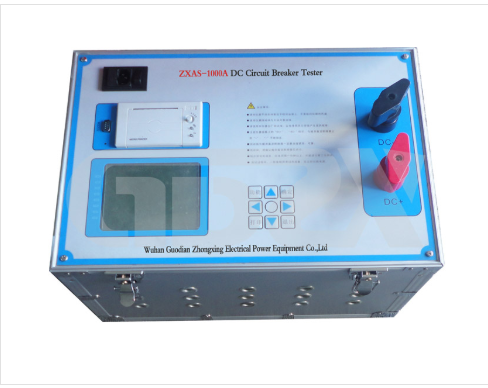

1. Core Product Overview of ZXAS-1000A DC Circuit Breaker Tester

The ZXAS-1000A tester is professionally customized for performance verification of DC breakers with rated working current ranging from 1A to 1000A. It adopts advanced power electronic regulation architecture to realize continuous adjustable large test current output, which covers full-scale rated current detection requirement of mainstream low-voltage DC circuit breakers in power industry. The equipment supports two independent working modes: standalone on-site testing and PC upper-computer linkage control, satisfying diversified test scenarios from field emergency maintenance to laboratory standardized type test.

2. Key Functional Characteristics of the Test Instrument

2.1 Human-computer Interaction & Data Storage Configuration

Equipped with 320×240 resolution industrial LCD display, built-in thermal printer and physical interactive keyboard matching intelligent embedded operating system, the tester completes parameter setting, real-time data observation and on-site test report printing without external auxiliary equipment. Its built-in large-capacity storage module can automatically preserve up to 200 groups of complete test data, and adopts power-off nonvolatile storage technology to avoid historical data loss caused by unexpected power failure during field test.

2.2 High-precision Current Sampling & Regulation Technology

Multiple high-precision current sensors are configured inside the equipment to finish automatic range switching in the full 0~1000A test current span. Combined with 14-bit high-performance AD acquisition chip, the system realizes high-speed, high-precision real-time sampling of output current. Benefiting from power electronic closed-loop control algorithm, the output current supports stepless continuous fine adjustment, which fundamentally solves the step adjustment error problem of conventional analog current source test devices.

2.3 Dual Test Mode Selection

The instrument integrates two mainstream test functions for DC breakers: ampere-second characteristic test and instantaneous through-current characteristic test. The ampere-second test is used to measure inverse-time delay tripping curve under overload rated current, while through-current test targets instantaneous short-circuit breaking performance. It can complete full-item routine performance inspection of molded-case DC breakers, miniature DC breakers and DC protection air switches for energy storage cabinet.

2.4 PC Linkage Post-processing Function

When connected with industrial PC via dedicated communication interface, technicians can remotely complete equipment parameter control, real-time test data import, file archiving, automatic test report generation and characteristic curve plotting. Digitalized test archives replace traditional manual record and hand-drawn curve, greatly improving test result traceability and data analysis efficiency for laboratory type approval test.

2.5 Safety Protection & Electromagnetic Compatibility Design

Three-layer hardware protection circuit against overheating, overcurrent and overvoltage is embedded in power loop. Once abnormal working conditions occur in test load or internal circuit, the tester cuts off output current instantly to prevent equipment burnout and test sample damage. Besides, optimized EMC electromagnetic compatibility layout enhances anti-interference ability of the tester, enabling stable operation under complex electromagnetic environment of power substation, power distribution room and new energy station.

3. Main Technical Specification Index

Input Power Supply: AC220V±10%, 50Hz±0.5Hz, matching conventional industrial power supply configuration of domestic and overseas power test workshops.

Rated Test Current Scope: Continuous adjustable from 0A to 1000A, covering most civil and industrial low-voltage DC breaker specifications.

Current Quality Index: Output current ripple coefficient less than 5%, current output stability better than ±0.5%, guarantee test data repeatability and accuracy.

Timing Parameter: Timing range 0~9999s, minimum time resolution up to 0.001s, which can capture ultra-short instantaneous tripping action time of short-circuit protection.

Ambient Adaptability: Normal working temperature range -20℃~+50℃, adapting high-temperature outdoor field test and low-temperature northern substation maintenance environment.

Physical Parameter: Overall dimension 470×320×460mm, net weight 35kg, convenient for short-distance carrying between test sites.

4. Practical Application Value in Power Industry

In power grid daily maintenance, power supply enterprises utilize this tester to carry out periodic sampling inspection for DC breakers installed in DC screen, communication power cabinet and photovoltaic energy storage converter cabinet; in equipment manufacturing factory’s type test workshop, technicians rely on its PC curve drawing function to finish batch development verification of new-type DC protection switches. Compared with discrete multi-set traditional test equipment, the integrated ZXAS-1000A effectively shortens test preparation time by more than 40%, and reduces human error brought by manual reading and recording.

Conclusion

As an integrated high-precision dedicated test equipment for DC circuit breaker industry, ZXAS-1000A combines power electronic control, high-speed data acquisition and digital intelligent management technology. Its complete functional configuration and strict technical indicators make it an ideal testing tool for power maintenance technicians and electrical equipment R&D engineers. With the rapid expansion of new energy DC power system, this kind of intelligent DC breaker tester will gain wider application prospect in power equipment inspection field.
