Performance Analysis of ZXAS-500A DC Breaker Tester
Introduction
DC circuit breakers are core protective components in new energy power stations, DC power distribution systems, energy storage power supplies and rail transit power supply networks. Their overcurrent tripping characteristics directly determine the safety of the entire DC power system. To accurately verify the operating performance of DC breakers with rated current from 1A to 500A, the ZXAS-500A DC Circuit Breaker Tester is developed as a dedicated high-current test instrument for power testing laboratories and on-site power maintenance teams. This paper systematically elaborates its core functional features, technical parameters, test application modes and electromagnetic compatibility design, providing technical references for power testing engineers engaged in DC circuit breaker performance calibration.
1. Core Functional Features of ZXAS-500A Tester
The ZXAS-500A tester adopts modular power electronic control architecture, supporting standalone local operation and PC remote linkage control, which adapts to both field rapid detection and laboratory standardized batch testing scenarios. Its key functional highlights are detailed as follows:

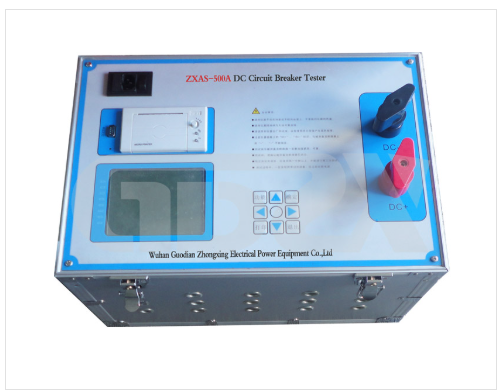

Human-Machine Interaction Hardware Configuration The device is equipped with a 320×240 resolution LCD display, a built-in thermal printer and a physical interactive keyboard, matched with an embedded intelligent operating system. Test curves, real-time current values and tripping time data can be displayed visually, and test reports can be printed on-site without external auxiliary equipment.
High Precision Continuous Current Output Technology Advanced power electronic regulation technology is integrated to realize high-current output with ultra-fast response speed, high current control accuracy and stepless continuous adjustment. Multiple high-precision current sensors are embedded inside, enabling automatic range switching during testing. Combined with a 14-bit high-capacity AD acquisition chip, the tester achieves high-resolution real-time sampling of test current signals, effectively eliminating current sampling errors caused by manual range adjustment.
Complete Data Storage and Two Test Modes Automatic non-volatile data storage is supported, with built-in storage space for up to 200 groups of historical test data. All stored test records will not be lost after sudden power failure, facilitating engineers to review historical test results for data comparison. Two standardized DC breaker test modes are pre-installed in the system: ampere-second characteristic test and through-current characteristic test, covering the two most essential performance calibration items of DC circuit breakers.
PC Remote Control and Data Post-Processing Function When connected to an industrial personal computer via a dedicated communication cable, engineers can realize full remote control of the tester through supporting upper computer software. The software integrates multi-dimensional data processing modules: real-time test data import, automatic test data archiving, standardized test report generation and visual test curve plotting, which greatly improves the data sorting efficiency of laboratory batch testing tasks.
Multi-Layer Safety Protection and EMC Optimization Design Three core hardware protection circuits are reserved inside the machine: overheat protection, overcurrent protection and overvoltage protection. Once the tester exceeds the rated working temperature, output current or working voltage threshold during operation, the internal control circuit will immediately cut off the high-current output to protect both the test instrument and the tested DC breaker. Besides, the whole machine undergoes anti-interference circuit optimization, with excellent electromagnetic compatibility (EMC), which can maintain stable test accuracy under complex on-site power electromagnetic interference environments such as converter stations and energy storage power plants.
2. Key Technical Indicators and Performance Advantages
All technical indicators of the ZXAS-500A DC Circuit Breaker Tester comply with the detection standards for DC protective electrical appliances in the power industry. The critical technical specifications and their engineering values are analyzed below:
表格
Parameter Item | Technical Index | Practical Engineering Value |
Input Power Supply | AC220V±10%, 50Hz±0.5Hz | Adapt to conventional industrial and laboratory single-phase AC power supply, no special power transformation equipment required |
Test Current Output Range | 0–500A | Fully cover DC breakers with rated current of 1A–500A, applicable to energy storage, photovoltaic, DC distribution and other multi-scene breaker detection |
Current Ripple Coefficient | Less than 5% | Low ripple DC output ensures that the test current is close to the actual DC operating current of the power system, avoiding distortion of breaker tripping characteristic curves caused by alternating current components |
Output Current Stability | ≤0.5% | Long-term constant current output without obvious drift, guarantee repeatability of test data in multiple repeated calibration experiments |
Test Timing Range & Resolution | Timing range: 0–9999s; Minimum time resolution: 0.001s | Capture ultra-short instantaneous tripping signals of DC breakers under large short-circuit current, accurately record ampere-second characteristic data points |
Working Ambient Temperature | -20℃ ~ 50℃ | Adapt to low-temperature outdoor power station field maintenance and high-temperature indoor laboratory long-time continuous test |
Overall Dimension & Weight | 470×320×460mm, 25kg | Moderate volume and weight, convenient for short-distance transportation between test sites and laboratories, without the need for large-scale handling equipment |
3. Application Scenarios in Power Industry
In the current rapid development of new energy DC power systems, DC circuit breakers undertake the fault isolation task of DC loops. The ZXAS-500A tester fills the demand gap of high-precision full-range DC breaker detection equipment in the power industry, with mature application scenarios including:
R&D performance verification of DC circuit breaker manufacturers;
Regular calibration and routine maintenance of DC breakers in energy storage power stations and photovoltaic power stations;
Acceptance testing of DC power distribution cabinet equipment in power grid distribution stations;
On-site fault diagnosis of DC protective switches for rail transit and communication backup power supplies.
Engineers can select standalone operation mode for rapid on-site fault screening, and switch to PC linkage mode when carrying out standardized batch testing and data archiving in laboratories, realizing flexible switching of test modes according to work requirements.
4. Conclusion
As a dedicated high-current test equipment for DC circuit breakers, the ZXAS-500A DC Circuit Breaker Tester integrates high-precision power electronic control technology, complete data processing functions, multi-dimensional safety protection and excellent electromagnetic compatibility performance. Its full-range 0–500A adjustable DC output and dual test modes fully meet the performance detection demands of mainstream DC breakers in the power industry. For power testing technical personnel, this instrument can effectively improve the accuracy and efficiency of DC breaker characteristic calibration, and provide reliable data support for the safe operation of various DC power systems. In the context of the continuous expansion of new energy DC power grids, this type of high-precision dedicated DC test equipment will become an essential standard configuration for power testing institutions and new energy operation and maintenance teams.
