VI Vacuum Degree Detection via Electromagnetic Discharge

Introduction

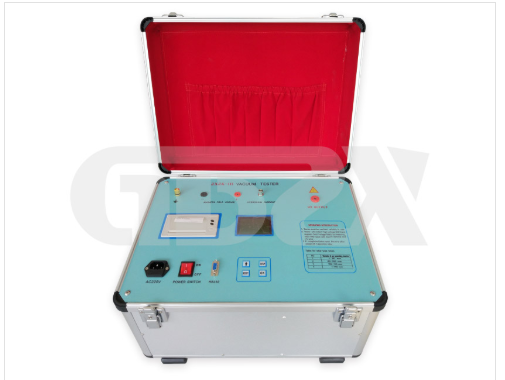

Vacuum circuit breakers are core switching equipment widely applied in medium-voltage power distribution systems, whose operational safety heavily depends on the internal vacuum degree of vacuum interrupters. Once the vacuum inside the arc extinguishing chamber degrades beyond the qualified threshold, the vacuum switch will lose arc-quenching capacity, triggering serious accidents like breakdown, short-circuit and equipment burnout in power grids. Conventional detection solutions often require disassembly of switch components for inspection, consuming excessive maintenance time and raising outage costs. The ZXZK-III vacuum switch vacuum degree tester adopts mature electromagnetic discharge detection principle to achieve on-site non-dismantling quantitative vacuum testing, becoming an essential diagnostic instrument for power equipment routine maintenance.

Working Principle Overview

The ZXZK-III tester relies on the electromagnetic discharge measuring methodology as its core detection theory. The device applies preset high electric field voltage and excitation magnetic field voltage to the tested vacuum interrupter; under the combined effect of alternating electric field and magnetic field, residual trace gas inside the vacuum bubble generates specific discharge phenomena. By collecting discharge characteristic signals, the instrument converts acquired electrical signals into corresponding vacuum pressure values, which directly reflects the internal tightness and vacuum attenuation status of the vacuum switch. Different from destructive sampling detection, this non-intrusive measuring mode protects the structural integrity of tested vacuum interrupters fundamentally.

Core Technical Advantages of ZXZK-III Tester

Non-dismantling On-site Measurement: The prominent feature of this testing equipment is eliminating the disassembly requirement of vacuum switches during field inspection. Maintenance technicians can complete vacuum diagnosis directly on installed in-service circuit breakers, drastically cutting power outage duration and reducing labor workload for power station and distribution network maintenance work.

High-precision Quantitative Detection: Supporting quantitative vacuum measurement ranging from 10−4Pa to 10−1Pa with measurement accuracy controlled within ±5%, the equipment realizes stable and repeatable test results. Excellent testing stability guarantees consistent measured data under complex on-site power environment interference.

Humanized Man-machine Interaction: Equipped with industrial LCD display and streamlined menu operating system, the tester simplifies parameter setup and data reading steps. Field engineers can master operational flow rapidly without long-term specialized training, improving field detection efficiency.

Detailed Technical Specifications Analysis

From the perspective of practical field application, the complete technical indicators of ZXZK-III define its applicable scenarios in power industry maintenance:

Power Configuration: Rated working power is AC220V±15%, 50Hz, matching conventional industrial and substation power supply specifications in domestic power systems, convenient for deployment in all types of distribution rooms and switchgears.

Excitation Parameters: Configured with 20kV electric field voltage and 1600V magnetic field excitation voltage, the parameter design is calibrated for mainstream 10kV~35kV vacuum interrupter products in current power equipment market, covering most commonly-used medium-voltage vacuum switches.

Environmental Adaptability: Normal working temperature range from -10℃ to 40℃ adapts to seasonal temperature changes of outdoor and indoor power stations in most regions, satisfying all-year-round on-site detection demands.

Structure Parameter: Dimension of 460×335×330mm and total net weight of 12kg endow the tester moderate portability, balancing structural rigidity for internal high-voltage components and mobile testing requirements.

Application Value in Power Equipment Condition-based Maintenance

The measured vacuum data obtained by ZXZK-III can quantitatively assess the operational health status and residual service life of vacuum interrupters. Maintenance departments can formulate targeted equipment replacement and overhaul plans based on test values: for vacuum components with slight vacuum drop, arrange regular follow-up retesting; for products exceeding the critical vacuum threshold, implement early replacement before failure occurs. This predictive maintenance mode shifts power equipment management from traditional periodic overhaul to status-based maintenance, lowering unnecessary spare parts replacement cost and enhancing the overall reliability of power supply networks.

Conclusion

Electromagnetic discharge-based vacuum degree testing technology represented by ZXZK-III provides a mature, economical technical path for condition monitoring of vacuum switching apparatus. As the power grid continues to advance intelligent and predictive maintenance construction, non-dismantling quantitative vacuum detection instruments will become standard configuration for power equipment testing departments, promoting the refined management level of medium-voltage vacuum circuit breaker assets in the whole power industry.
