ZXKC-HB: A Comprehensive Circuit Breaker Dynamic Testing Solution

1. Introduction

The reliability of high-voltage circuit breakers is critical to the safety and stability of power grids. As circuit breakers age or operate under varying conditions, their mechanical and electrical performance can degrade, potentially leading to catastrophic failures. The ZXKC-HB Circuit Breaker Dynamic Analyzer is purpose-built to address this challenge, providing comprehensive testing of dynamic characteristics for a wide range of high-voltage switches, including oil, vacuum, and sulfur hexafluoride (SF₆) types. Designed for field deployment, this instrument combines robust hardware, user-friendly operation, and advanced analytics to support routine maintenance, commissioning, and fault diagnosis.

2. Core Hardware & User Interface

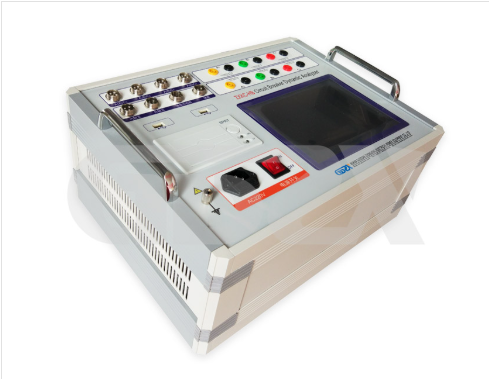

At the heart of the ZXKC-HB is an 8.4-inch color touchscreen display running a Windows operating system, offering an intuitive, human-machine interface (HMI) for on-site operation. This setup eliminates the need for complex external peripherals, allowing technicians to configure tests, view real-time data, and generate reports directly from the device.

Key hardware features include:

Integrated Operational Power Supply: A built-in DC power source adjustable from 20–265V (35–265V for disconnect switch testing) with a 20A continuous output, eliminating the need for secondary power supplies in the field. This enables low-voltage operation tests of breaker closing/opening coils, with customizable voltage setpoints to simulate real-world conditions.

High-Speed Thermal Printer: Enables on-site printing of test results for immediate documentation, a critical feature for compliance and post-test analysis.

Versatile Sensor Compatibility: The analyzer supports linear, rotation, and universal sensors with dedicated mounting fixtures, simplifying installation on different breaker designs. Supported sensors include:

Linear sensors (50mm range, 0.1mm resolution) for stroke measurement

Wire sensors (360° range, 0.5° resolution) for angular motion

Optional 300mm/1000mm linear sensors and acceleration sensors for specialized applications

3. Comprehensive Measurement Capabilities

The ZXKC-HB excels at capturing the full spectrum of circuit breaker dynamic behavior, with technical specifications tailored to meet the demands of modern power systems:

表格

The analyzer can simultaneously monitor up to 12 metal contacts, providing a complete picture of multi-phase breaker performance. A single on-off operation captures all relevant data and graphical outputs, streamlining testing workflows.

4. Data Management & Analysis

The ZXKC-HB is equipped with robust data handling capabilities to support post-test evaluation and long-term trend analysis:

On-Board Storage: The main unit stores up to 6,000 test datasets, with support for external memory cards for expanded capacity. An internal real-time clock ensures accurate timestamping of all measurements.

USB Connectivity: Test data can be exported directly to a USB drive for transfer to a computer, where it can be archived, analyzed, or shared with engineering teams.

Advanced Analytics: The instrument can generate standard envelope curves using test data from 2–10 different instruments, enabling comparative analysis of breaker performance over time or across units. Vibration frequency analysis further supports fault detection by identifying abnormal mechanical behavior.

5. Environmental & Operational Resilience

Designed for use in challenging substation environments, the ZXKC-HB includes several features to ensure reliable performance:

Anti-Jamming Circuitry: Built-in noise suppression allows the device to operate reliably in 500kV transformer substations, where electromagnetic interference (EMI) is prevalent.

Environmental Ratings: Operating temperature range of -10°C to +50°C, with a relative humidity tolerance of ≤90%, making it suitable for use in diverse climates.

Compact Form Factor: Host dimensions of 380×280×170mm ensure the analyzer is portable and easy to transport between sites.

6. Application & Value in Power Systems

The ZXKC-HB supports a wide range of circuit breakers, including SF₆ switches, GIS composite apparatus, vacuum switches, and oil switches from both domestic and international manufacturers. By providing precise, repeatable measurements of key parameters like contact timing, velocity, and stroke, the analyzer enables technicians to:

Verify compliance with manufacturer specifications during commissioning

Identify wear, misalignment, or degradation in aging breakers before they fail

Optimize maintenance schedules based on actual performance data

Troubleshoot abnormal breaker behavior, such as excessive bounce or slow operation

7. Conclusion

The ZXKC-HB Circuit Breaker Dynamic Analyzer represents a comprehensive solution for high-voltage switchgear testing, combining robust hardware, user-friendly operation, and advanced analytics to meet the evolving needs of power system maintenance teams. By delivering accurate, actionable data on breaker performance, the instrument plays a critical role in enhancing grid reliability, reducing unplanned outages, and extending the service life of high-voltage equipment.

 GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
