Technical Analysis of ZXKC-H HV Circuit Breaker Dynamic Tester

Abstract

High-voltage switchgear serves as core control and protection equipment within power grid substations and transmission systems. The operational dynamic parameters of circuit breakers directly determine power system safety and operational reliability. Conventional detection tools suffer from inconvenient field deployment, incomplete measurement parameters and poor anti-interference performance. This paper focuses on the ZXKC-H high voltage switch dynamic characteristics tester, elaborates its structural configuration, core functional features and full-range technical indicators, provides technical reference for field maintenance, type test and routine inspection of high-voltage switches for power industry technicians.

1. Product Overview of ZXKC-H Tester

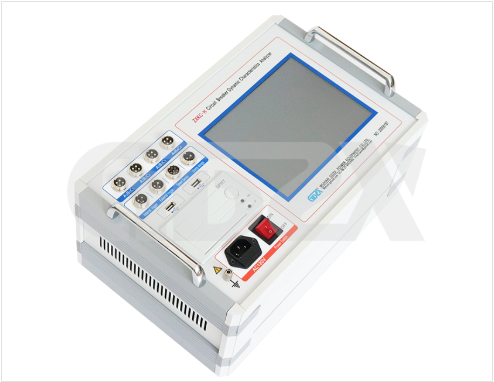

ZXKC-H high voltage switch dynamic characteristics tester is a professional dedicated testing instrument independently developed for dynamic parameter detection of multi-type high-voltage switching devices, applicable for oil circuit breakers, vacuum circuit breakers, SF₆ gas-insulated switches as well as GIS combined electrical equipment produced domestically and overseas. Adopting Windows embedded operating system paired with an 8.4-inch LED color touch screen, the device realizes humanized visualized man-machine interaction. Its compact mainframe dimension of 360×260×170 mm enables portable on-site transportation and commissioning under complex substation environments, with adaptable working ambient temperature ranging from -20℃ to +50℃ and relative humidity below 90%, meeting harsh field test conditions of power distribution sites.

2. Core Functional Features

2.1 Human-Machine Interaction & On-Site Data Output

Equipped with high-speed thermal printer, the tester can directly print original test reports on-site after measurement completion. Built-in real-time clock module supports standardized data archiving; the main control unit has a storage capacity for 6,000 groups of test data, expandable via external storage cards and USB flash disk. Test raw data can be exported via USB interface to desktop computers for secondary data analysis, curve arrangement and long-term data preservation, greatly optimizing field test data management workflow.

2.2 Integrated Adjustable DC Operating Power Supply

A built-in adjustable DC driving power supply is integrated inside the instrument, eliminating dependence on external auxiliary power source during field testing. Its output voltage continuously ranges DC20~260V with peak output current up to 30A, which allows arbitrary setup of opening/closing coil rated voltage values of breakers to conduct low-voltage closing/opening characteristic tests in accordance with national standard specifications for high voltage switches. The output current duration is configurable from 0.01s to 20s to match different electromagnetic operating mechanisms of various circuit breakers.

2.3 Diversified Matching Sensors & Multi-Channel Measurement

The complete sensor configuration includes linear displacement sensors, rotary angle sensors and universal inductive sensors with matched fixed mounting brackets, facilitating rapid installation on different types of moving contact transmission structures of circuit breakers. Supporting synchronous measurement of 12 groups of metallic contacts simultaneously, the tester finishes full acquisition of time-stroke-velocity original data and automatic curve plotting with only a single opening-closing operation of tested switch, improving field testing efficiency significantly.

2.4 Advanced Data Analysis & Anti-Interference Design

Beyond conventional parameter calculation, the instrument automatically generates standard envelope characteristic curves from measured data, realizing transverse comparison analysis of multi-group switch test results and breaker mechanical vibration spectrum analysis. The internal anti-jamming circuit is optimized to resist strong electromagnetic interference, stably operating in 500kV ultra-high voltage transformer substations under intense electromagnetic field environments, which solves the measurement distortion problem of traditional testers under high-voltage live surroundings.

3. Detailed Technical Specifications

3.1 Time Measurement Index

The time test module covers 12 channels for breaker contact monitoring, with total testing scope from 0.01ms to 10000ms and basic precision of 0.5%±1 digit. Measurable time parameters include fixed opening/closing operation time, inter-phase and intra-phase asynchronous closing/opening divergence, as well as contact bounce duration and bounce frequency of each moving contact, which are core judgment criteria for mechanical performance qualification of high voltage switches. For disconnecting switch measurement, the maximum acquisition duration of contact switching signals extends to 200s to adapt slow-action isolating switch mechanical action characteristics.

3.2 Velocity & Stroke Measurement Parameters

Three types of supporting sensors correspond to independent velocity measuring ranges:

1mm-range linear sensor: 0.01~25.00m/s;

0.1mm high-precision linear sensor: 0.001~2.50m/s;

360° rotary angle sensor: 0.01~25.00m/s. The system calculates instantaneous opening/closing velocity and average velocity of arbitrary customized stroke/angle intervals. Stroke measurement items consist of total moving contact travel, effective contact closing stroke, overtravel and rebound retravel; linear sensor measuring travel is 0~50mm with 0.1mm resolution, rotary angle sensor covers full 360° with 0.1° resolution, acceleration-type sensor supports 0~300mm stroke detection.

3.3 Power Supply Specifications

Instrument working power: AC/DC 220V±10%, 50Hz±2% for mainframe operation;

Built-in adjustable DC drive power: DC20~260V continuous regulation, transient output current: ≤30A@DC110V, ≤20A@DC220V; external trigger input supports AC/DC10~300V with input current ≤120A.

4. Application Value in Power Industry

In power system daily maintenance, factory type-test and incoming inspection of new high-voltage switches, ZXKC-H tester integrates multi-dimensional parameter testing functions in a single portable device, replacing multiple single-function traditional testing instruments. Its all-component parameter acquisition capability covers the full technical inspection requirements of vacuum, oil-filled and SF₆ circuit breakers. For power technology engineers, mastering the application principle and index configuration of this equipment helps accurately judge mechanical hidden faults such as contact jamming, coil performance degradation and transmission mechanism abrasion of high-voltage switches, reducing sudden power failure risks caused by abnormal breaker operation in power grids.

Conclusion

With integrated design of adjustable driving power, multi-sensor compatibility, rich post-data analysis and high-level electromagnetic anti-interference performance, ZXKC-H high voltage switch dynamic characteristic tester conforms to current development trend of portable, high-precision and intelligent testing equipment for power high-voltage industry. It provides reliable measuring support for full-lifecycle performance monitoring of high voltage switching equipment and is worthy of popularization and technical study for front-line power testing and maintenance technicians.
