ZXKC-HC: Advanced Dynamic Testing for High-Voltage Circuit Breakers
Introduction
High-voltage circuit breakers are the most critical protective devices in power transmission and distribution networks, tasked with interrupting fault currents within milliseconds to prevent cascading failures and protect equipment and personnel. Their dynamic mechanical characteristics—including opening/closing timing, contact velocity, stroke profile, and bounce behavior—directly determine their interrupting capability and long-term reliability. Conventional testing methods often require multiple instruments, complex wiring, and time-consuming data post-processing, leading to inefficiencies and potential errors in field operations. This technical paper presents the ZXKC-HC Circuit Breaker Dynamic Analyzer, a specialized, all-in-one instrument designed to deliver accurate, comprehensive, and efficient dynamic performance testing for all types of high-voltage switches.

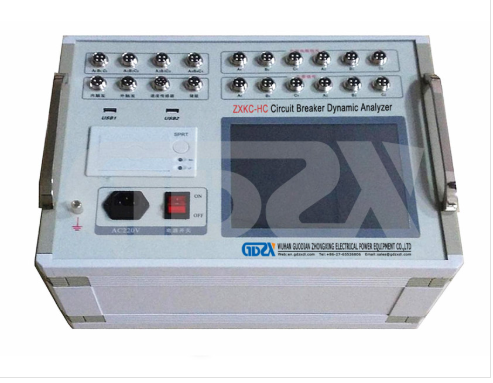

Product Overview
The ZXKC-HC is purpose-engineered to evaluate the dynamic characteristics of oil-immersed switches, vacuum switches, and sulfur hexafluoride (SF₆) switches, including gas-insulated switchgear (GIS) composite apparatus manufactured by both domestic and international suppliers. It features an 8.4-inch color LED touchscreen display running a Windows operating system, providing a humanized, visualized interface that minimizes training requirements and enables intuitive operation in harsh field environments. This integrated design consolidates power supply, measurement, data acquisition, analysis, and reporting capabilities into a single compact unit, streamlining the entire testing workflow.
Core Functional Capabilities
Integrated Power Supply and Low-Voltage Operation Testing
A defining feature of the ZXKC-HC is its built-in adjustable DC operational power supply, which eliminates the need for external secondary power sources at test sites. The power supply delivers a continuously adjustable output of 35–265V DC with a maximum short-time current of 20A, allowing technicians to precisely set the operating voltages for opening and closing coils. This capability enables low-voltage operation testing, a critical diagnostic procedure that verifies breaker performance under marginal power conditions and identifies potential mechanical binding or contact issues.
Comprehensive Data Acquisition and Advanced Analysis
The instrument captures complete dynamic data and generates detailed waveform graphs from a single on-off operation, drastically reducing testing time compared to traditional methods. It supports simultaneous measurement of up to 12 metal contacts, providing precise data on:
Fixed opening and closing times
Intra-phase and inter-phase asynchronism
Contact bounce duration and frequency
Moving contact velocity and acceleration profiles
Additionally, the ZXKC-HC can generate standard envelope curves from 2–10 consecutive test datasets, enabling comparative analysis to detect gradual degradation over time. It also performs switch vibration frequency analysis, a powerful tool for identifying hidden mechanical defects such as loose fasteners, worn bearings, or misaligned linkages.
Versatile Sensor Compatibility and Easy Installation
The analyzer is compatible with a full range of sensors, including linear displacement sensors, rotation sensors, and universal sensors, all equipped with dedicated fixed multifunction connectors for quick and secure mounting. This versatility allows it to adapt to virtually any circuit breaker design, from traditional oil breakers to modern GIS systems. The included sensor holders simplify installation, eliminating the need for custom fabrication and reducing setup time.
Robust Data Management and On-Site Reporting
The mainframe can store up to 6,000 groups of on-site test data, with support for external memory cards for unlimited expanded storage. An internal real-time clock provides accurate timestamping for all test records, ensuring complete traceability. A high-speed thermal printer is integrated for immediate on-site printing of test reports, eliminating delays in documentation. The instrument also features a USB interface, enabling direct data saving to USB drives and seamless transfer to desktop computers for advanced post-processing and long-term archival.
Electromagnetic Compatibility for High-Voltage Environments
The ZXKC-HC incorporates an advanced internal anti-jamming circuit design that ensures reliable operation in 500kV substations, where high levels of electromagnetic interference (EMI) are prevalent. This robust EMC performance guarantees accurate measurements even in the most challenging electrical environments, eliminating the need for additional shielding or isolation equipment.
Key Technical Specifications
The ZXKC-HC delivers industry-leading measurement accuracy and range across all critical parameters:
Parameter Category | Key Specifications |
Time Measurement | 12 channels (breakswitches), 6 channels (fixed separators/graphite switches); 0.01ms–18000ms range, 0.01ms resolution |
Resistance Measurement | 0–1300Ω range, 1Ω resolution, ±1% accuracy |
Velocity Measurement | 1mm linear sensor: 0.01–25.00m/s; 0.1mm linear sensor: 0.001–2.50m/s; 0.5° angle sensor: 1 cycle/0.5° |
Stroke Measurement | Moving contact stroke, contact opening stroke, overshoot/retrace stroke; Linear sensor: 50mm range, 0.1mm resolution; 360-wire rotation sensor: 360° range, 0.5° resolution |
Optional Sensors | 300mm linear, 1000mm linear, acceleration sensor |
Power Supply | AC/DC 220V ±10%, 50Hz ±2% |
DC Power Output | 35–265V DC continuously adjustable, ≤20A short-time current |
Disconnect Switch Test | Measures closing/opening time, three-phase asynchronism, bounce time/frequency; 0.01–20s current output time (settable) |
Physical Specifications | 380×280×170mm (L×W×H) |
Operating Environment | -10°C to +50°C temperature range, ≤90% relative humidity |
Field Application Advantages
The ZXKC-HC addresses the primary pain points faced by power system maintenance technicians during circuit breaker testing. Its all-in-one design eliminates the need to transport and set up multiple instruments, significantly reducing field preparation time. The intuitive touchscreen interface and Windows operating system allow technicians of varying skill levels to perform complex tests with minimal training.
By providing comprehensive, real-time dynamic data and advanced analysis tools, the ZXKC-HC enables proactive maintenance. Technicians can identify incipient faults—such as worn contacts, degraded springs, or misaligned operating mechanisms—before they lead to catastrophic failures. This predictive approach improves system reliability, reduces unplanned downtime, and lowers long-term maintenance costs.
Conclusion
The ZXKC-HC Circuit Breaker Dynamic Analyzer represents a significant advancement in high-voltage switch testing technology. Its combination of exceptional measurement accuracy, versatile sensor compatibility, integrated power supply, robust data management, and user-friendly design makes it an indispensable tool for power utilities, electrical maintenance teams, and circuit breaker manufacturers. By enabling precise, efficient, and comprehensive dynamic characterization of high-voltage circuit breakers, the ZXKC-HC plays a vital role in ensuring the safe, stable, and reliable operation of modern power systems.
